Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Diagrams (By Ground Number) >> G401 >> Wagons

Wagons

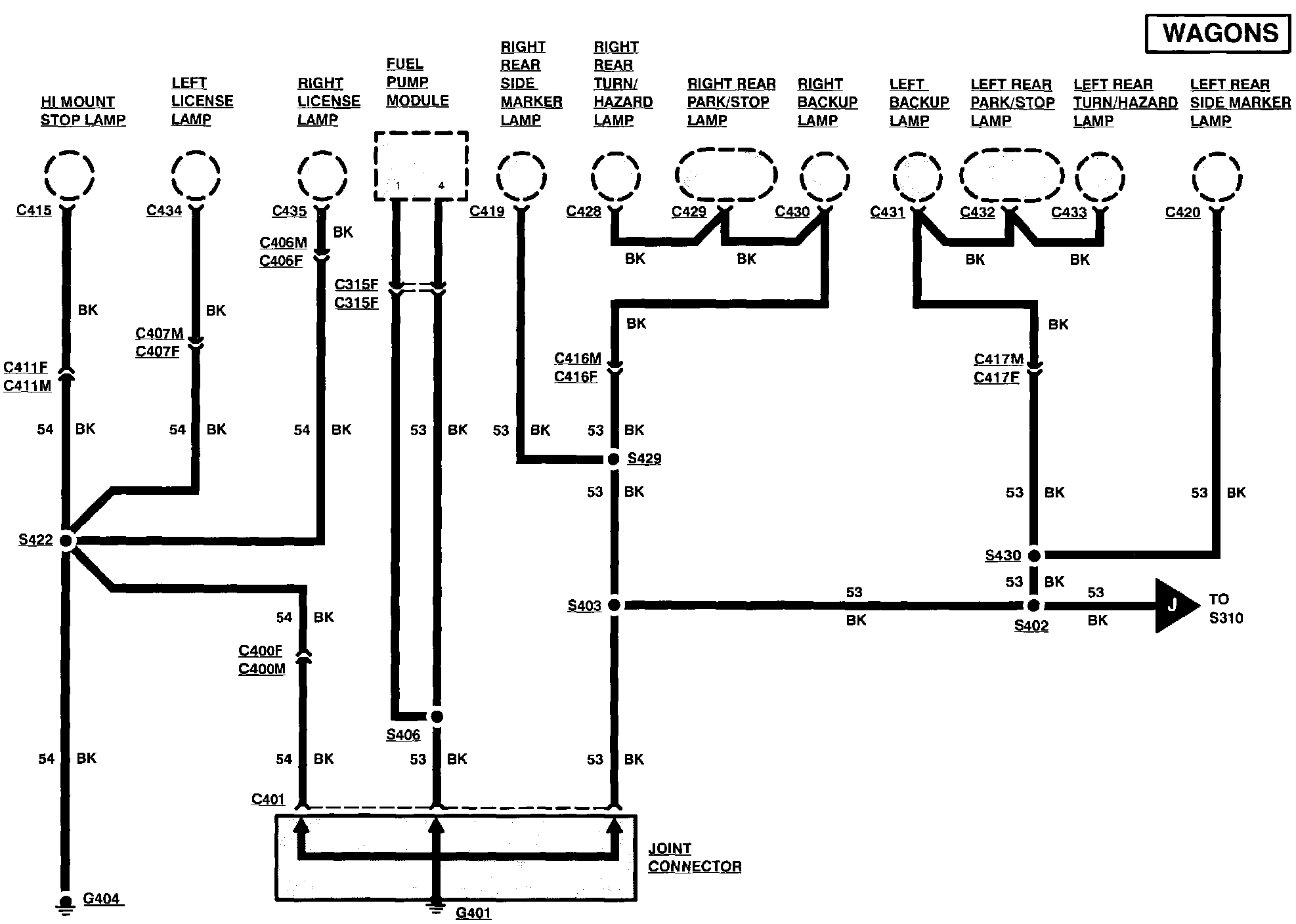

Grounds (G401 & G404):
