Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Diagrams (By Ground Number) >> G224

G224

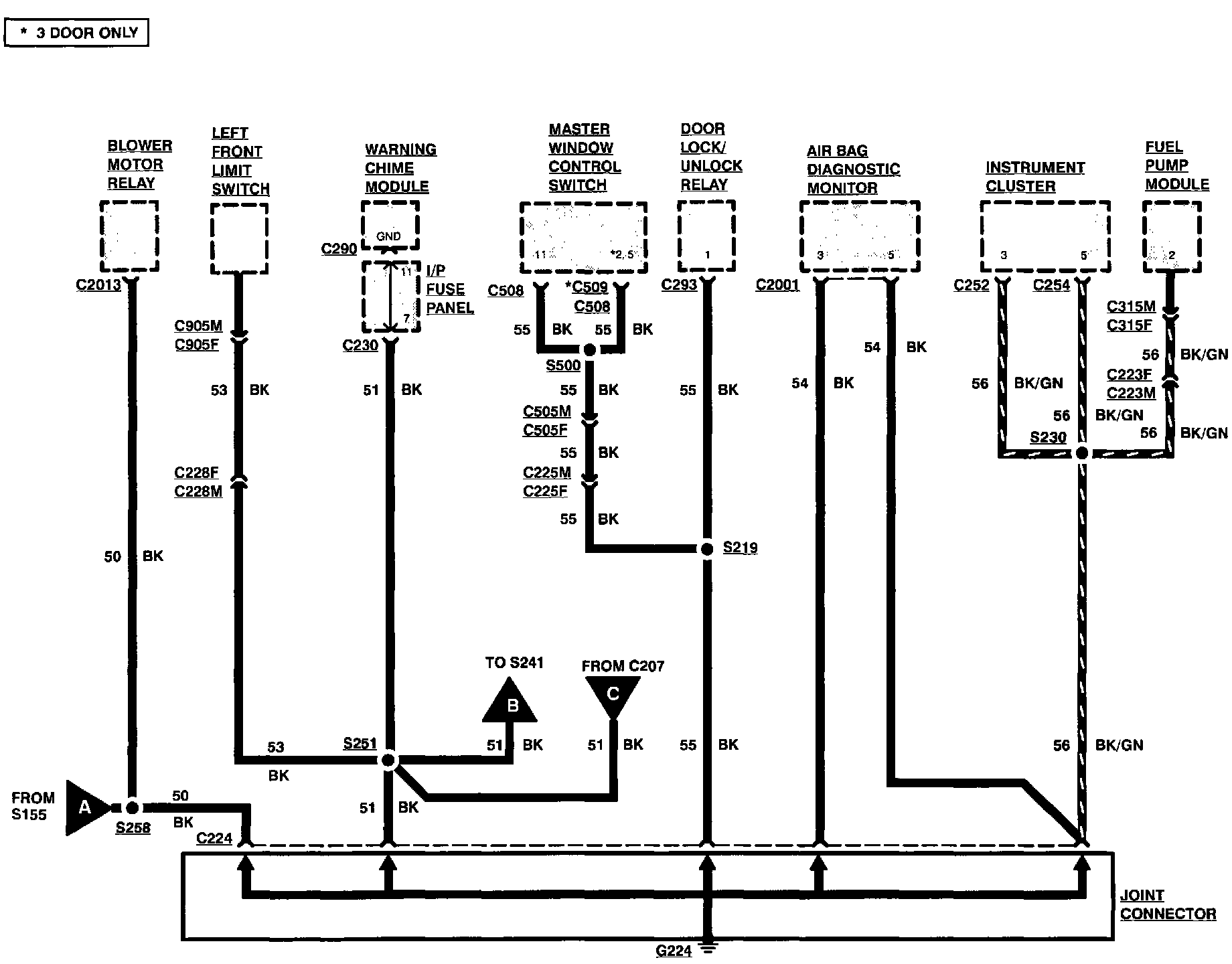

Grounds (G224):

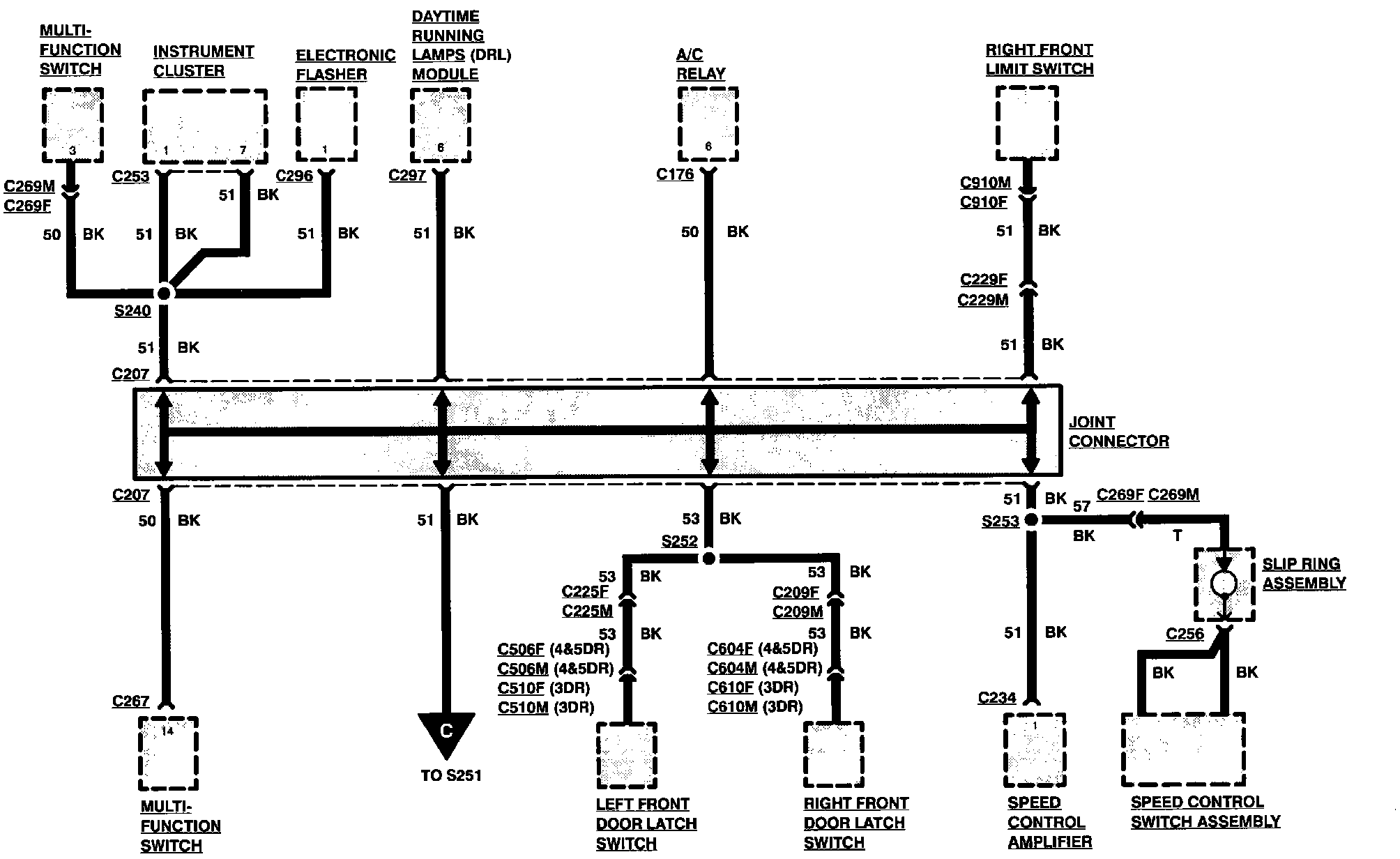

Grounds (G224):
