Ground Diagrams (By Component Name)

Grounds (G104):

A/C High Pressure Cutoff Switch
Brake Fluid Level Switch
Clutch Pedal Position Switch
Electric Cooling Fan
Engine Coolant Level Switch
Hi Fan Engine Coolant Temperature Switch
Joint Connector
Left Front Park/Turn Lamp
Left Headlamp
Windshield Wiper Motor

Grounds (G104):

ABS Hydraulic Unit
ABS Main Relay
Brake Fluid Level Switch
Clutch Pedal Position Switch
Electric Cooling Fan
Engine Coolant Level Switch
Hi Fan Engine Coolant Temperature Switch
Joint Connector
Left Front Park/Turn Lamp
Left Headlamp
Windshield Wiper Motor

Grounds (G224):

Air Bag Diagnostic Monitor
Blower Motor Relay
Door Lock/Unlock Relay
Fuel Pump Module
Instrument Cluster
Joint Connector
Left Front Limit Switch
Master Window Control Switch
Warning Chime Module

Grounds (G106):

Joint Connector
Left Fog Lamp
Multi-function Switch
Right Fog Lamp
Right Front Park/Turn Lamp
Right Headlamp
Windshield Washer Pump Motor

Grounds (G224):

A/C Relay
Daytime Running Lamps Module
Electronic Flasher
Instrument Cluster
Joint Connector
Left Front Door Latch Switch
Left Front Door Latch Switch
Multi-Function Switch
Right Front Door Latch Switch
Right Front Limit Switch
Slip Ring Assembly
Speed Control Amplifier
Speed Control Switch Assembly

Grounds (G103 & G206):

Crankshaft Position Sensor
Data Link Connector #1
Data Link Connector #2
Distributor
Engine Compartment Fuse Box
Joint Connector
Neutral Switch
PCM Power Relay

Grounds (G102, G114 & G115):

Battery
Distributor Ignition Module
Powertrain Control Module
Radio Noise Capacitor
Volume Air Flow Meter

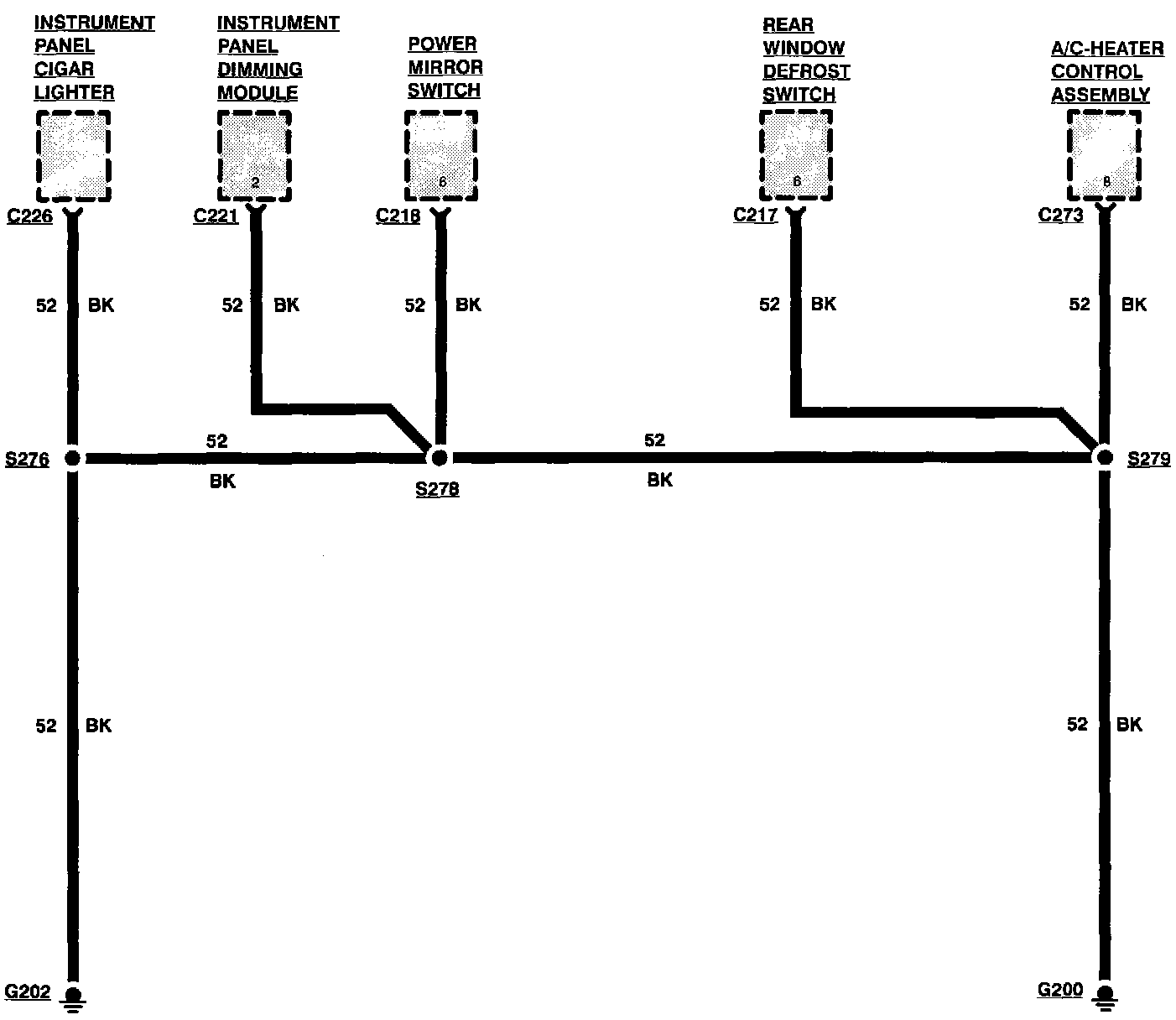

Grounds (G200 & G202):

A/C-Heater Control Assembly
Instrument Panel Dimming Module
Instrument Panel Cigar Lighter
Power Mirror Switch
Rear Window Defrost Switch

Grounds (G401 & G403):

Fuel Pump Module
Hi Mount Stop Lamp
Joint Connector
Left Backup Lamp
Left License Lamp
Left Rear Park/Stop Lamp
Left Rear Turn/Hazard Lamp
Rear Window Defrost Grid
Right Rear Park/Stop Lamp
Right Backup Lamp
Right License Lamp
Right Rear Turn/Hazard Lamp

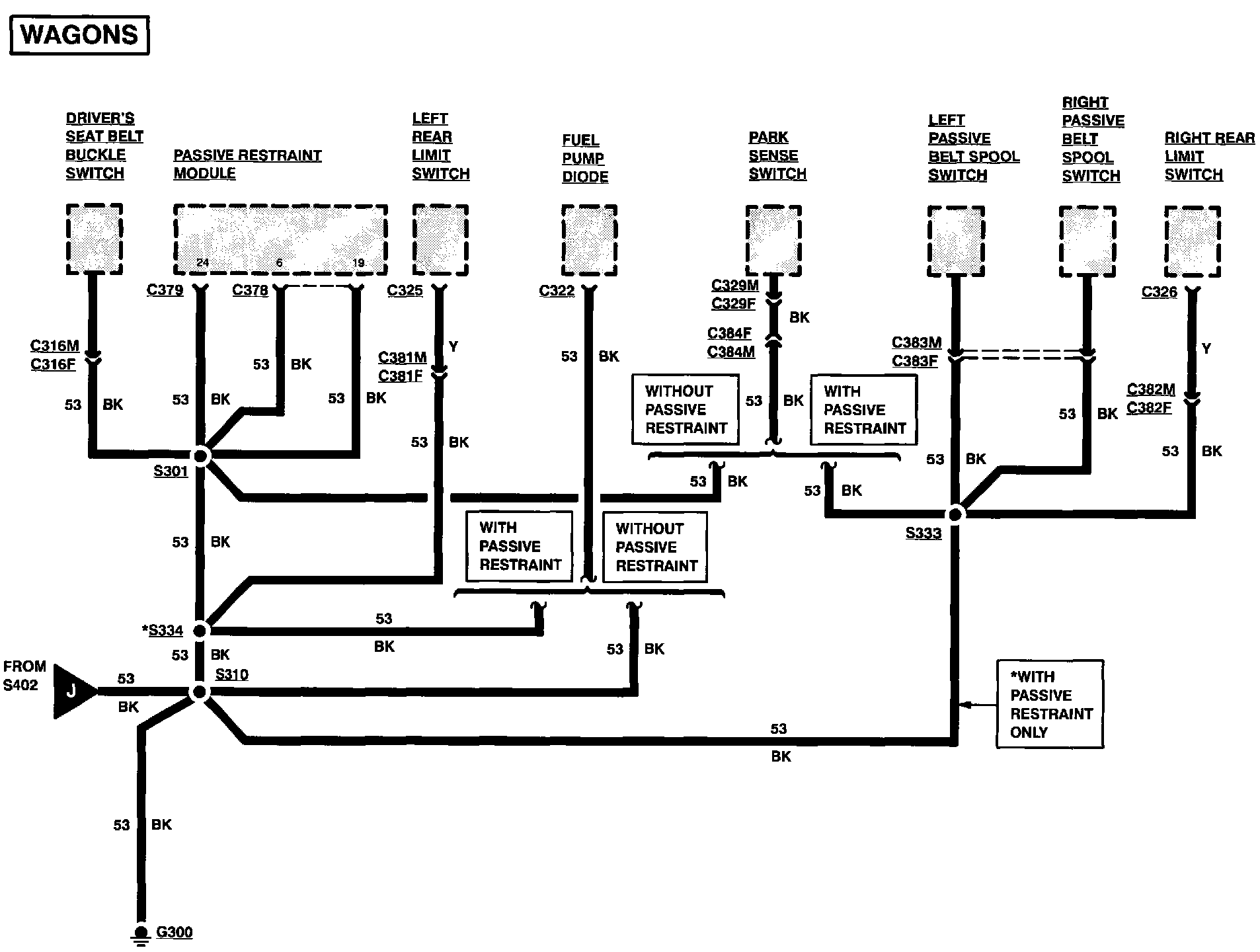

Grounds (G300):

Driver's Seat Belt Buckle Switch
Fuel Pump Diode
Left Passive Belt Spool Switch
Left Rear Limit Switch
Park Sense Switch
Passive Restraint Module
Rear Heated Oxygen Sensor
Right Passive Belt Spool Switch
Right Rear Limit Switch

Grounds (G401 & G404):

Fuel Pump Module
Hi Mount Stop Lamp
Joint Connector
Left Backup Lamp
Left License Lamp
Left Rear Park/Stop Lamp
Left Rear Side Marker Lamp
Left Rear Turn/Hazard Lamp
Right Backup Lamp
Right License Lamp
Right Rear Park/Stop Lamp
Right Rear Side Marker Lamp
Right Rear Turn/Hazard Lamp

Grounds (G300):

Driver's Seat Belt Buckle Switch
Fuel Pump Diode
Left Passive Belt Spool Switch
Left Rear Limit Switch
Park Sense Switch
Passive Restraining Module
Right Passive Belt Spool Switch
Right Rear Limit Switch

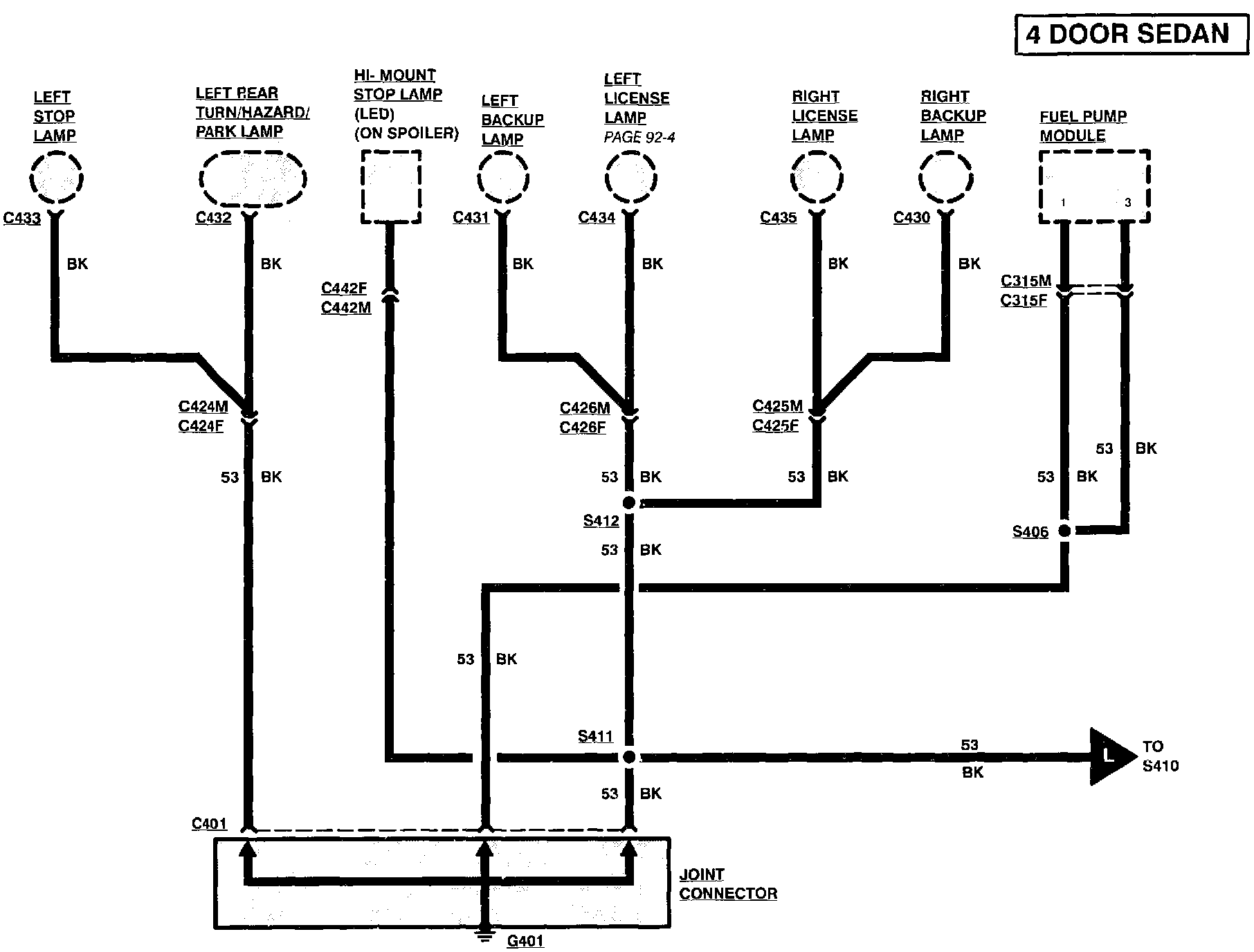

Grounds (G401):

Hi Mount Stop Lamp (LED On Spoiler)
Joint Connector
Left Backup Lamp
Left License Lamp
Left Rear Turn/Hazard/Park Lamp
Left Stop Lamp
Right Backup Lamp Fuel Pump Module
Right License Lamp

Grounds (G401):

Driver's Seat Belt Buckle Switch
Fuel Pump Diode
Hi Mount Stop Lamp
Joint Connector
Left Passive Belt Spool Switch
Left Rear Limit Switch
Park Sense Switch
Passive Restraint Module
Rear Heated Oxygen Sensor
Rear Window Defrost Grid
Right Passive Belt Spool Switch
Right Rear Limit Switch
Right Rear Turn/Hazard/Park Lamp
Right Stop Lamp
