Exterior Lamps

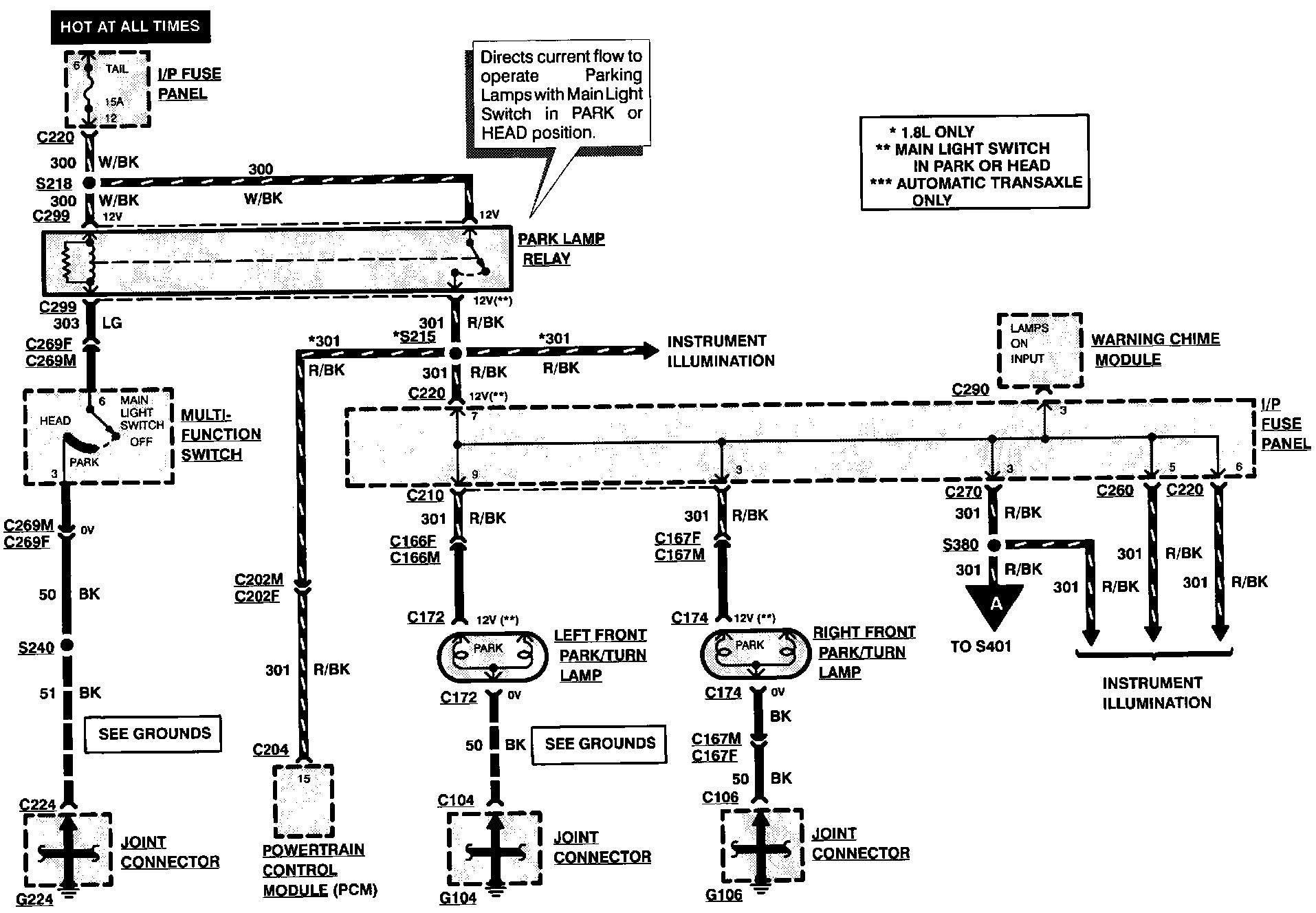

Park/Stop/License Lamps (Part 1 Of 3):

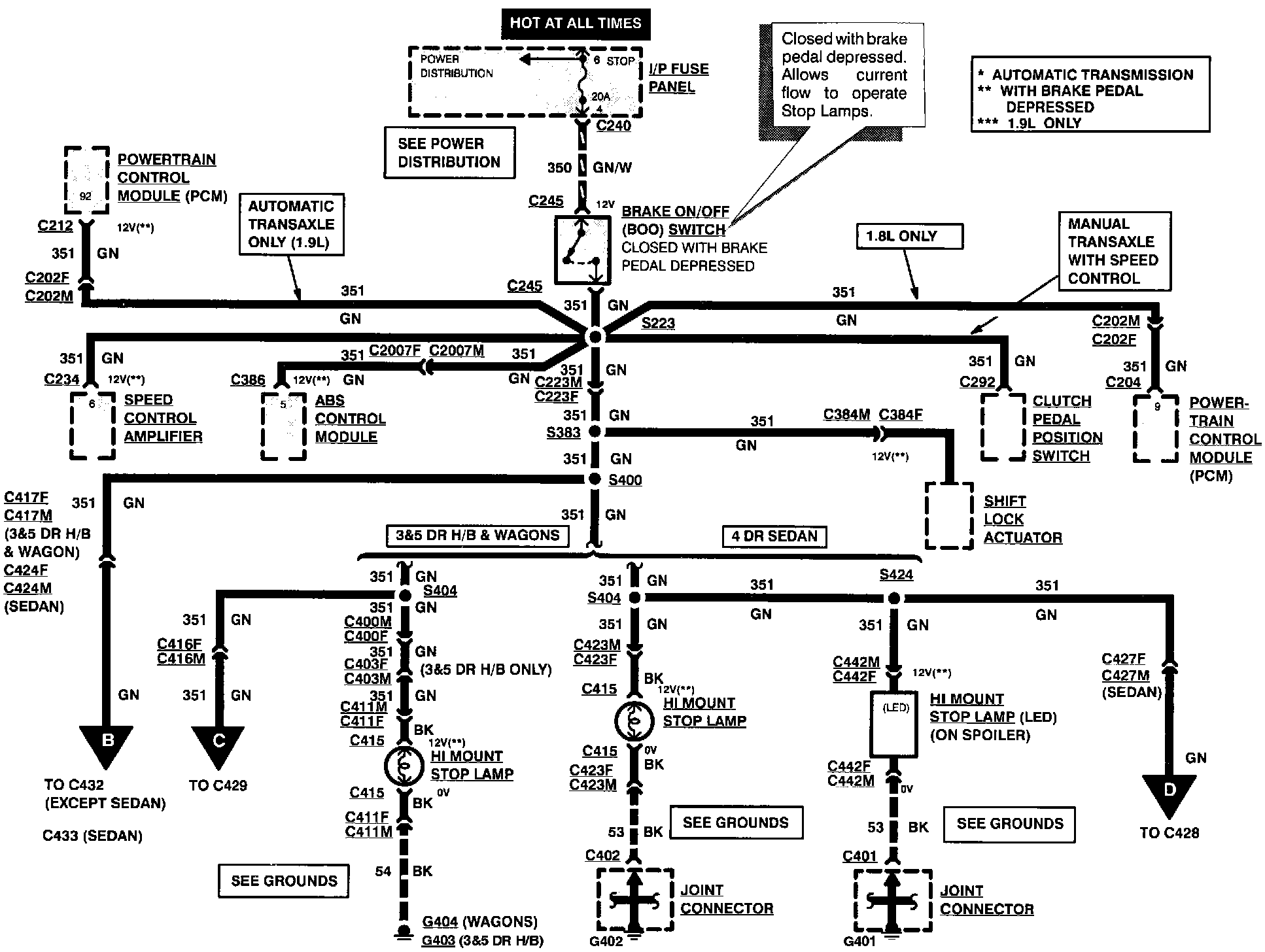

Park/Stop/License Lamps (Part 2 Of 3):

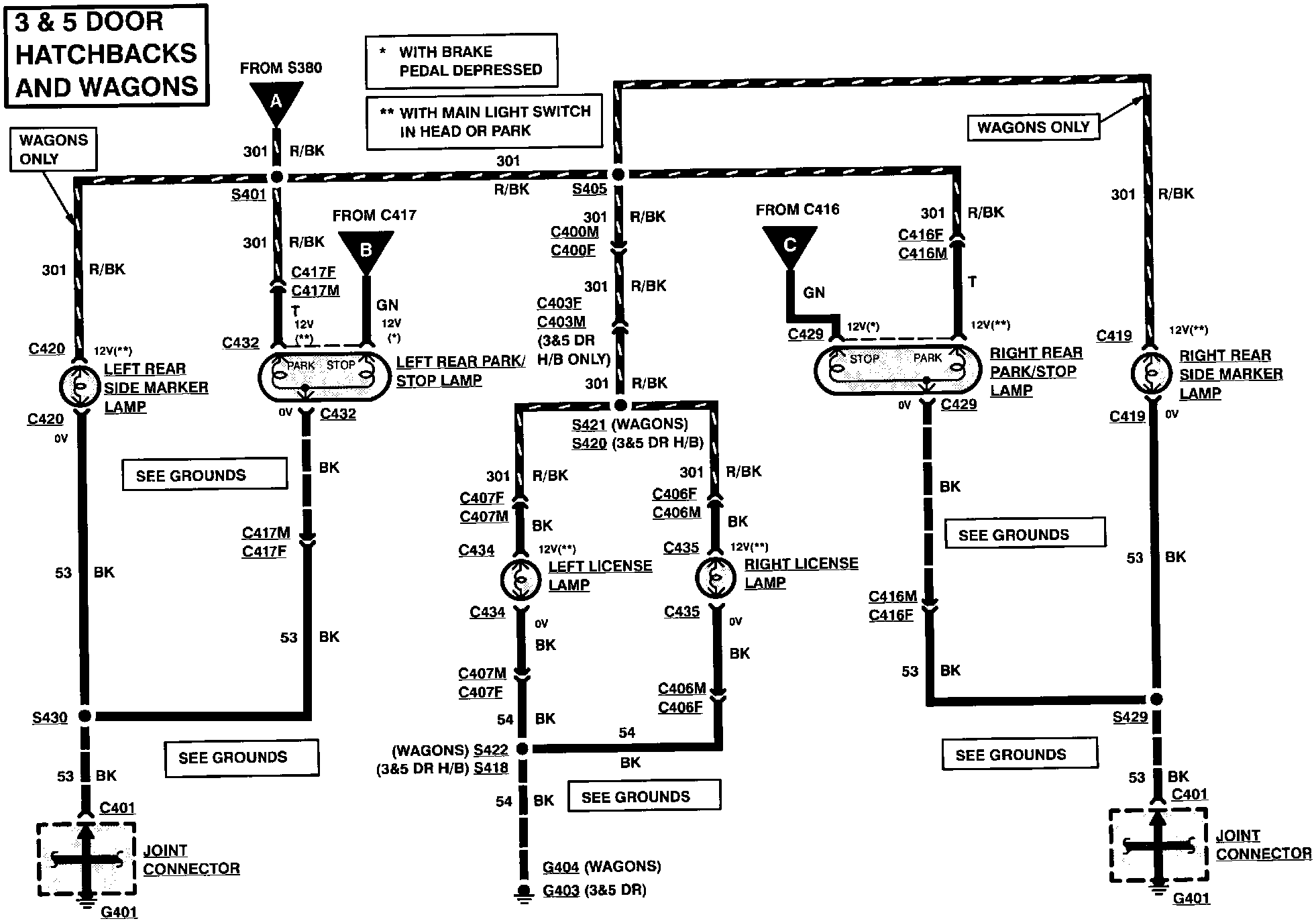

Park/Stop/License Lamps (3 & 5 Hatchbacks And Wagons) (Part 3 Of 3):

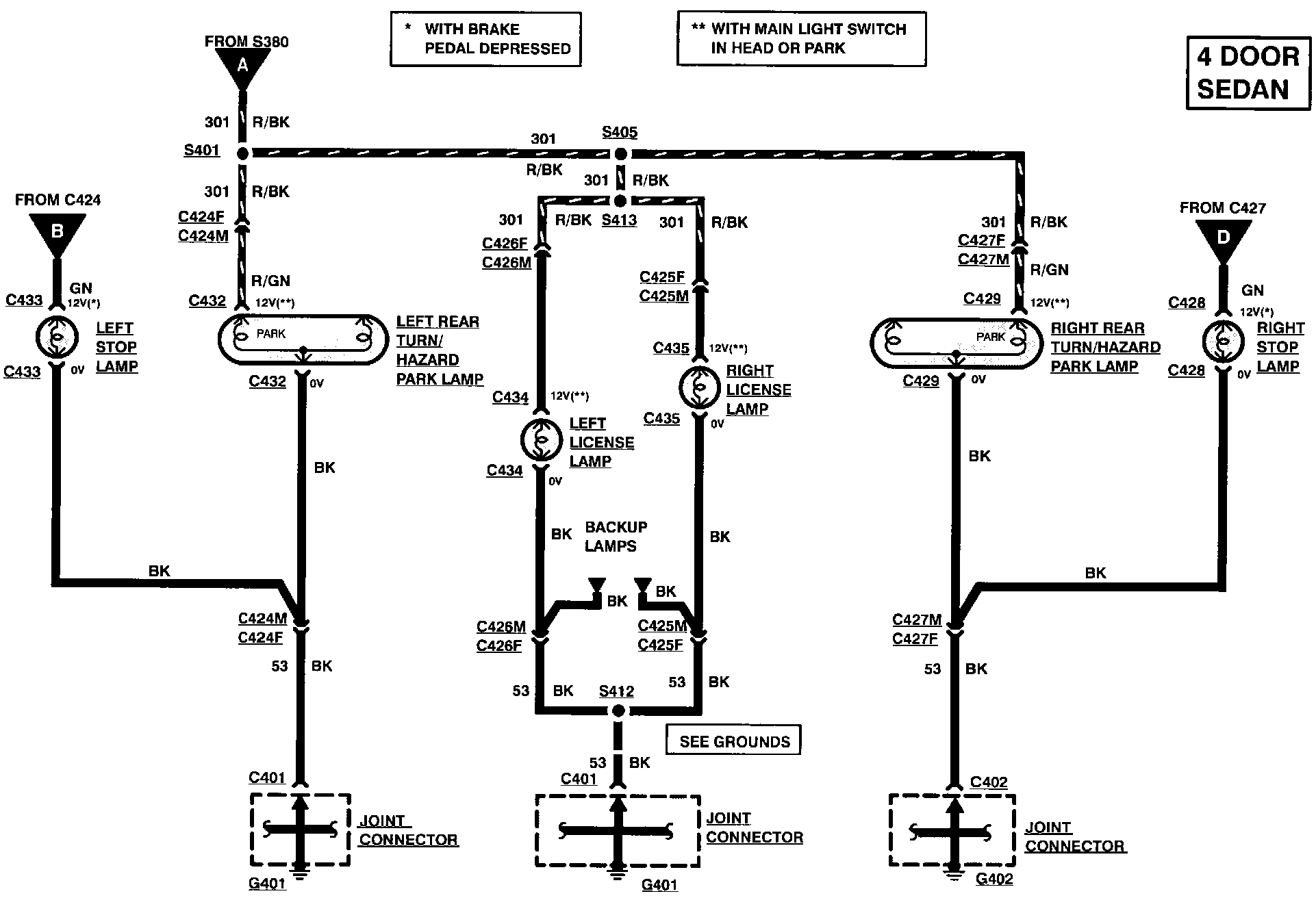

Park/Stop/License Lamps (4 Door Sedan) (Part 3 Of 3):
