Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instrument Cluster
>>
Standard
Standard

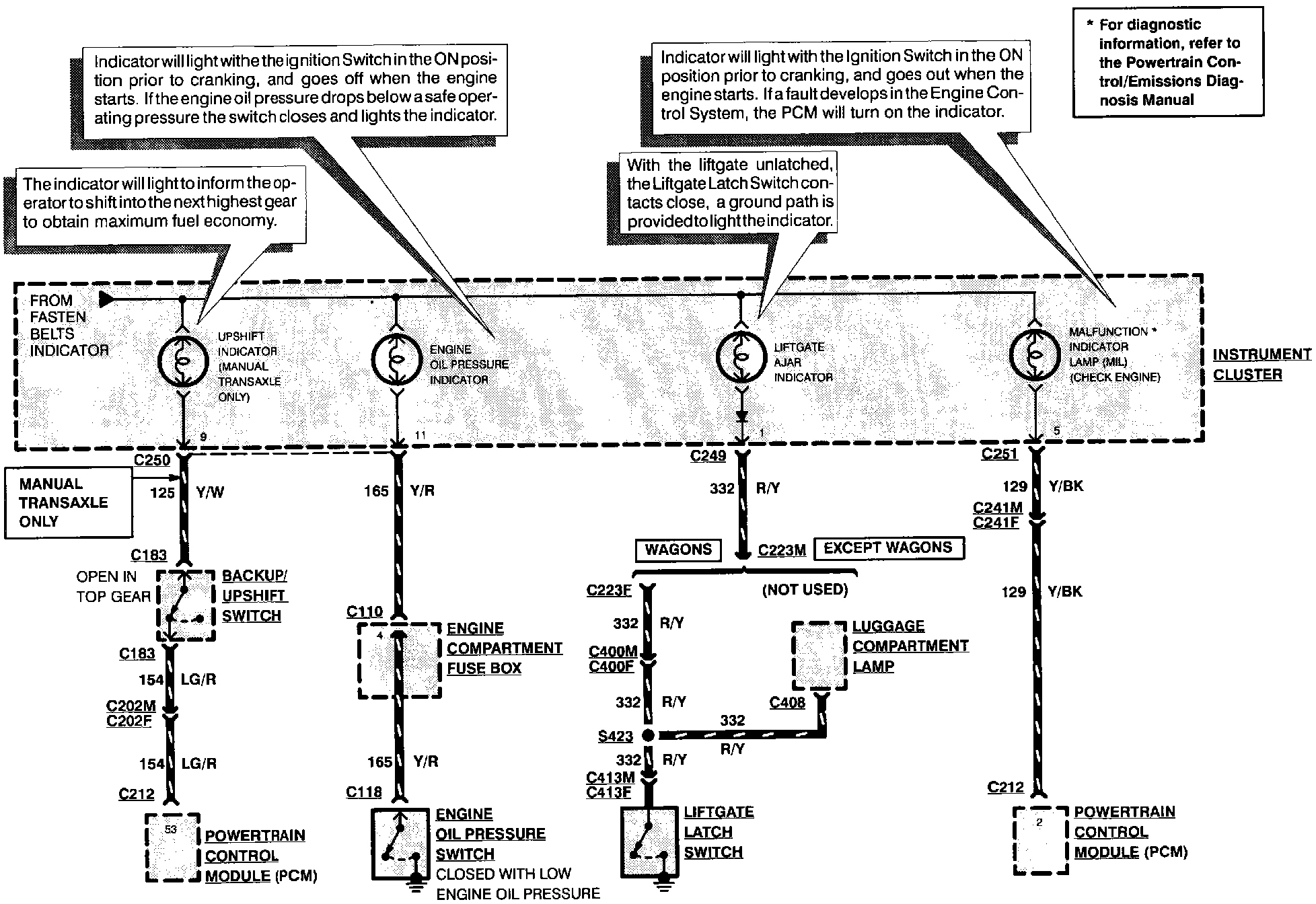

Instrument Cluster (Standard) (Part 1 Of 4):

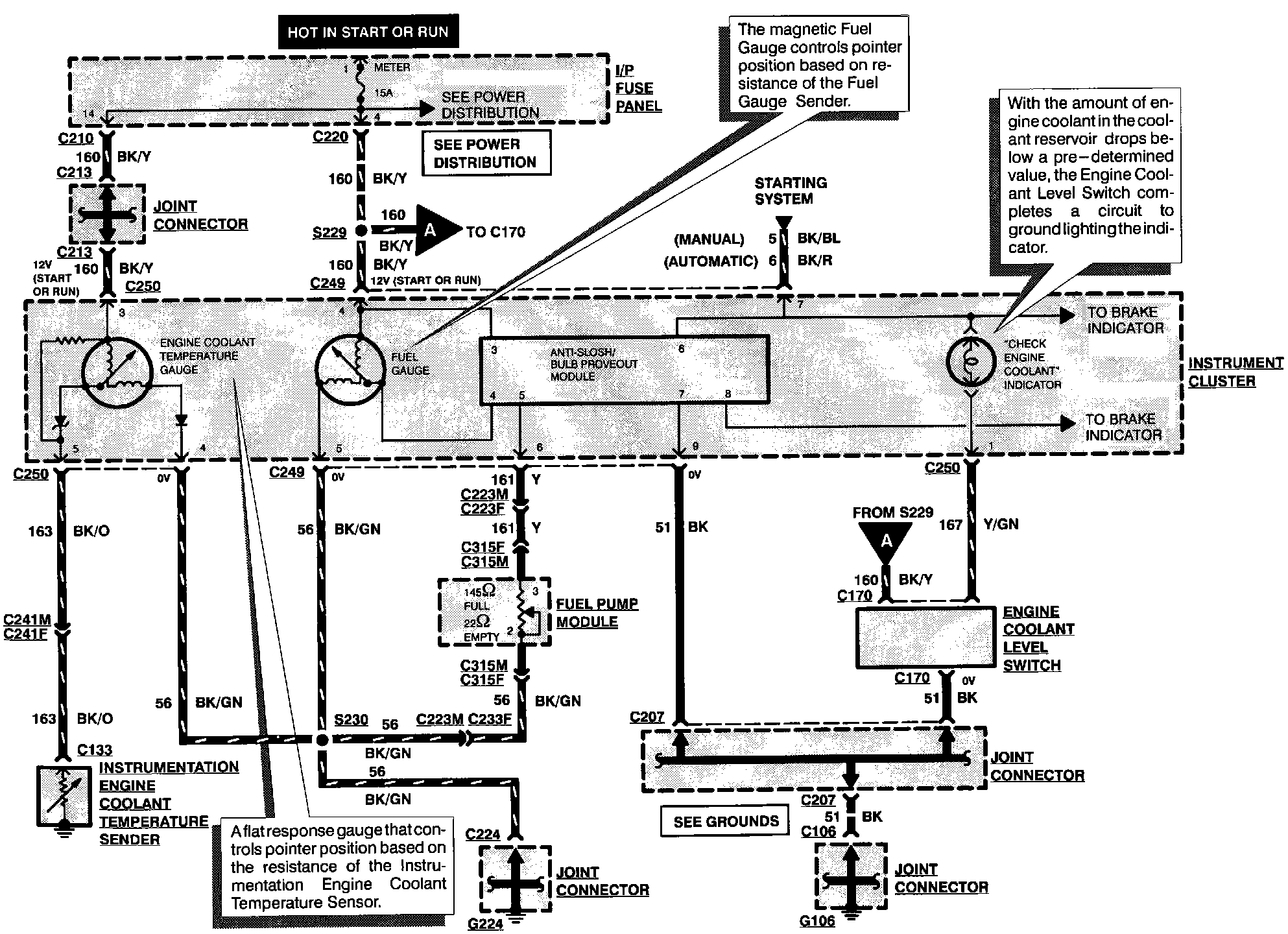

Instrument Cluster (Standard) (Part 2 Of 4):

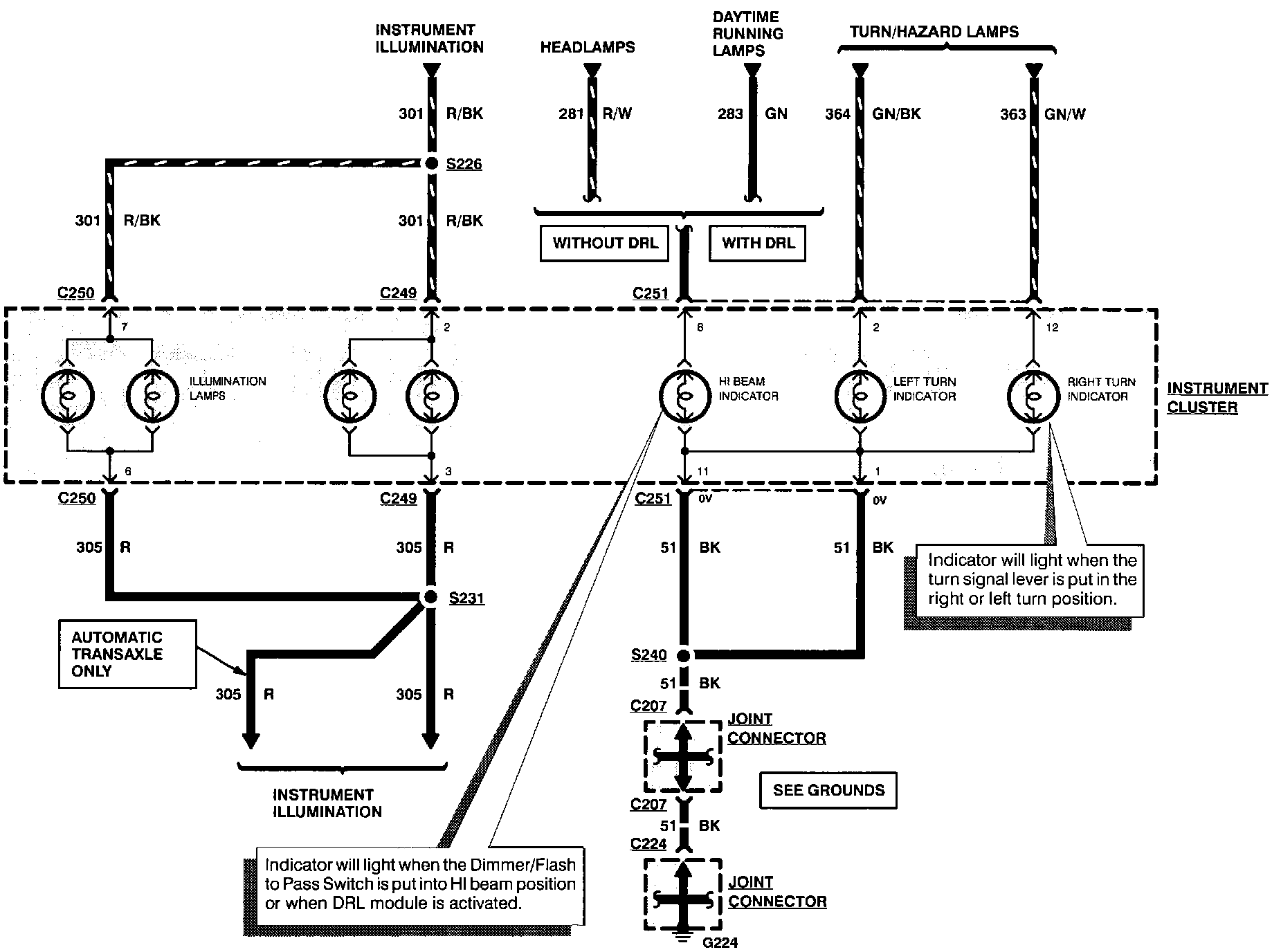

Instrument Cluster (Standard) (Part 3 Of 4):

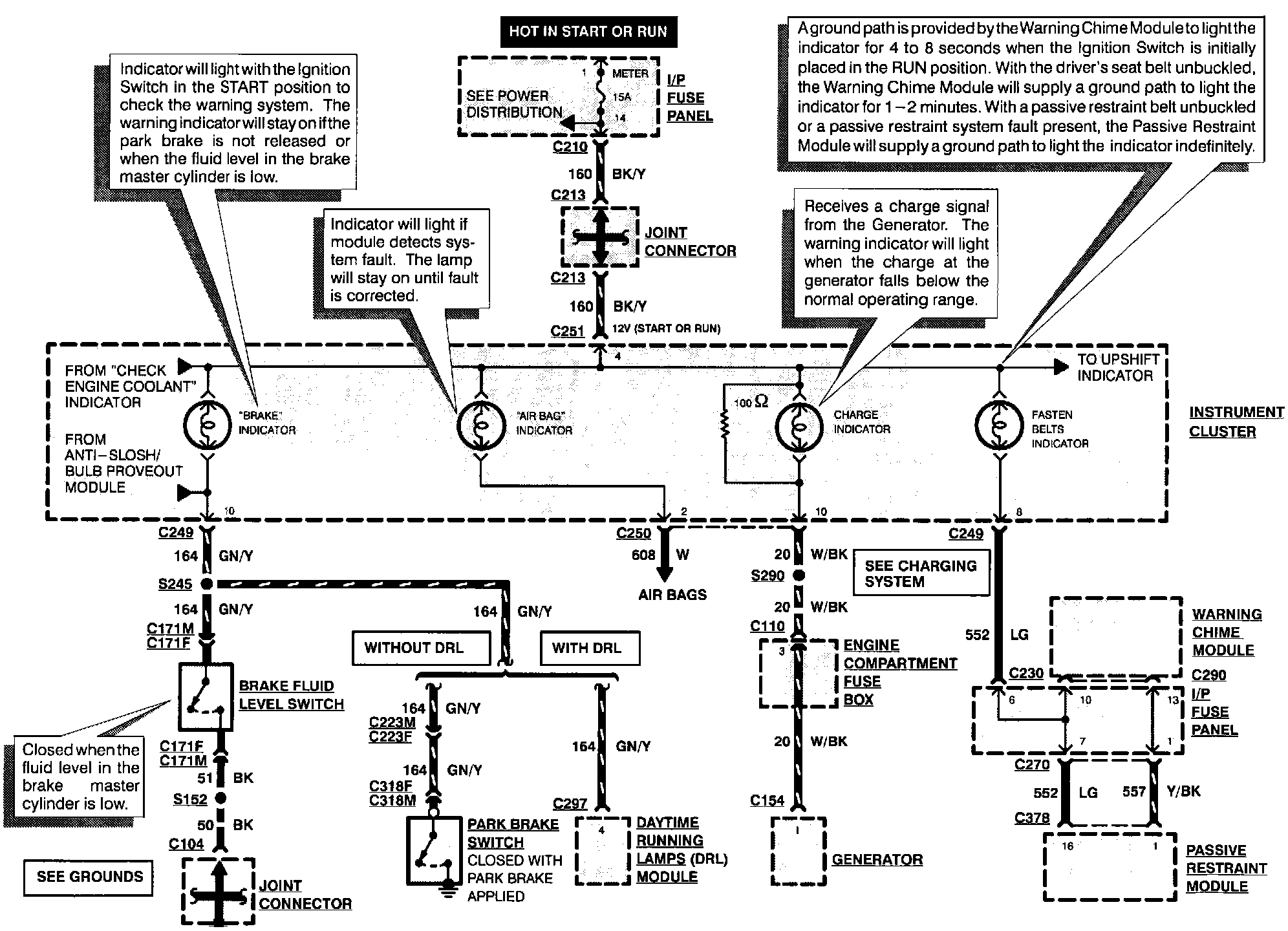

Instrument Cluster (Standard) (Part 4 Of 4):
