Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> With A/C

With A/C

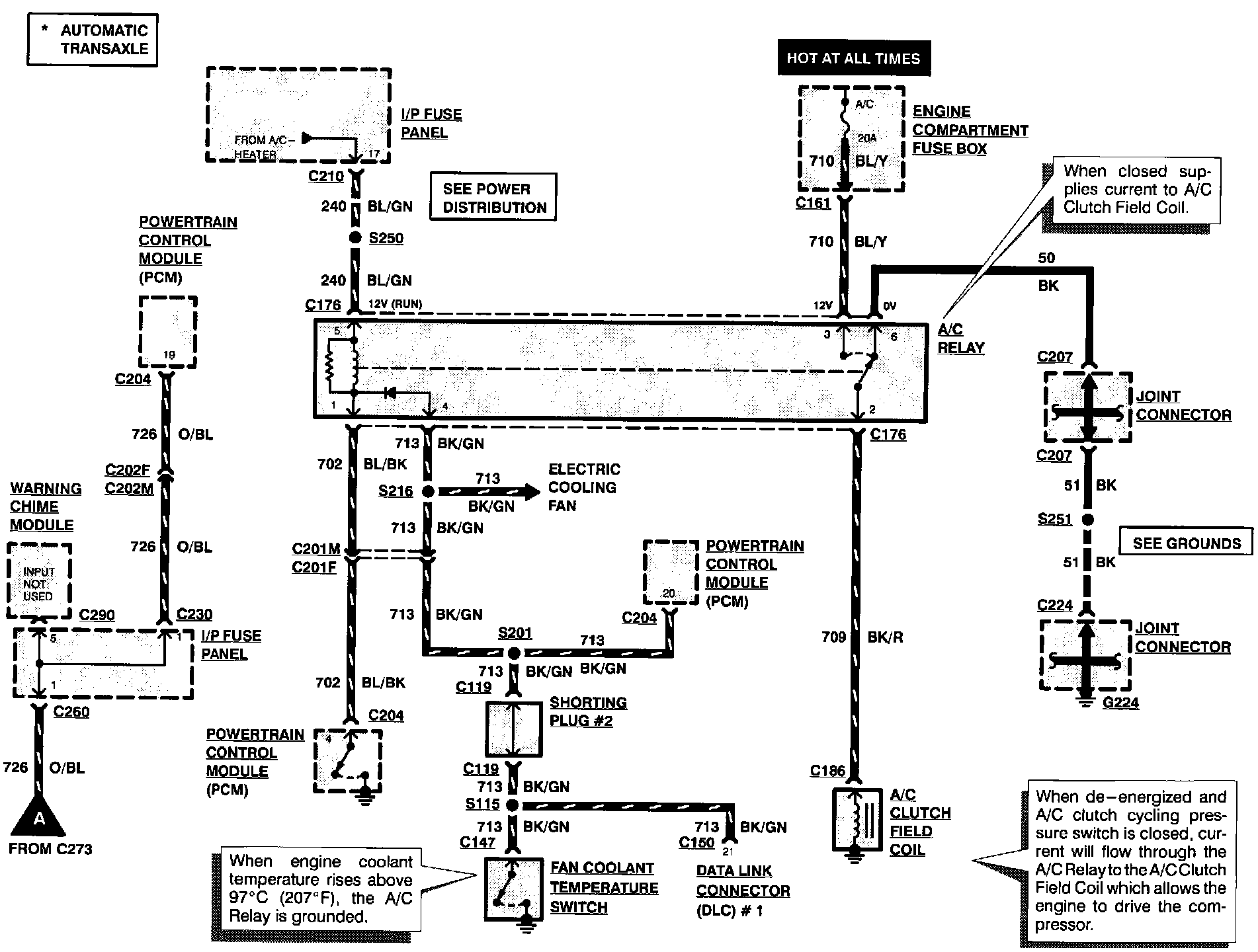

A/C-Heater (Part 1 Of 2 ):

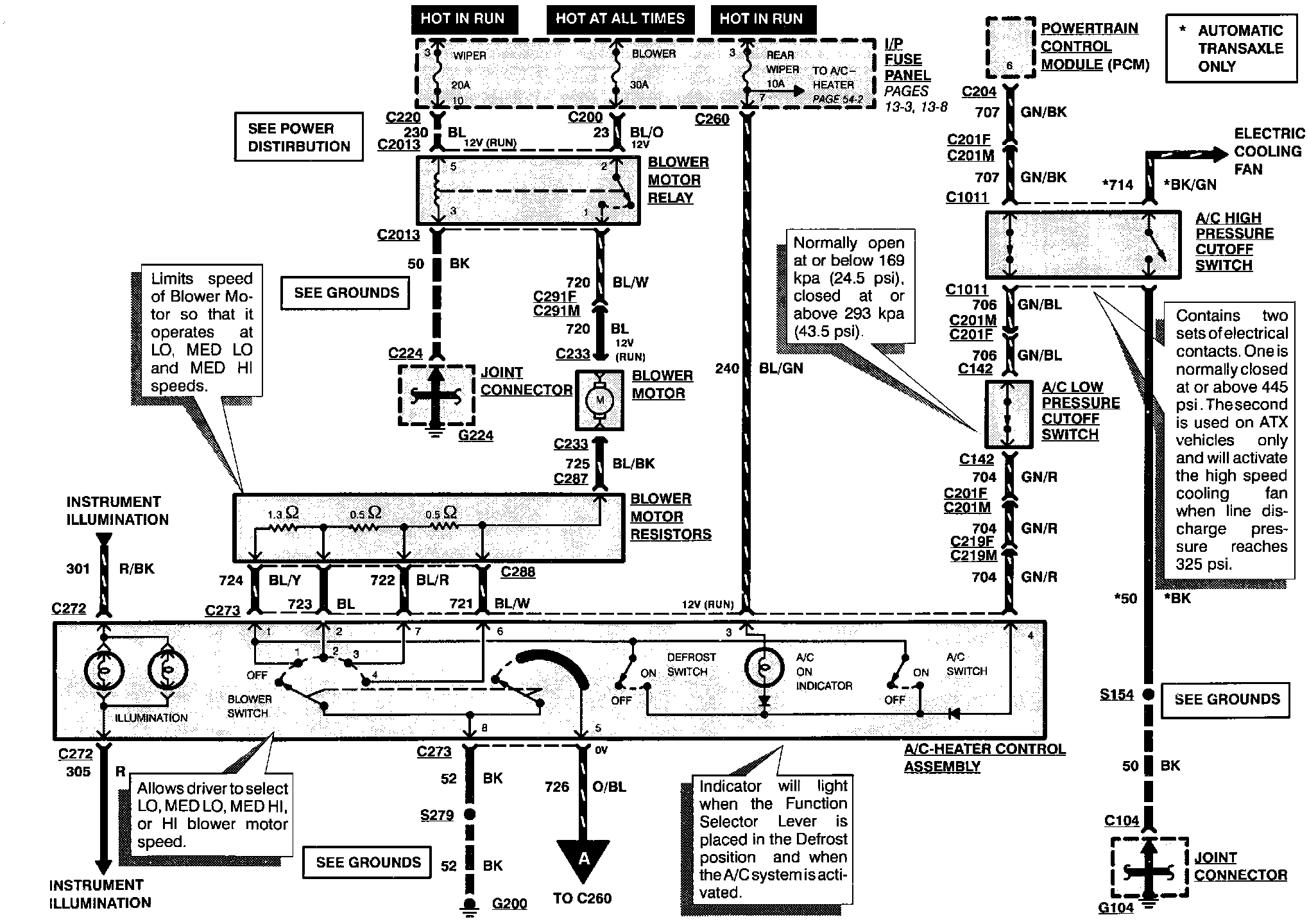

A/C-Heater (Part 2 Of 2 ):
