Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> AM/FM/Compact Disc >> Input

Input

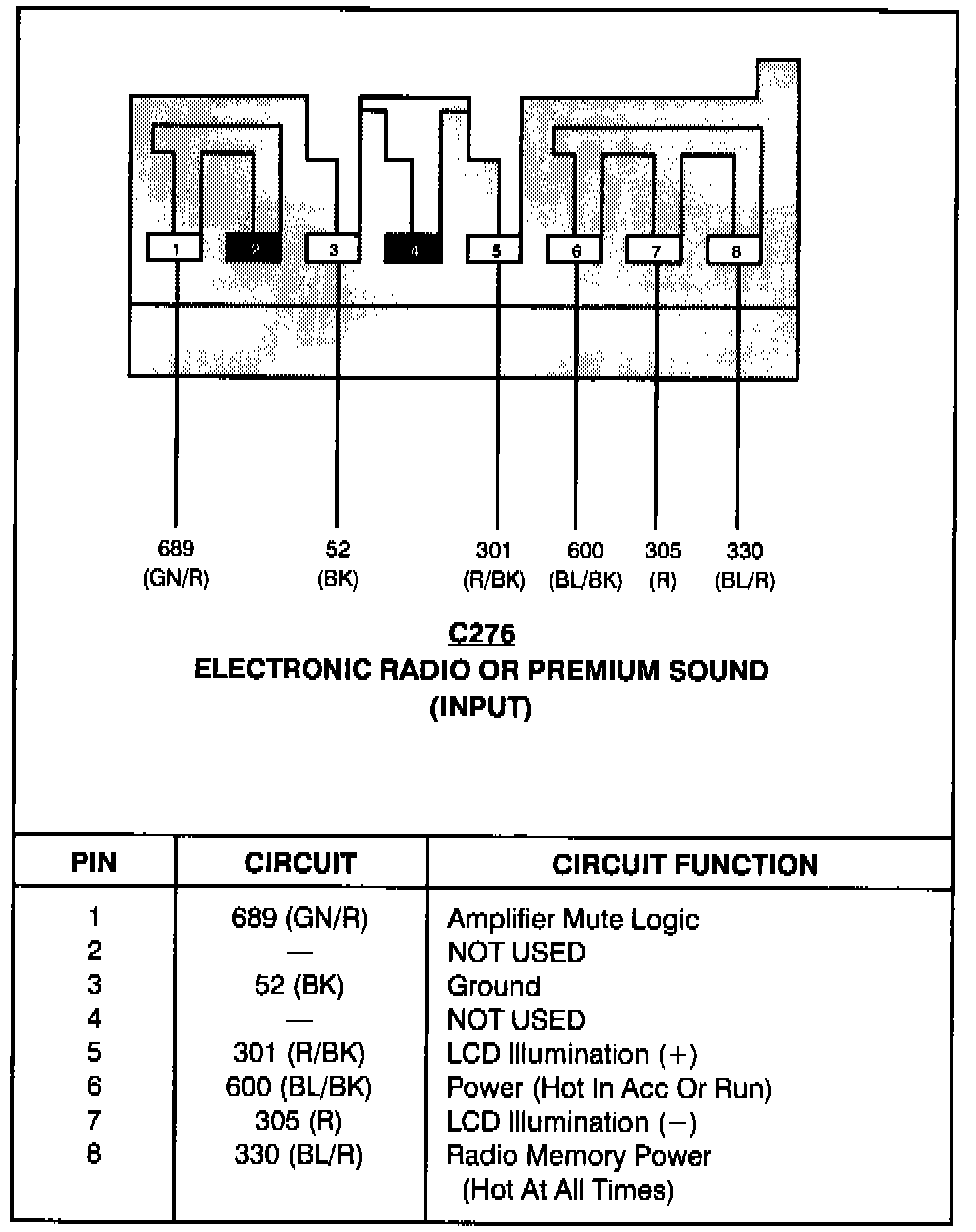

Electronic Radio Or Premium Sound (Input):
