Standard

Instrument Cluster (Standard) (C249):

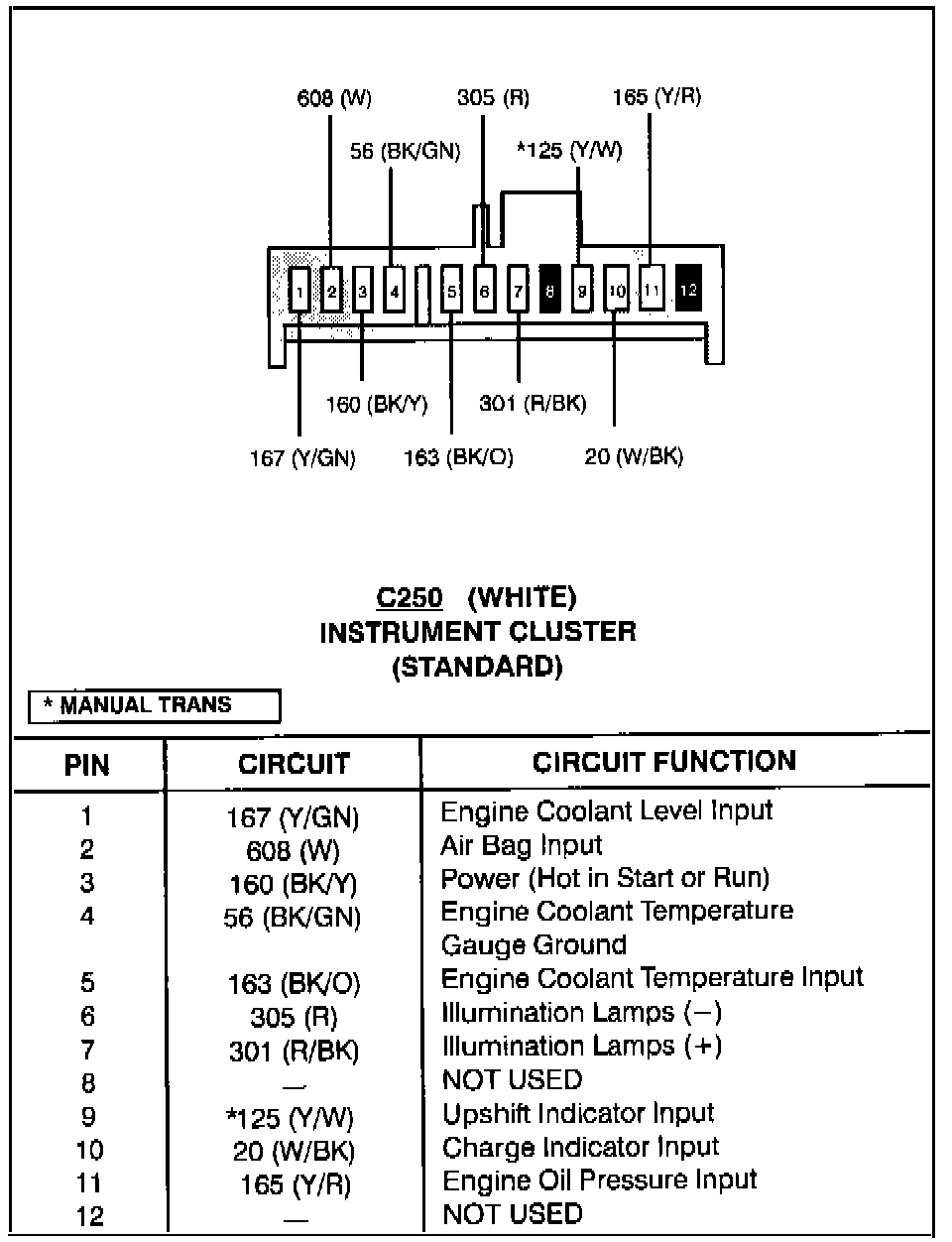

Instrument Cluster (Standard) (C250):

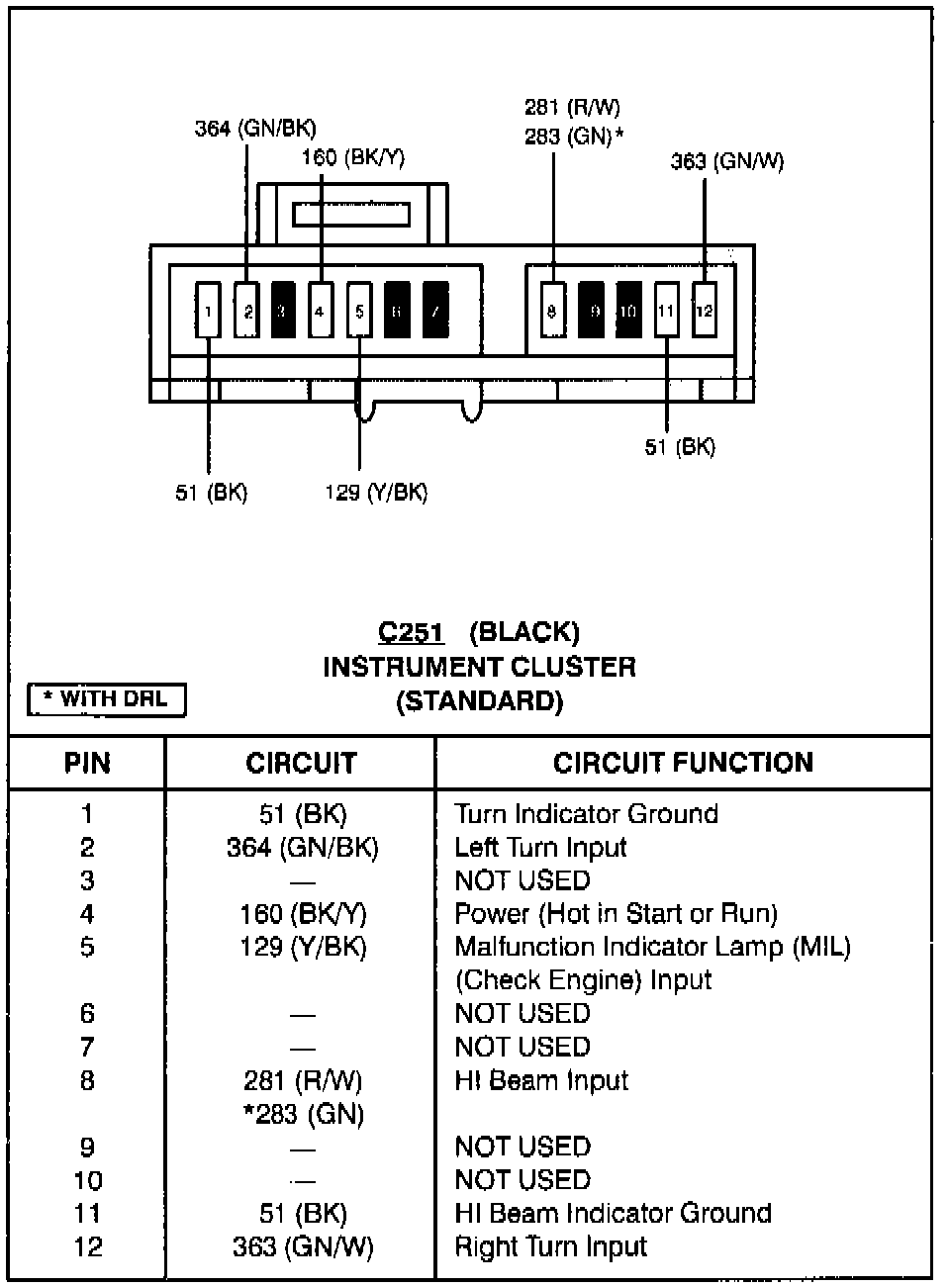

Instrument Cluster (Standard) (C251):
