Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Sport

Sport

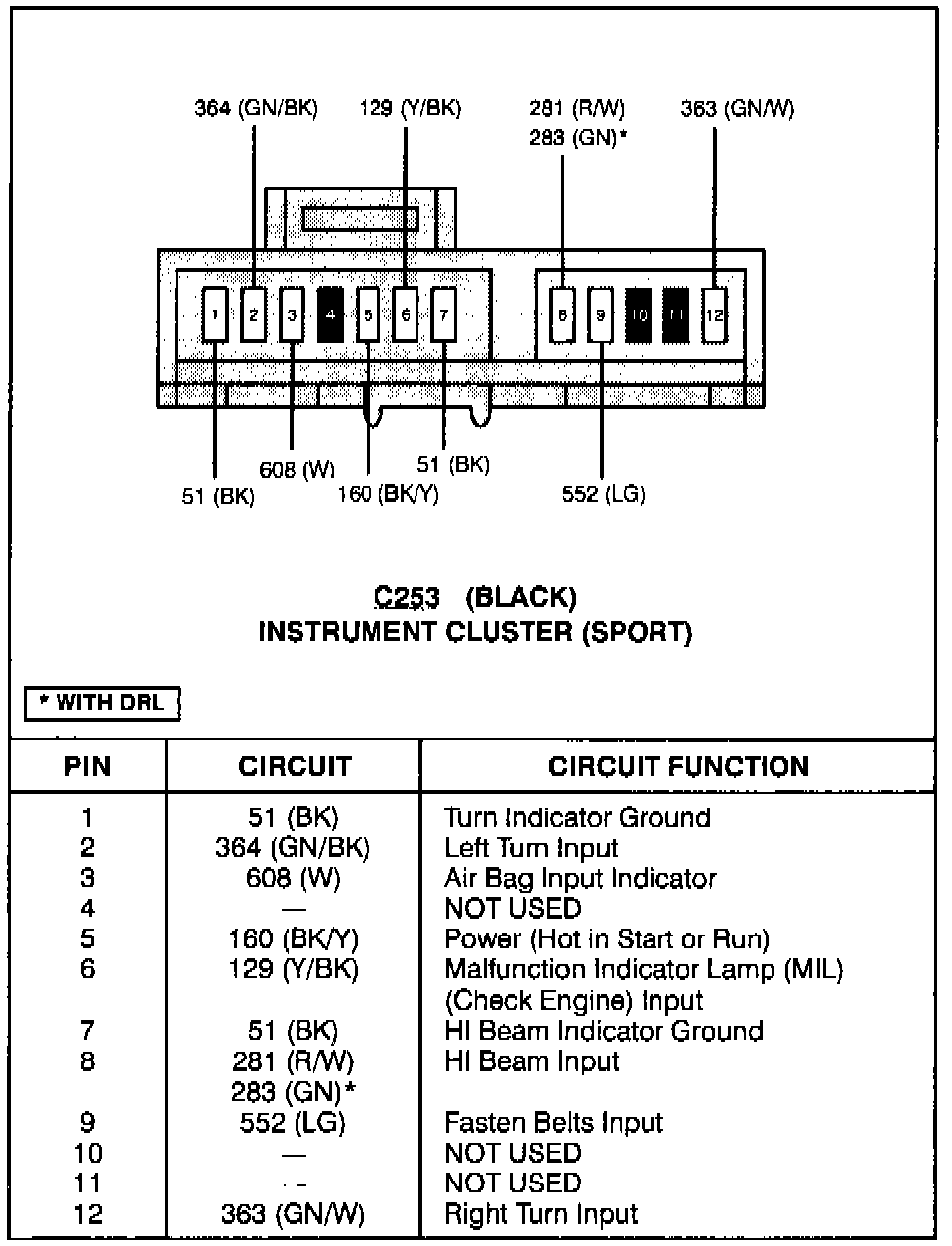

Instrument Cluster (Sport) (C253):

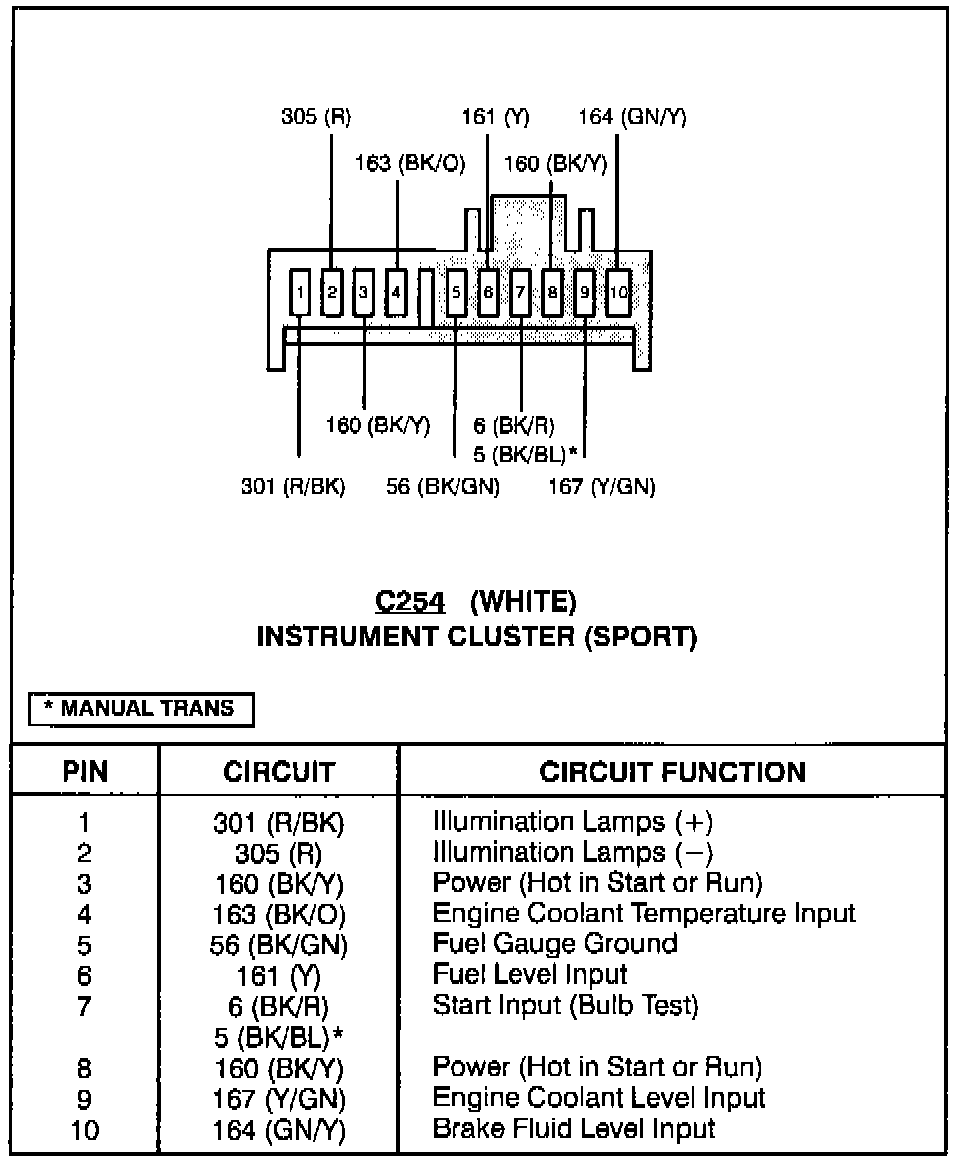

Instrument Cluster (Sport) (C254):




Instrument Cluster (Sport) (C252):
