Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

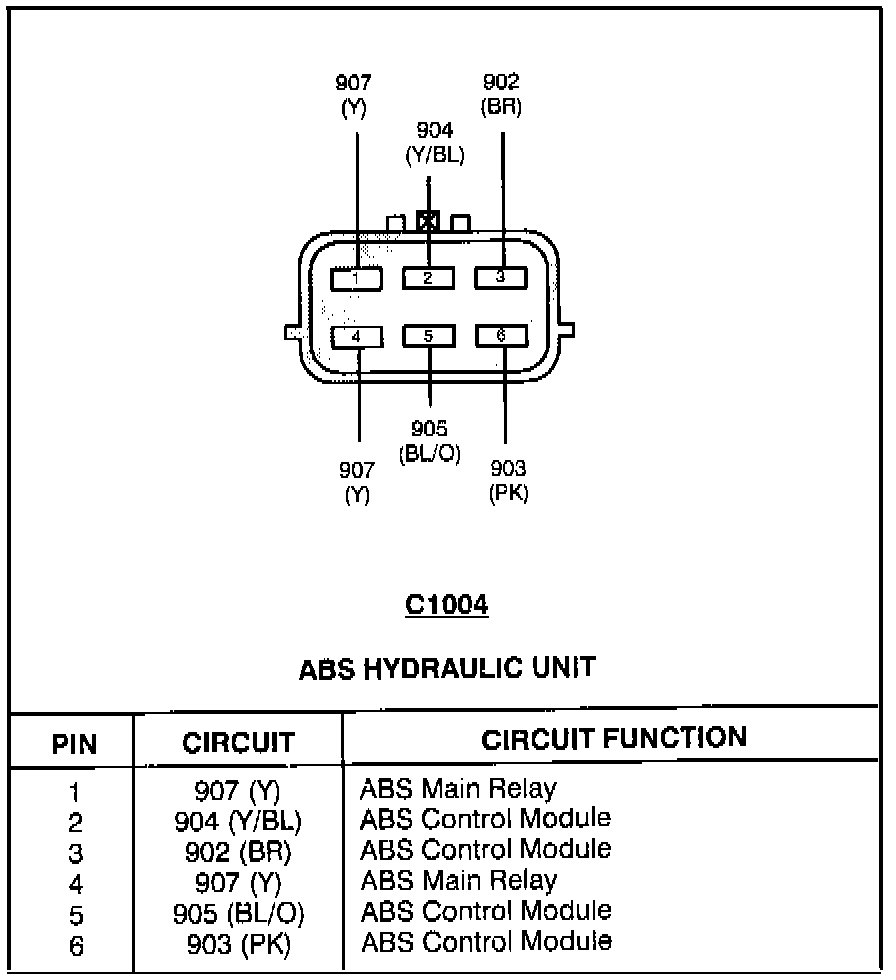

Anti-Lock Brakes System Hydraulic Unit (C1004):

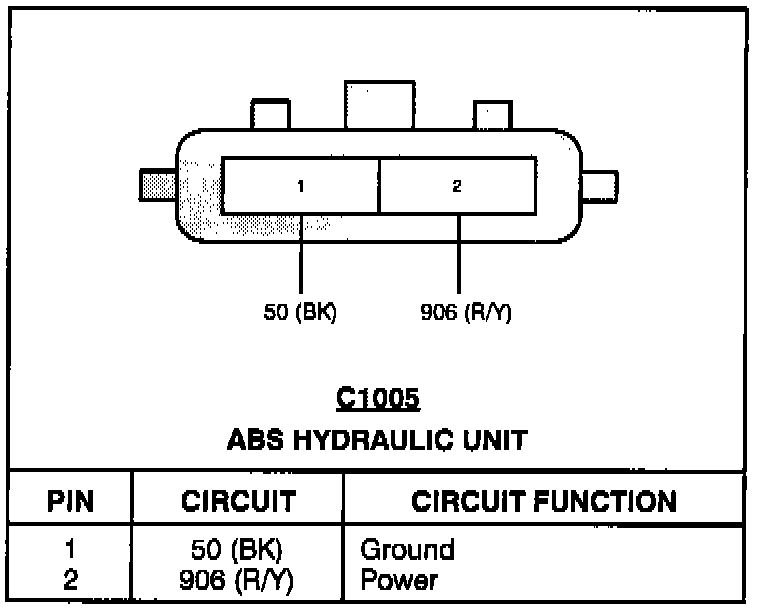

Anti-Lock Brakes System Hydraulic Unit (C1005):
