Engine Compartment Fuse Box

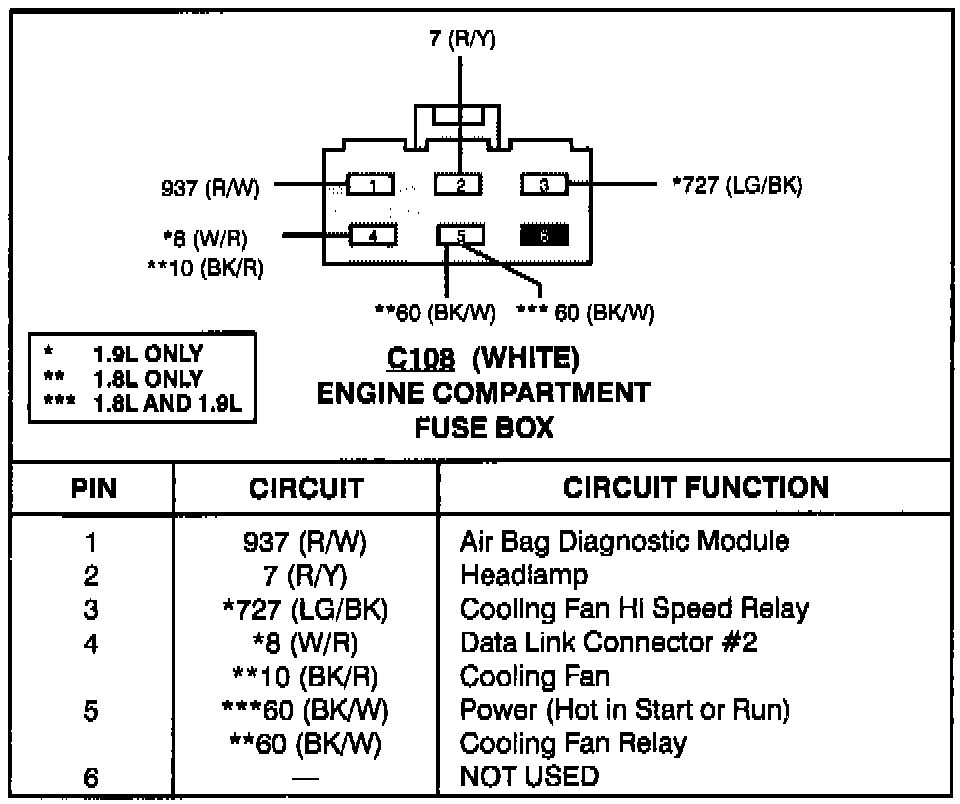

Engine Compartment Fuse Box (C108):

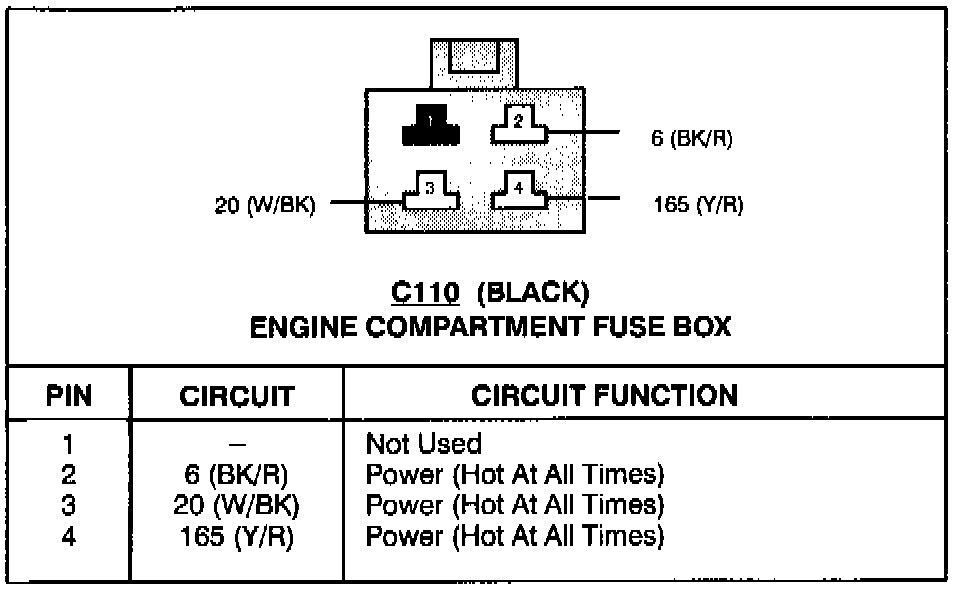

Engine Compartment Fuse Box (C110):

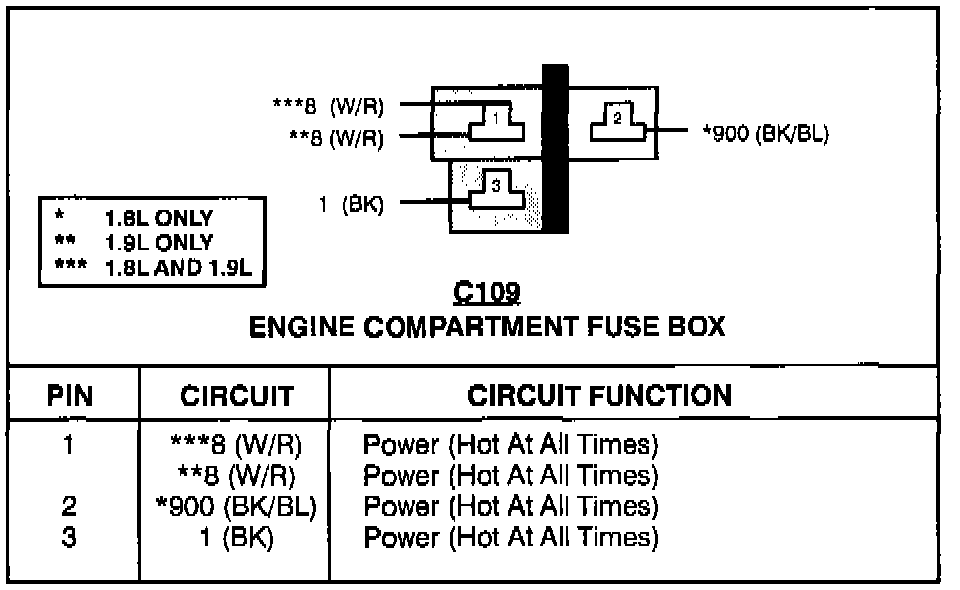

Engine Compartment Fuse Box (C109):




Engine Compartment Fuse Box (C111):
