Tracer L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compact Disc Player (CD)
>>
Output
Output

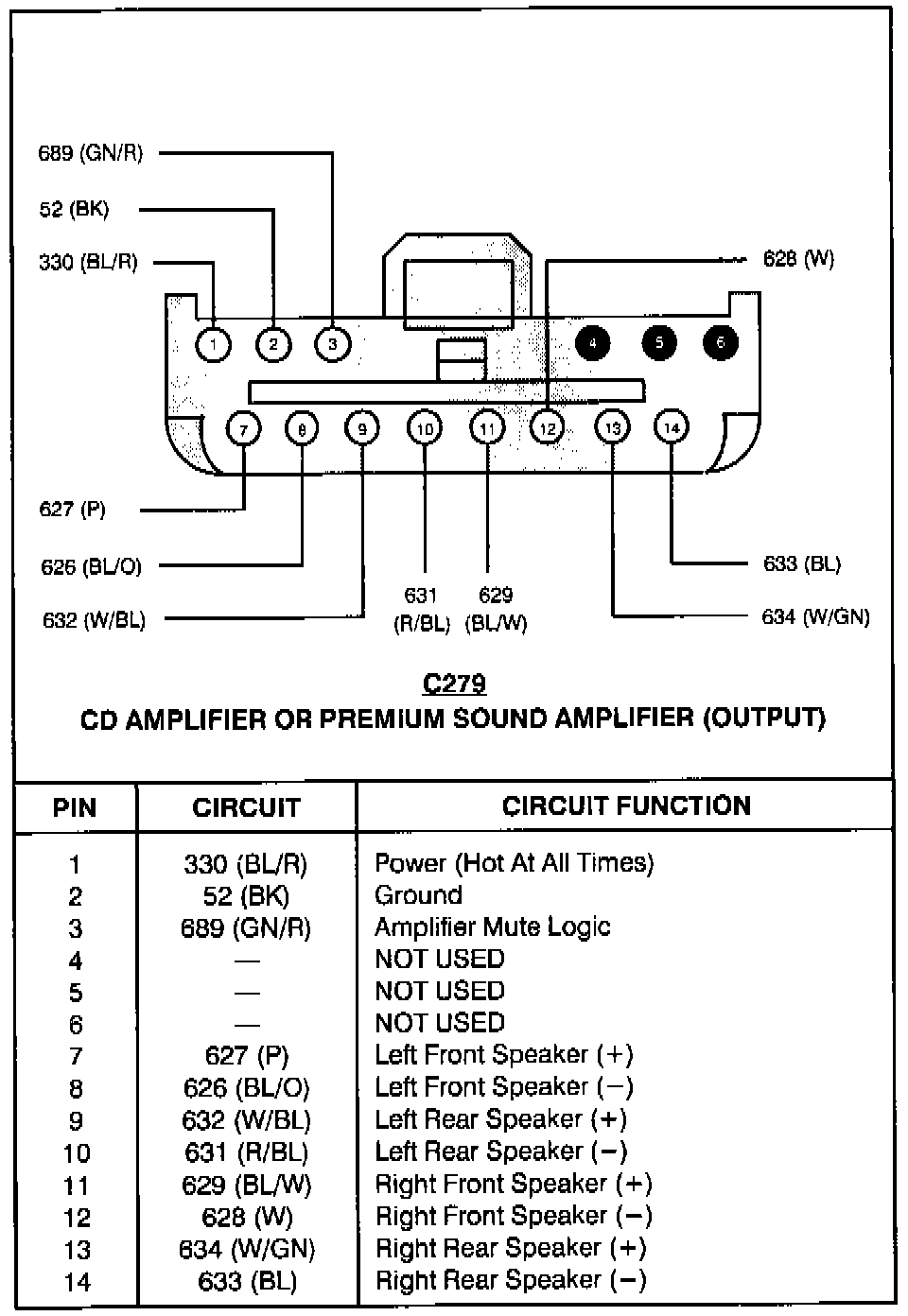

Compact Disc Amplifier Or Premium Sound Amplifier (Output):
