Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compact Disc Player (CD) >> Input

Input

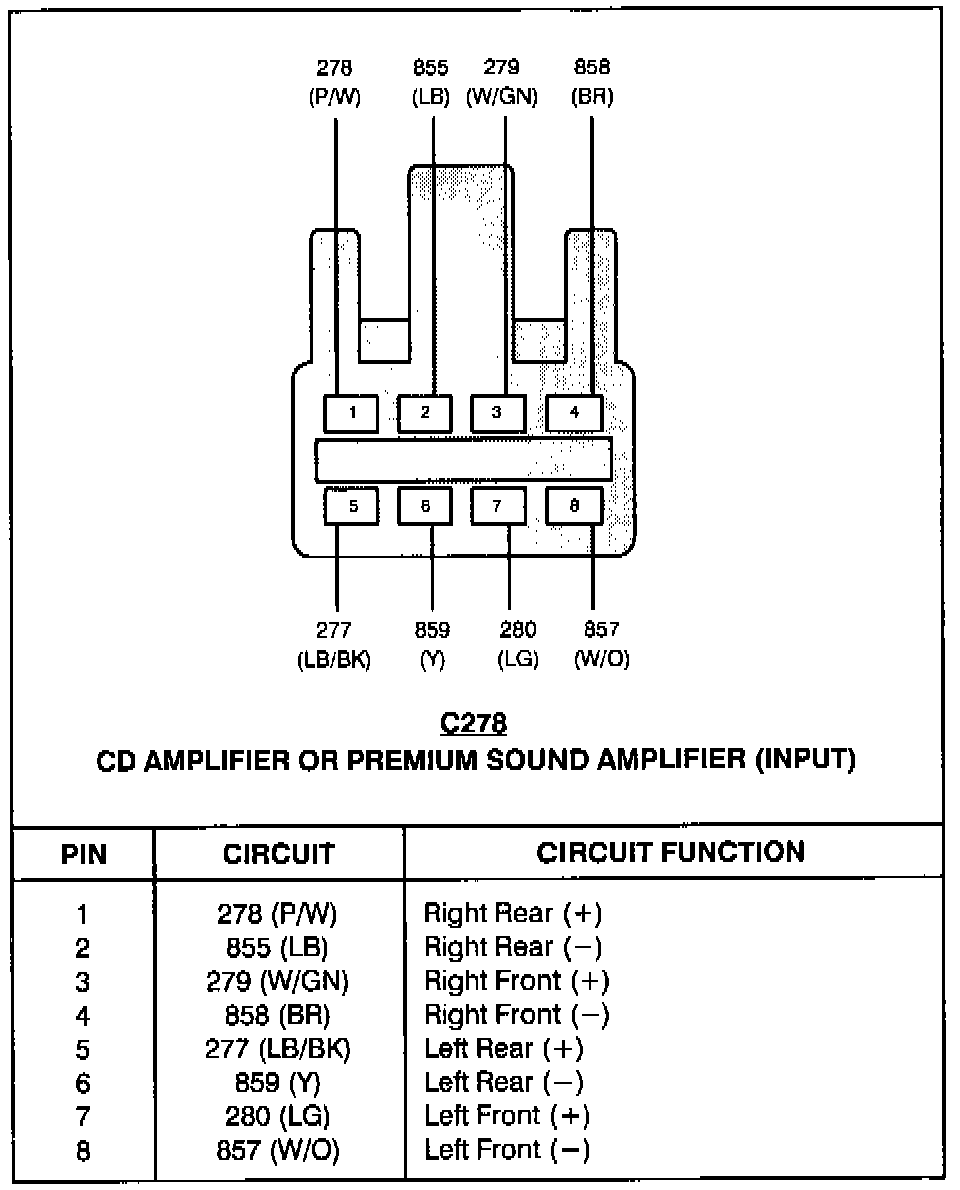

Compact Disc Amplifier Or Premium Sound Amplifier (Input):
