Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> C: Set Speed Fluctuates

C: Set Speed Fluctuates

Test C: Set Speed Fluctuates.:

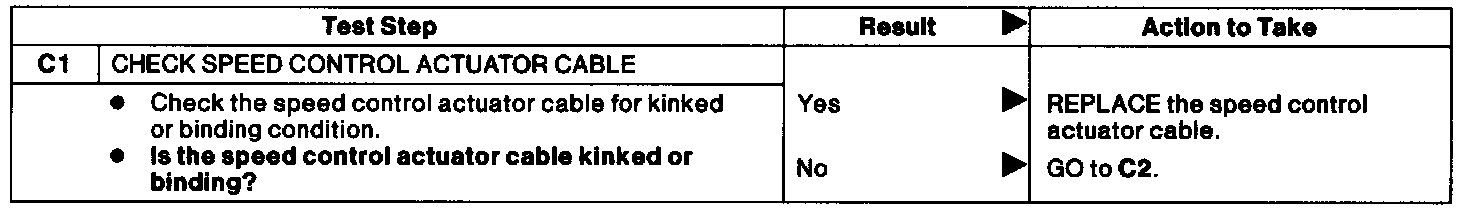

Test C1

Test C: Set Speed Fluctuates.:

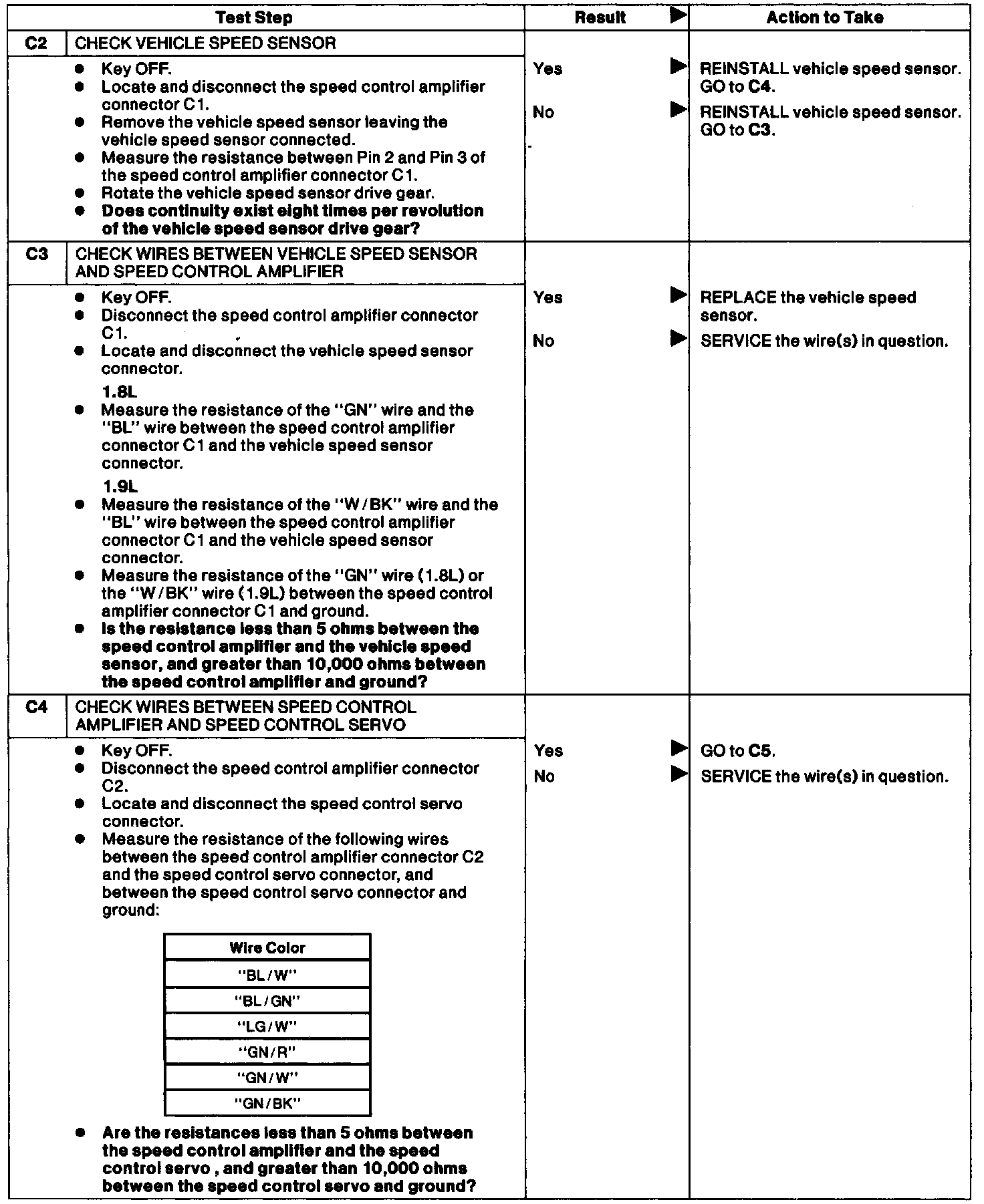

Test C2-C4

Test C: Set Speed Fluctuates.:

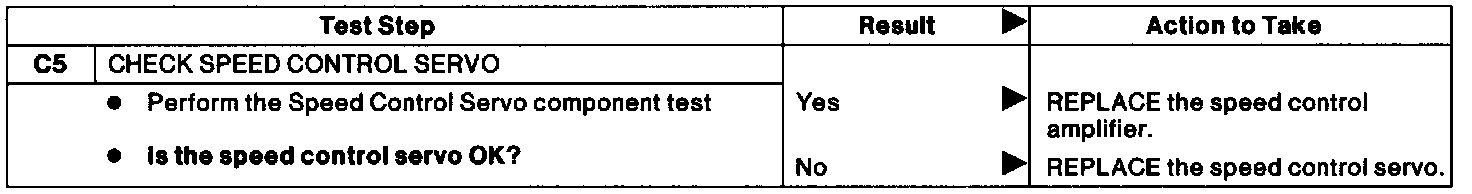

Test C5
