Home >> Mercury >> 1996 >> Tracer L4-110 1.8L DOHC >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> System Diagrams

System Diagrams

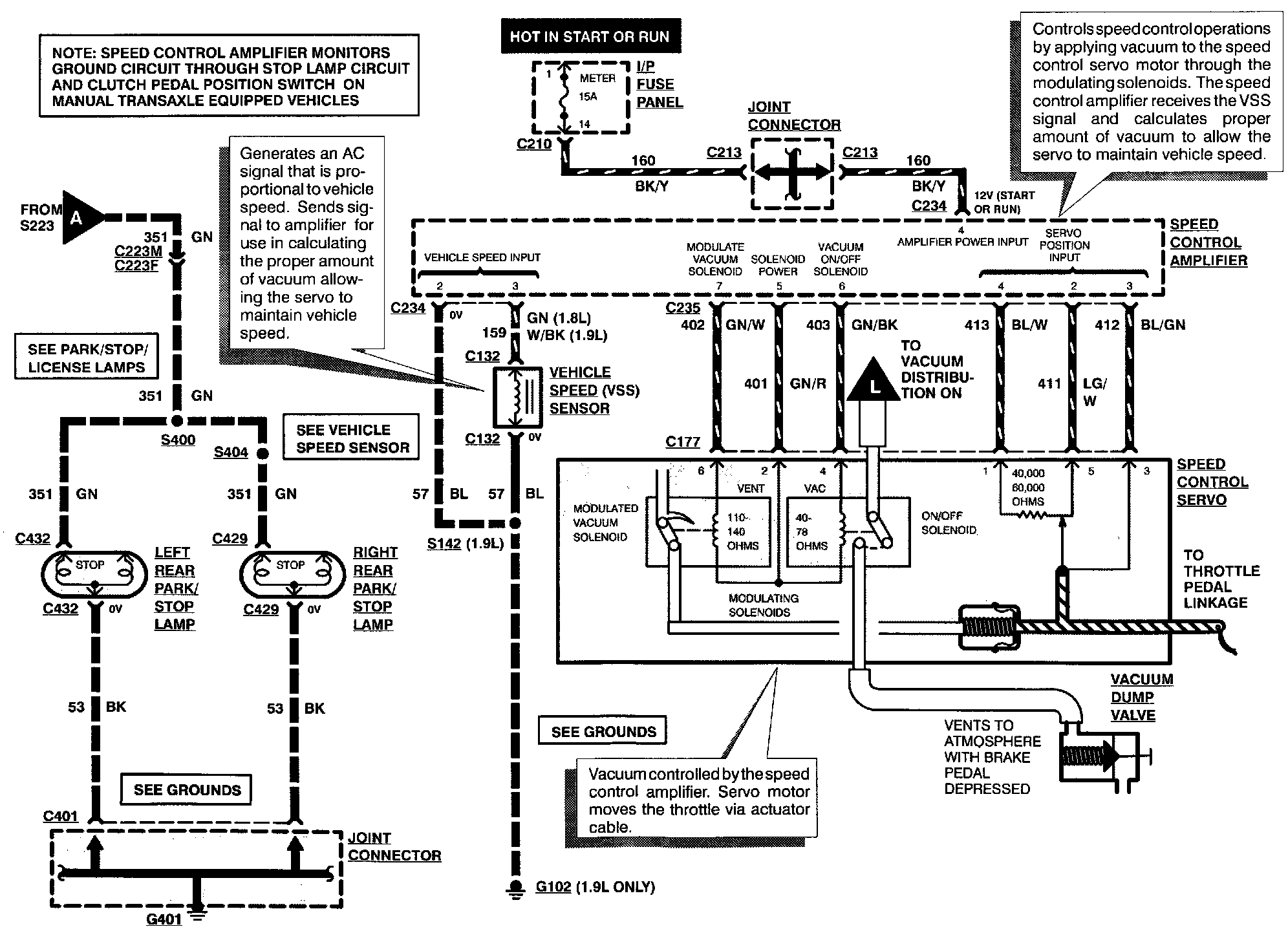

Speed Control (Part 1 Of 2):

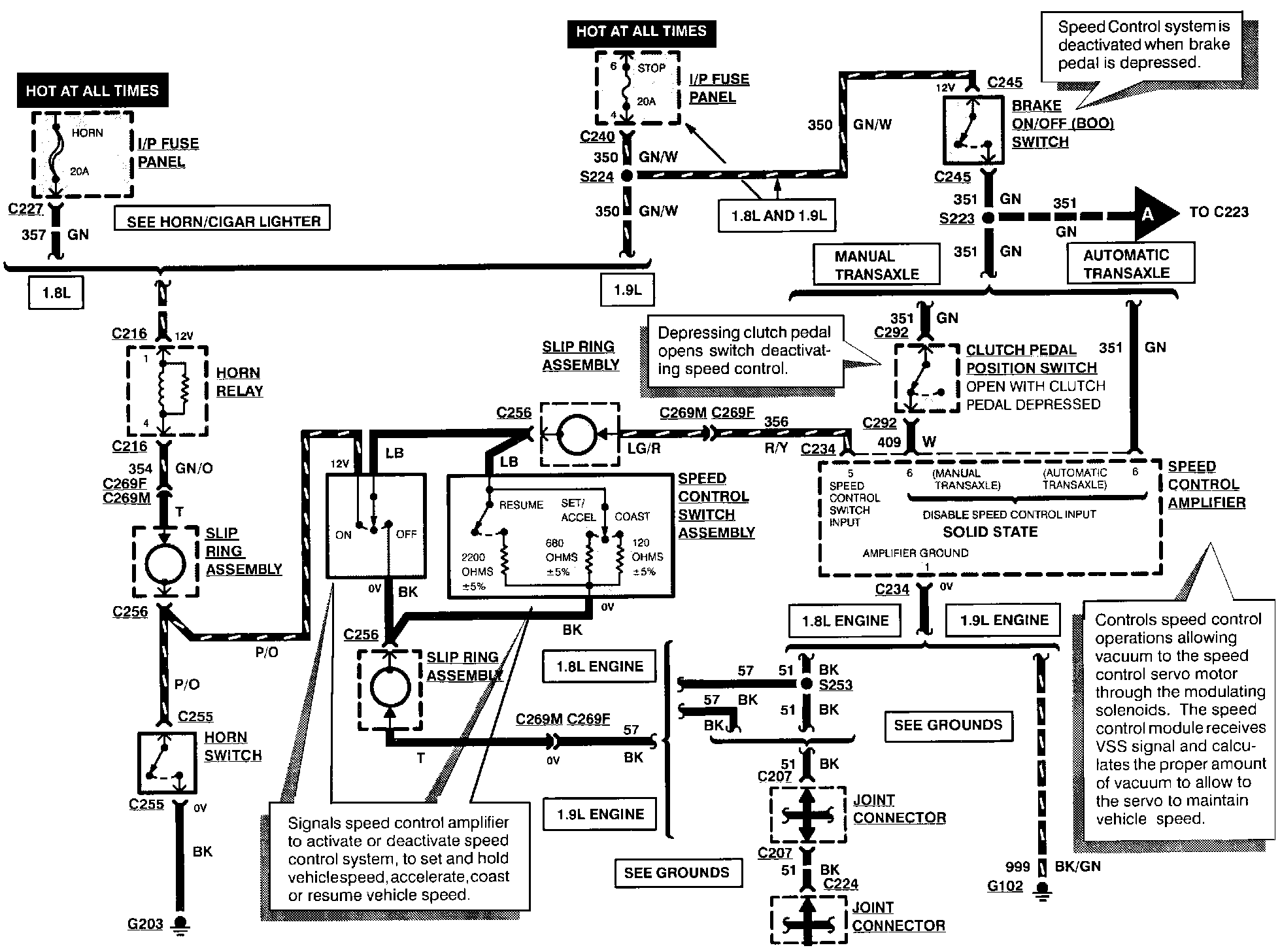

Speed Control (Part 2 Of 2):
