Front

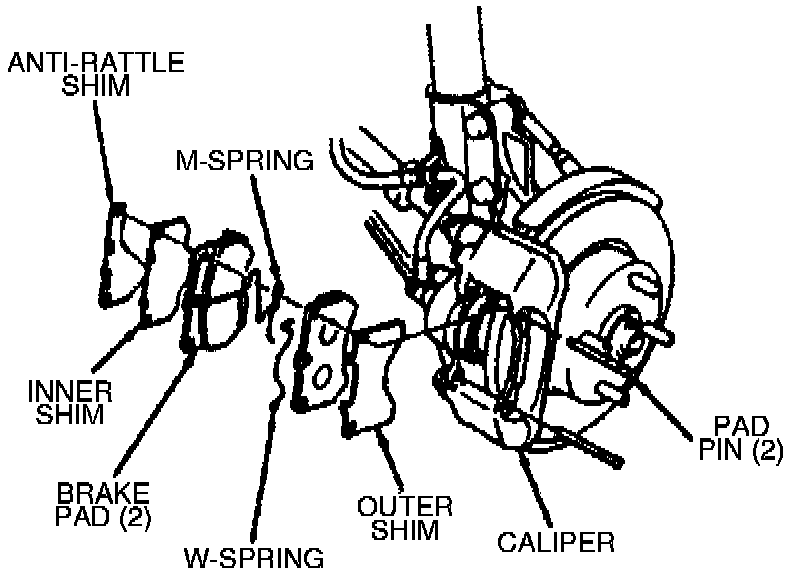

REMOVAL
1. Raise and support vehicle, then remove wheel and tire assembly.
2. Remove two brake pad retaining pins from caliper assembly.





3. Remove "W" spring and brake pad retaining pins, then the "M" spring.
4. Remove brake pads and shims from caliper assembly.

INSTALLATION
1. Push piston fully back into caliper bore.
2. Apply grease between shims and brake pad guide plates, then position brake pads and shims into caliper.
3. Install "M" spring, then the "W" spring.
4. Install two brake pad retaining pins, then wheel and tire assembly.
