Hydraulic Anti-Lock Actuator Assembly

1. Disconnect the hydraulic anti-lock actuator assembly connector C1.

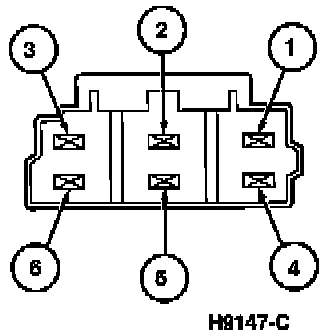

Connector:

2. Measure the resistance between the following terminals of the hydraulic anti-lock actuator assembly:

Solenoid Wires

Left Front 2 and 4
Right Front 5 and 4
Left Rear 3 and 1
Right Rear 6 and 1

3. If all of the resistances are approximately 3 ohms, then return to the Pinpoint Test. Otherwise, replace the hydraulic anti-lock actuator assembly.
