With Floor Shift

REMOVAL

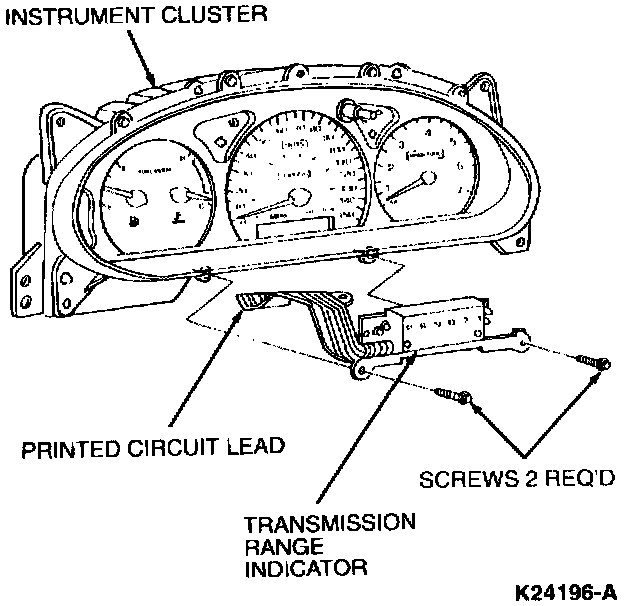

1. Remove instrument cluster.
2. Remove two screws from transmission range indicator.






3. Remove transmission range indicator from instrument cluster.
4. Carefully detach printed circuit lead from instrument cluster.

INSTALLATION
1. To install, reverse Removal procedure.
