Schematic and Connector Views Used With Pinpoint Tests

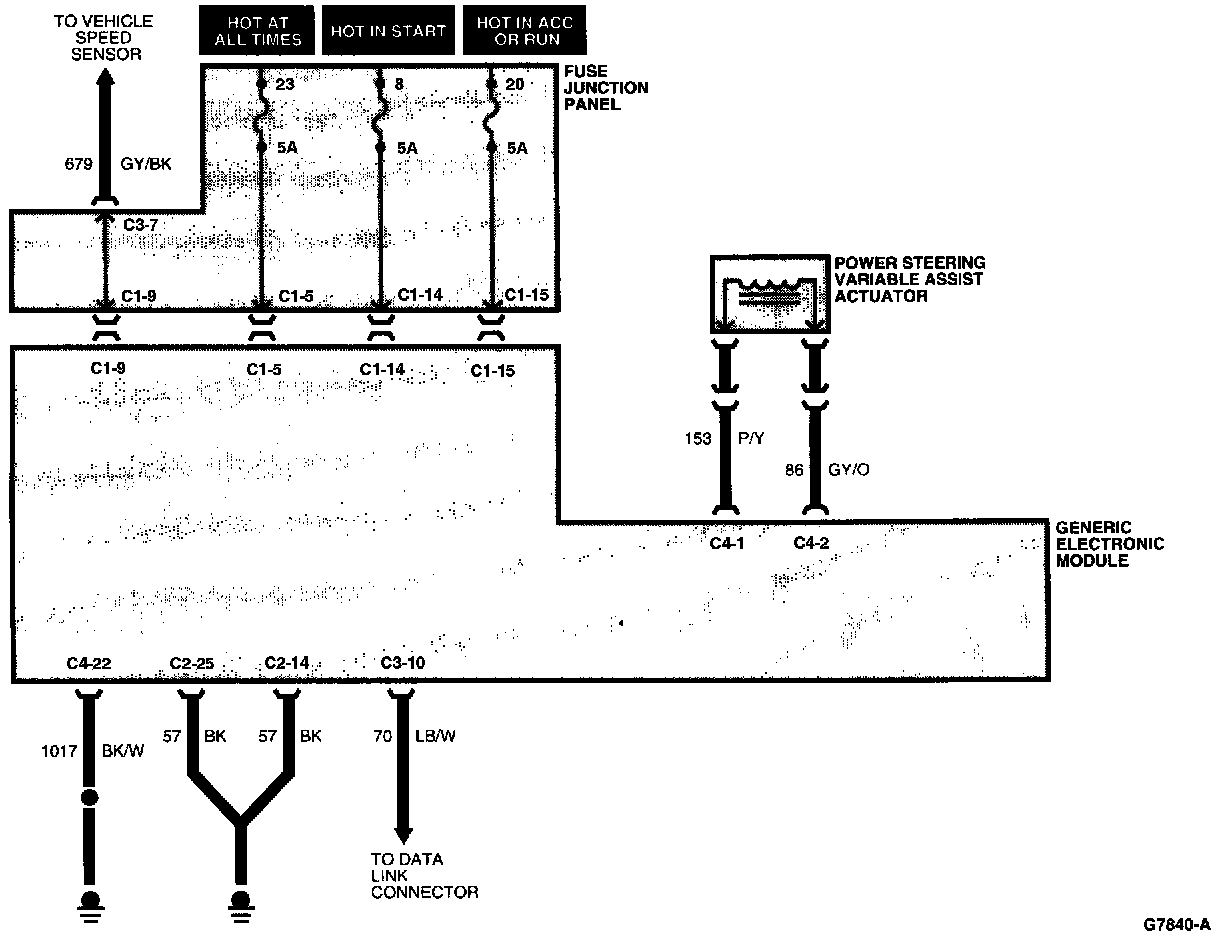

VAPS Schematic:

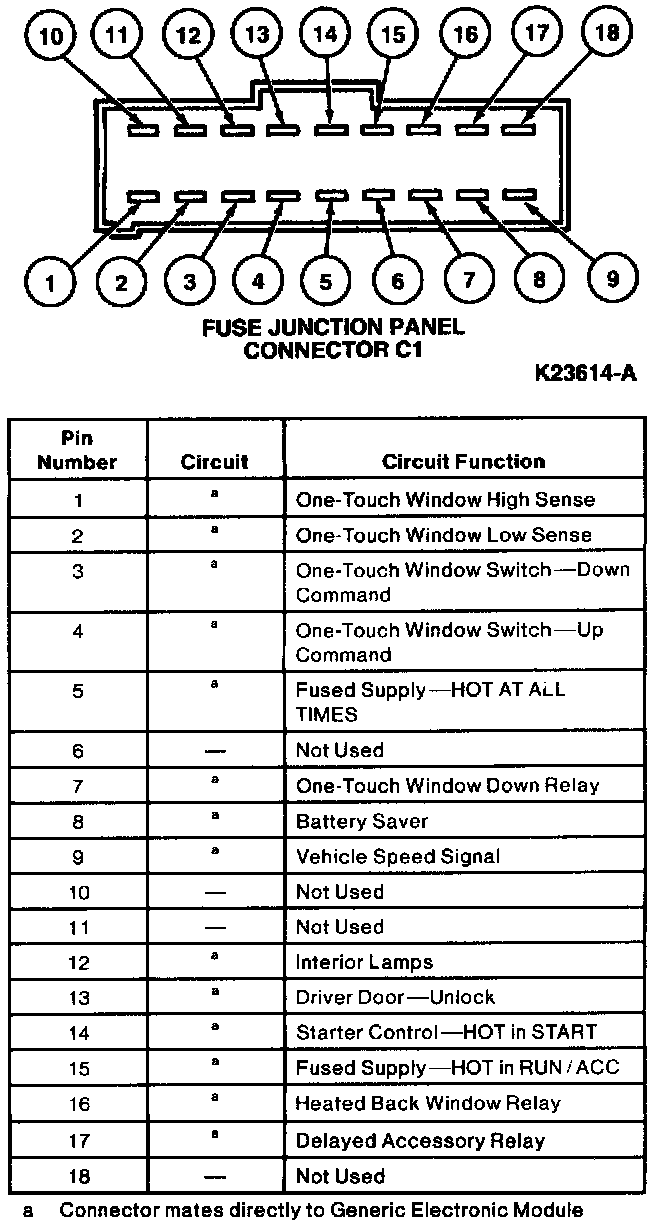

The Fuse Junction Panel Connector C1
(This is the female connector C201)
Diagrams

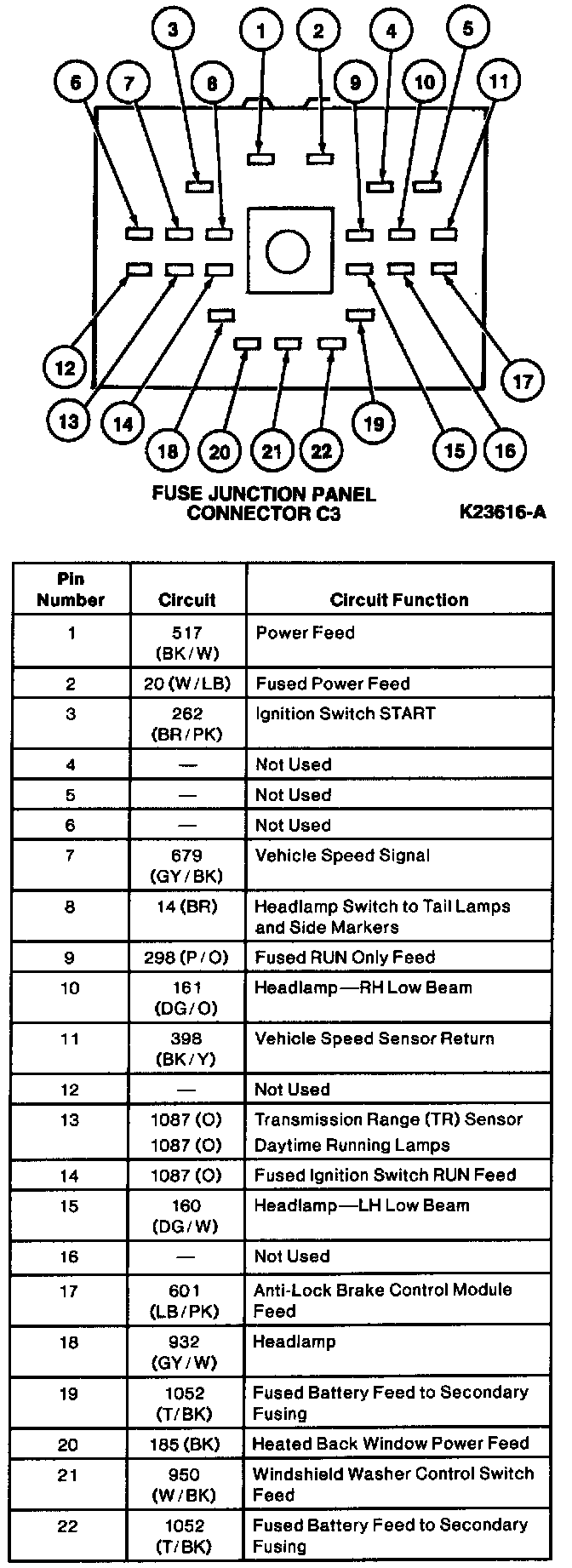

The Fuse Junction Panel Connector C3
(This is also referred to as C225)
Connector Views






The Generic Electronic Module (GEM) Connector C1
(This is the male connector C201)
Electrical Diagrams






The Generic Electronic Module (GEM) Connector C2
(This is also referred to as C248)
Connector Views






The Generic Electronic Module (GEM) Connector C3
(This is also referred to as C236)
General Module






The Generic Electronic Module (GEM) Connector C4
(This is also referred to as C223)
Connector Views

Connector: C144 is at the Variable Assist Power Steering Actuator.

There is no connector view for C144 given. Refer to the wiring diagram.

There is an inline connector between the actuator and the control module:

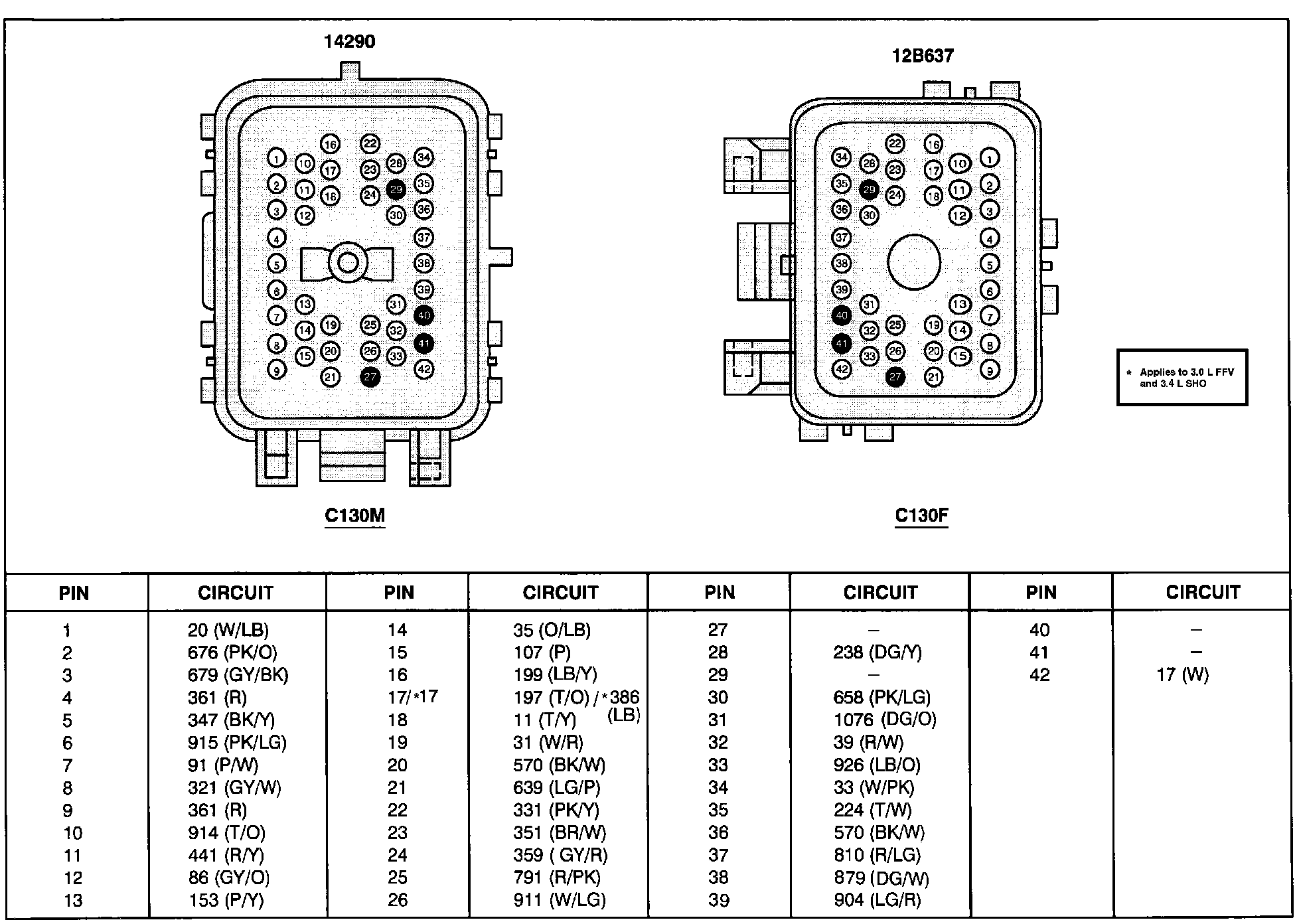

In-Line Connector Faces - C130:

Connector: C130, Color = 'BK', Terminals= '42'
