Impact Sensor
>>
Locations
>>
Right Primary Crash Sensor
Right Primary Crash Sensor

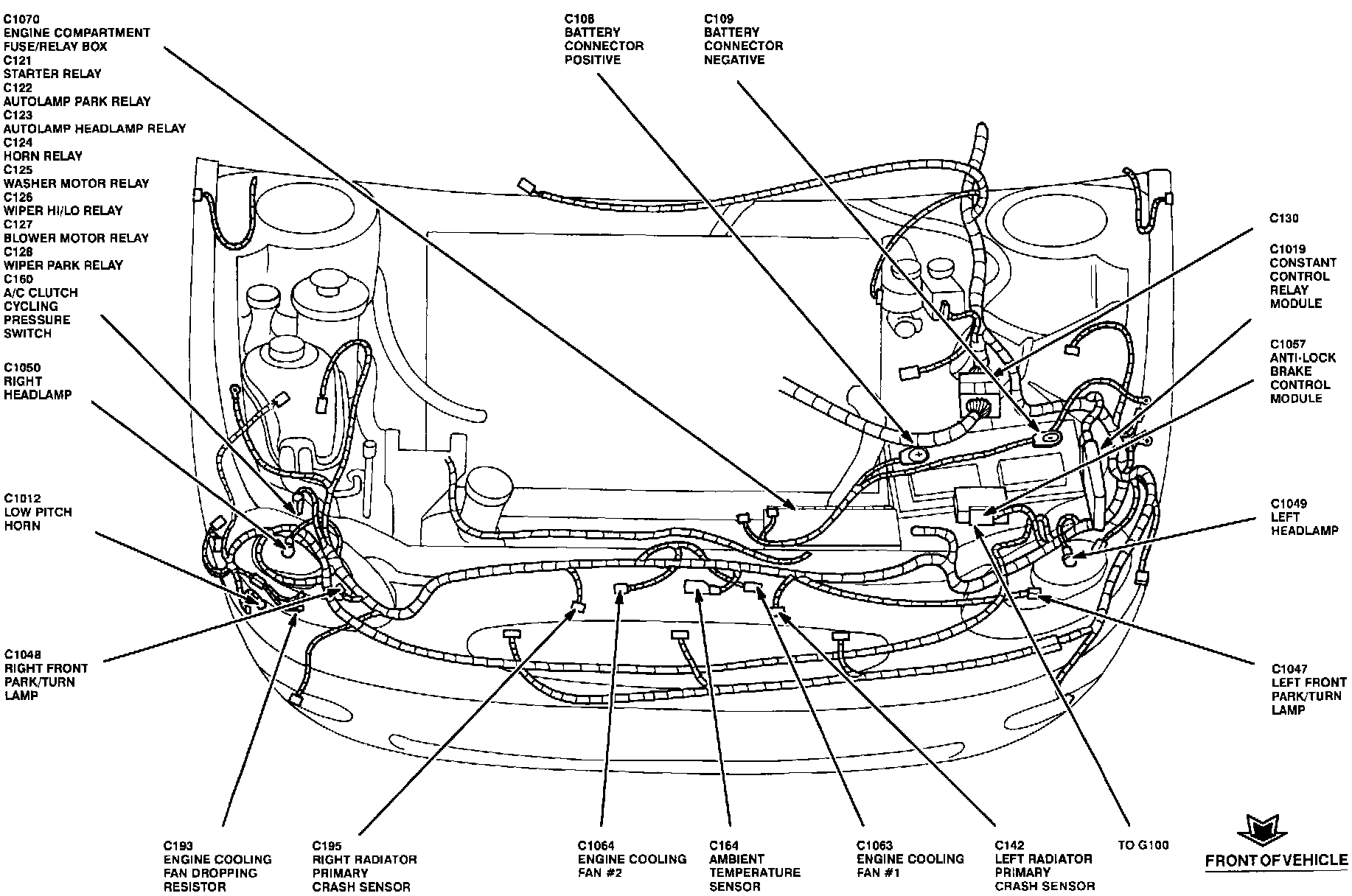

Engine Compartment View:
The Right Radiator Primary Crash sensor is mounted on the right side of the radiator grill.
