Mercury
>>
1996
>>
Sable V6-183 3.0L DOHC VIN S MFI
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>
With AX4N Transmission
With AX4N Transmission

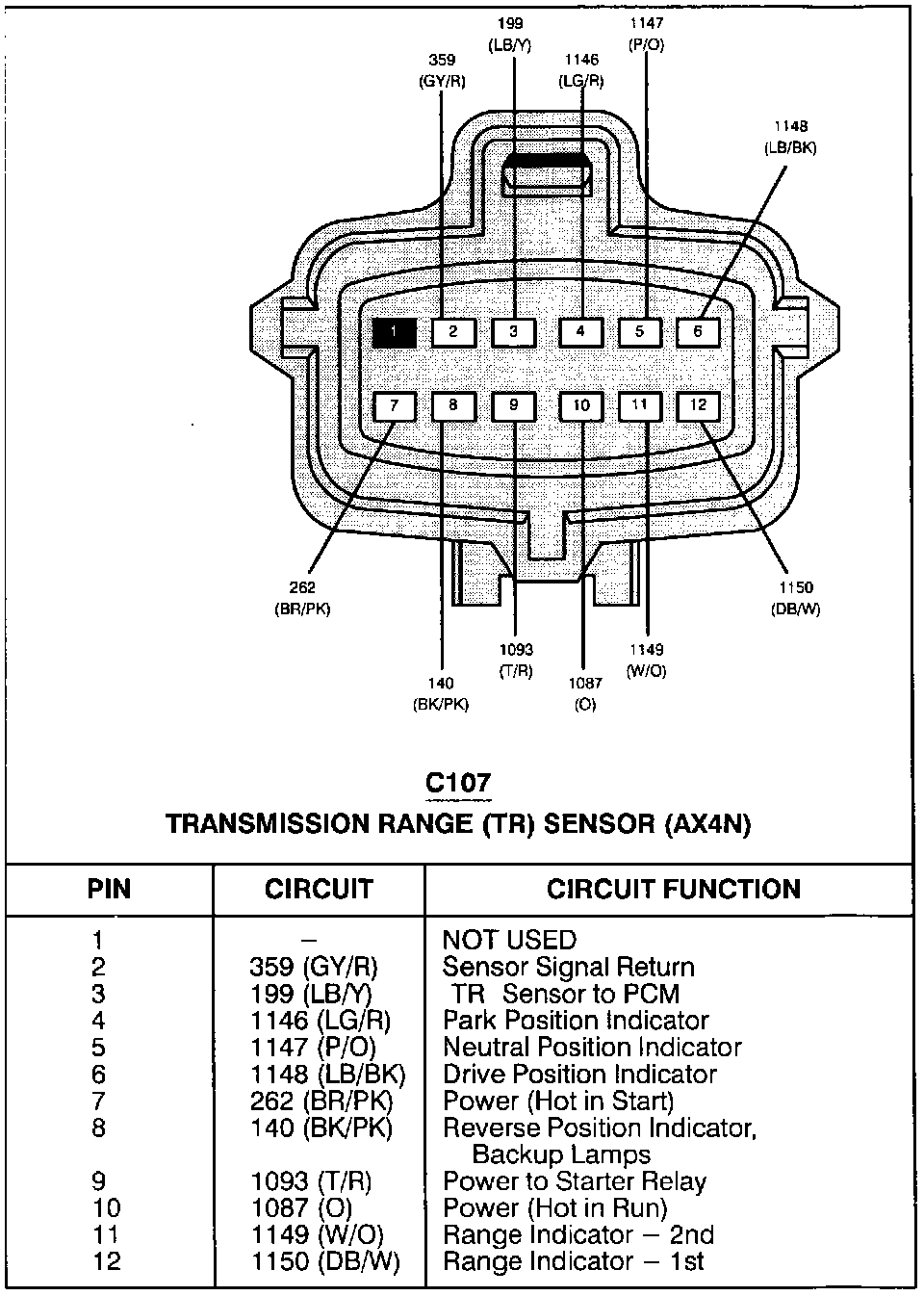

Transmission Range Sensor (AX4N):
