With Autolamps

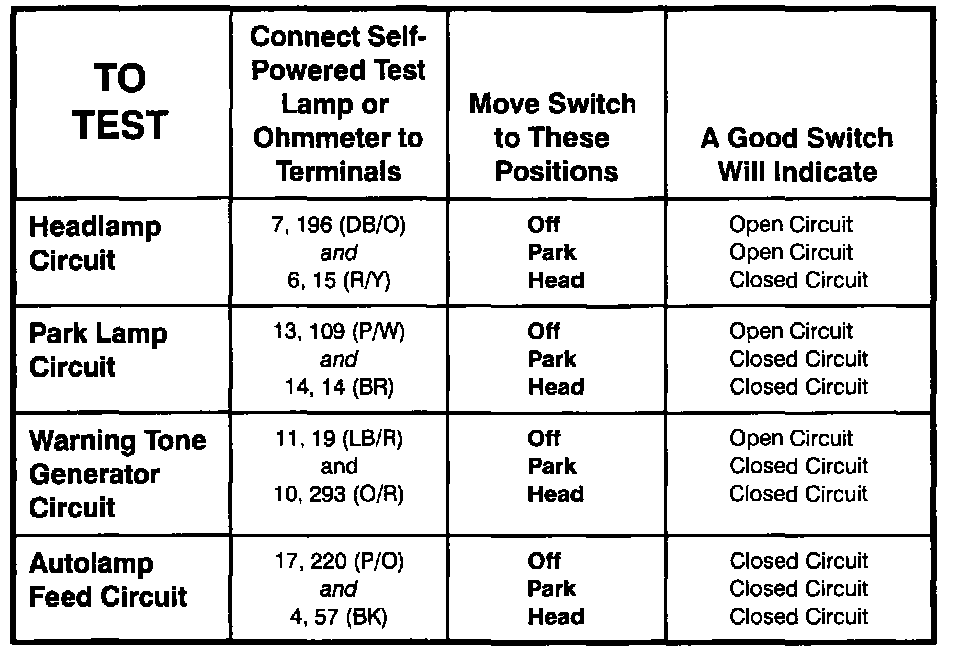

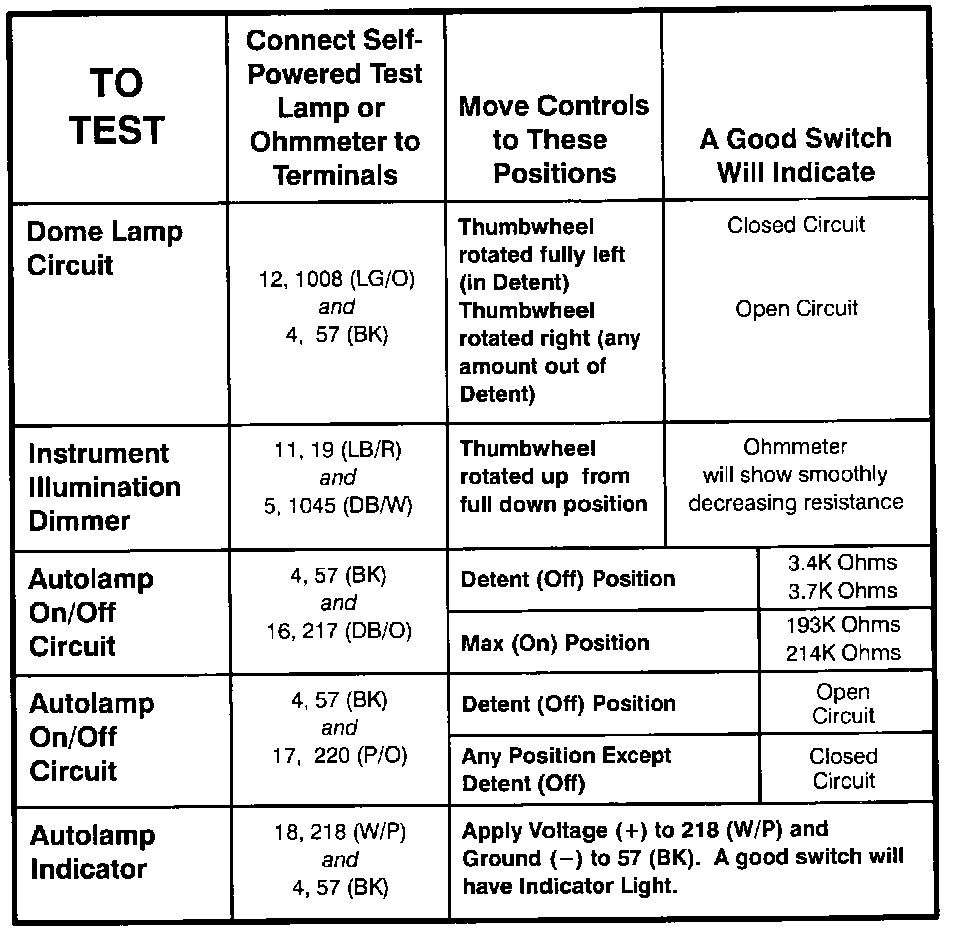

Headlamp Switch/Autolamps- Component Testing Procedure:




Headlamp Switch/Autolamps - Component Testing Procedure:

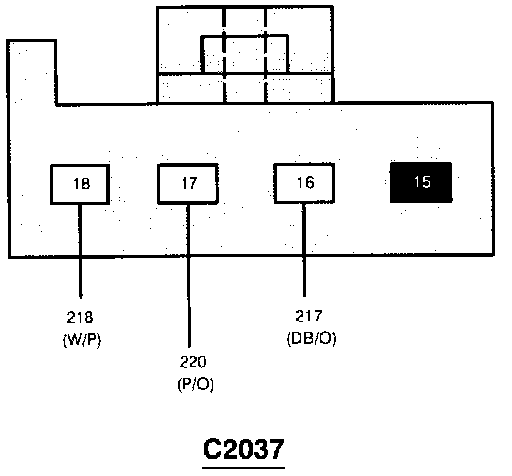

Headlamp Switch/Autolamps - Terminal Locations:




Headlamp Switch/Autolamps - Terminal Locations:

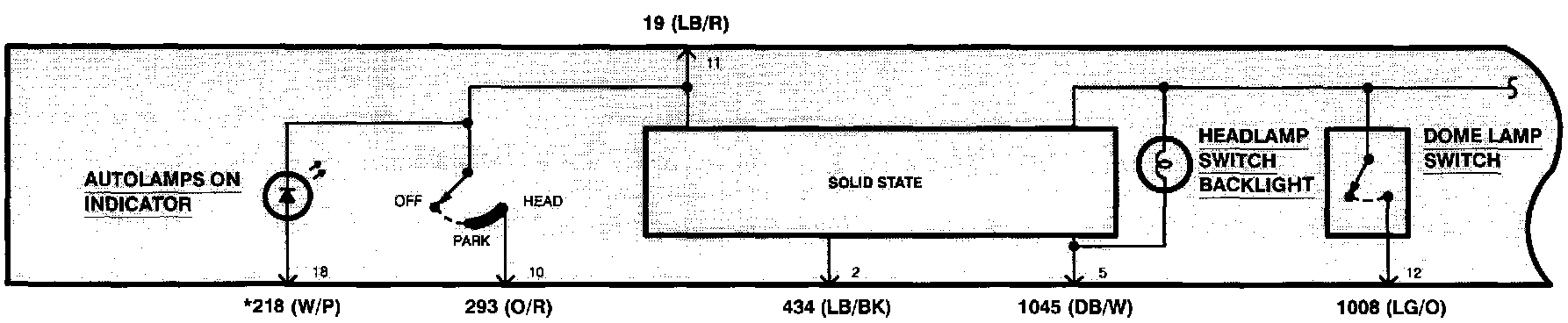

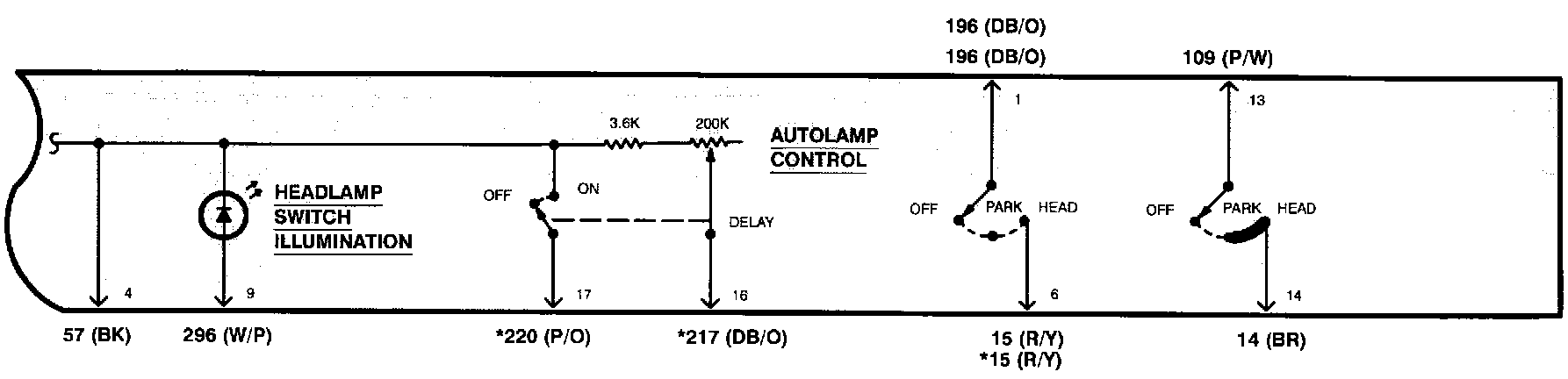

Headlamp Switch/Autolamps - Schematic:




Headlamp Switch/Autolamps - Schematic:
