Temperature Sensor (Gauge): Testing and Inspection

Test D: Coolant Temperature Reads Inaccurately.:

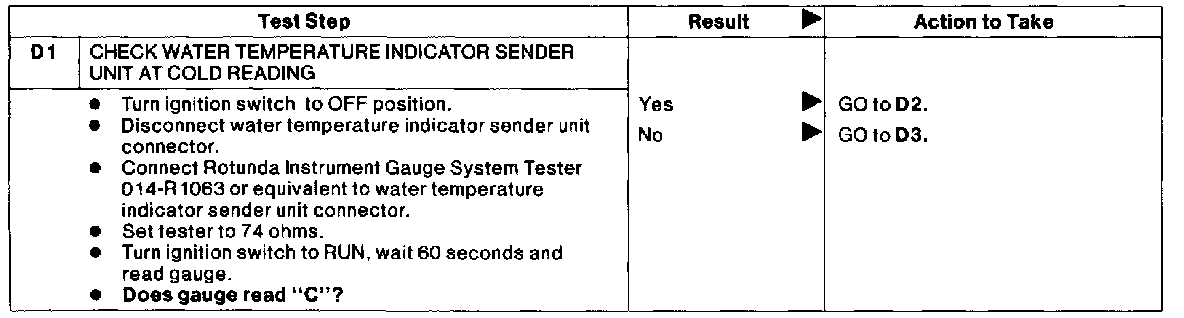

Test D1

Test D: Coolant Temperature Reads Inaccurately.:

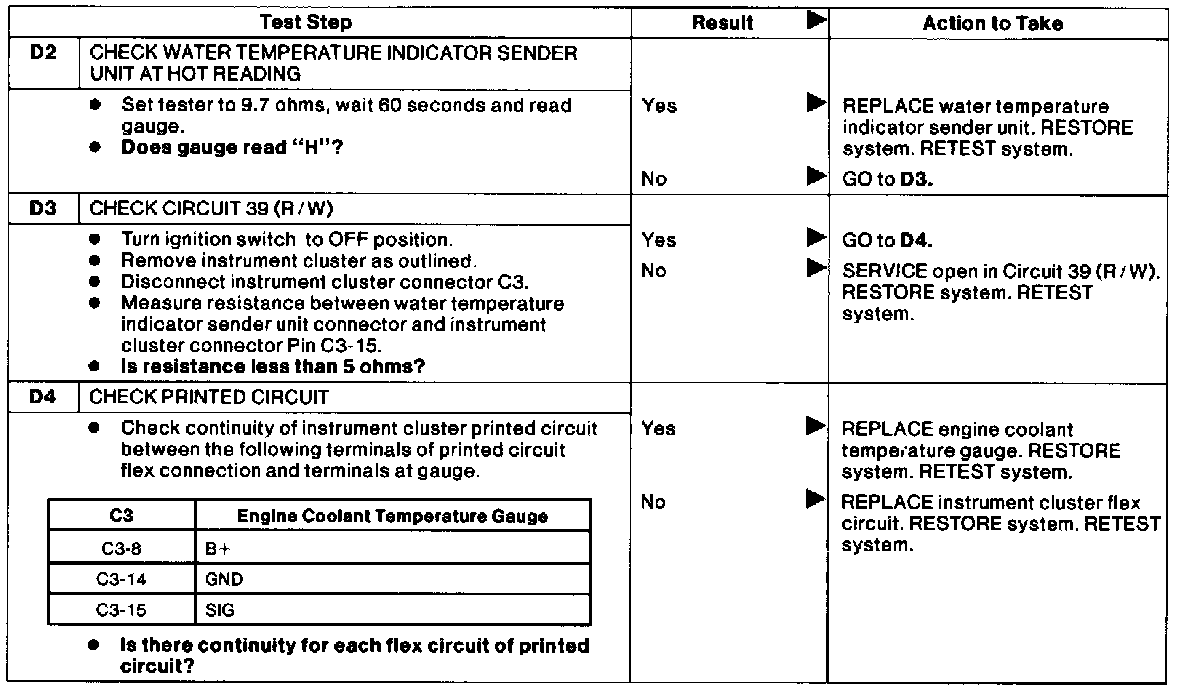

Test D2-D4
