Steering Control Module: Locations

The Variable Assist Power Steering II (VAPS II) system uses the Generic Electronic Module (GEM) to improve steering characteristics.

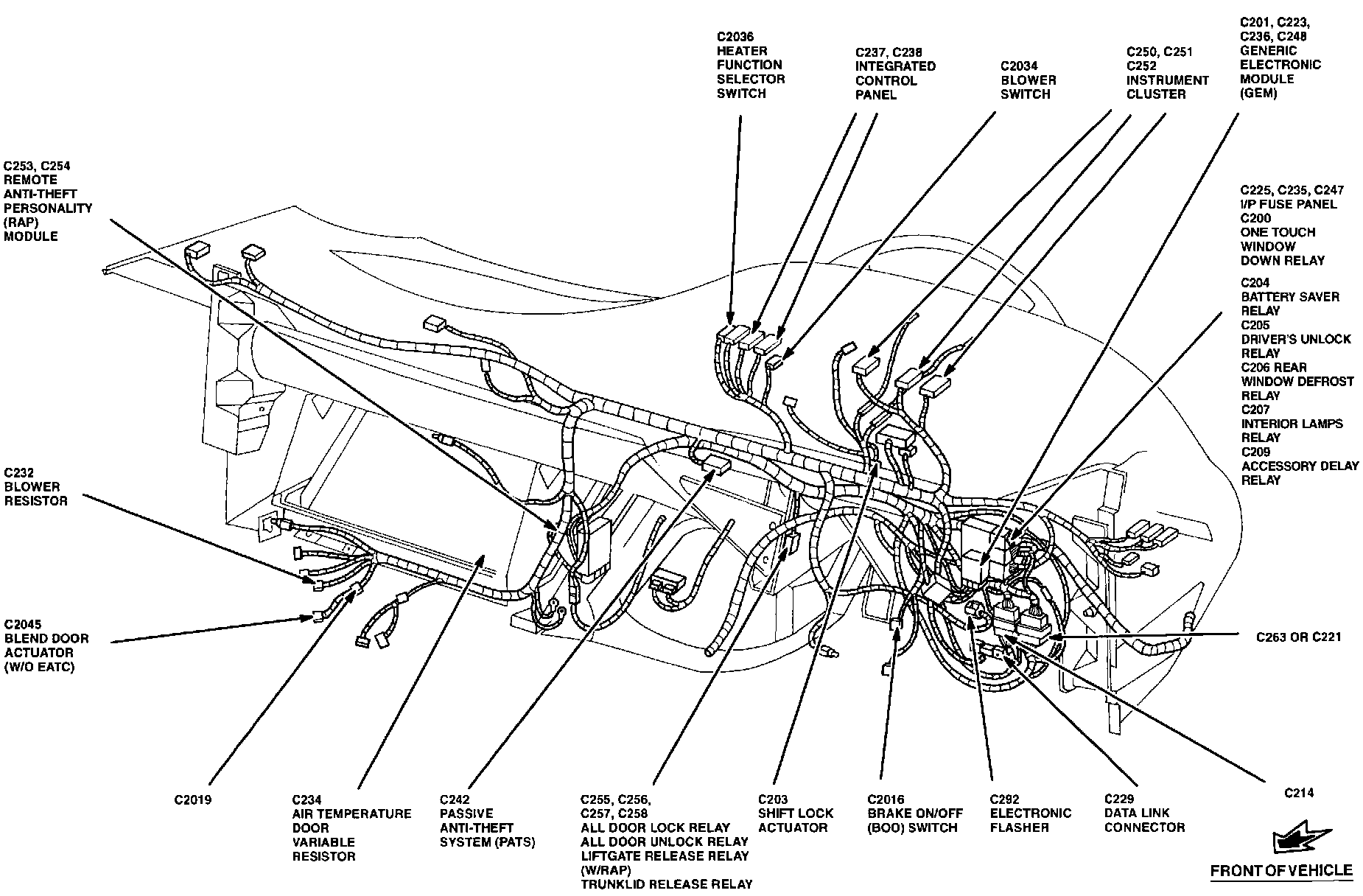

Instrument Panel View:

The Generic Electronic Module is attached to the underside of the instrument panel fuse panel.
