Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Low Fuel Indicator Relay >> Service and Repair

Low Fuel Indicator Relay: Service and Repair

REMOVAL
1. Remove instrument cluster.

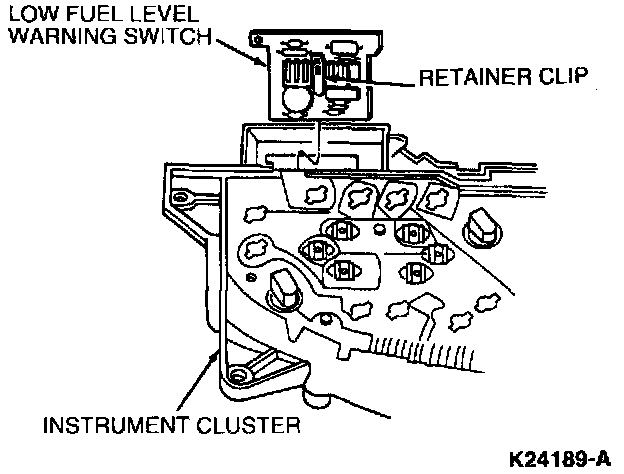

2. Carefully depress retainer clip and remove low fuel level warning switch from instrument cluster.

INSTALLATION
1. To install, reverse Removal procedure.
