Remote Control Module, Audio - Stereo

REMOVAL
1. Remove the integrated control panel.
2. Open the glove compartment, press the sides inward and lower the glove compartment to the floor.

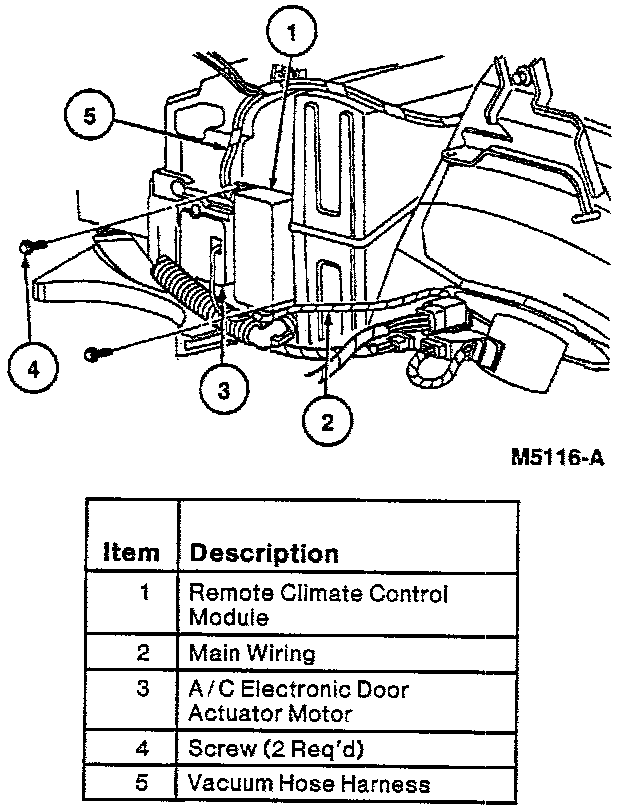

3. Remove the two screws retaining the remote climate control module to the A/C evaporator housing.
4. Disconnect the wiring connector and the vacuum hose harness from the remote climate control module and remove the module from the vehicle.

INSTALLATION
1. Position the remote climate control module near the A/C electronic door actuator motor. Connect the wiring connector and the vacuum hose harness to the remote climate control module.
2. Install the remote climate control module to the A/C evaporator housing with the two retaining screws.
3. Install the glove compartment.
4. Install the integrated control panel.
