Fuel Pump Relay: Service and Repair

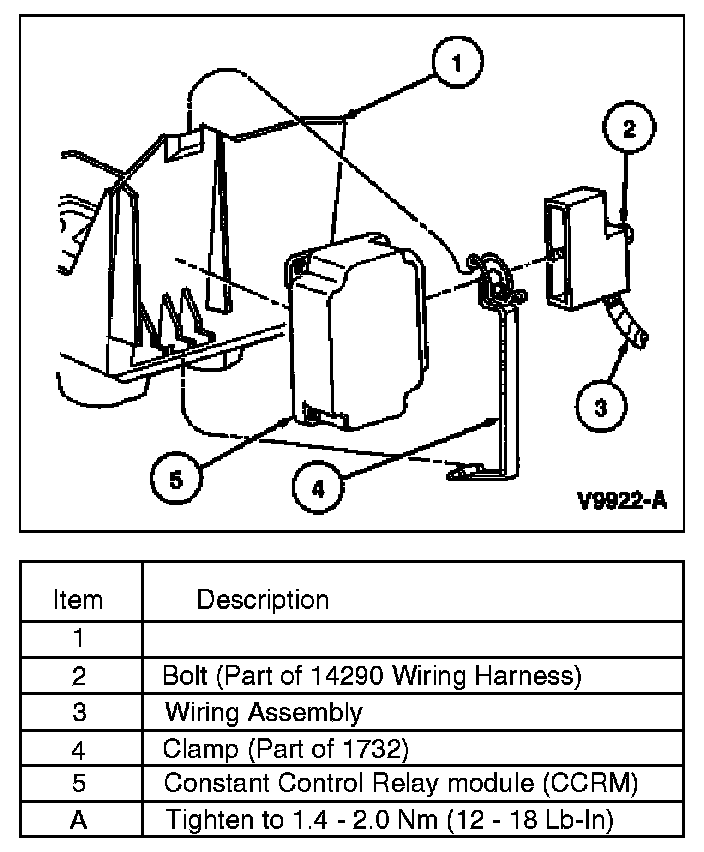

REMOVAL

1. Disconnect battery ground.

2. Lift up and release latch retaining constant control relay module (CCRM) to battery tray.

3. Disengage four locking tags on connector cover and remove cover.


4. Unscrew connector retaining screw and remove connector from CCRM.

INSTALLATION

1. To install, reverse Removal procedure. Tighten connector retaining screw to 1.4 - 2.0 Nm (12-18 lb-in).
