Inertia Fuel Shutoff Switch
>>
Locations
>>
Inertia Switch (Wagon)
Inertia Switch (Wagon)

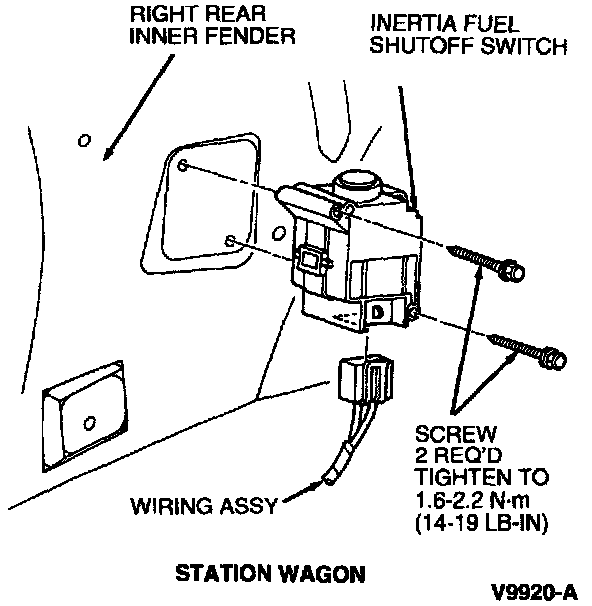

Inertia Fuel Shutoff Switch, Station Wagon:
The inertia fuel shutoff switch is located on the rear inside quarter panel behind a storage compartment door (31560).
The location is clearly marked on the vehicle.
