Sable V6-183 3.0L DOHC VIN S MFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>

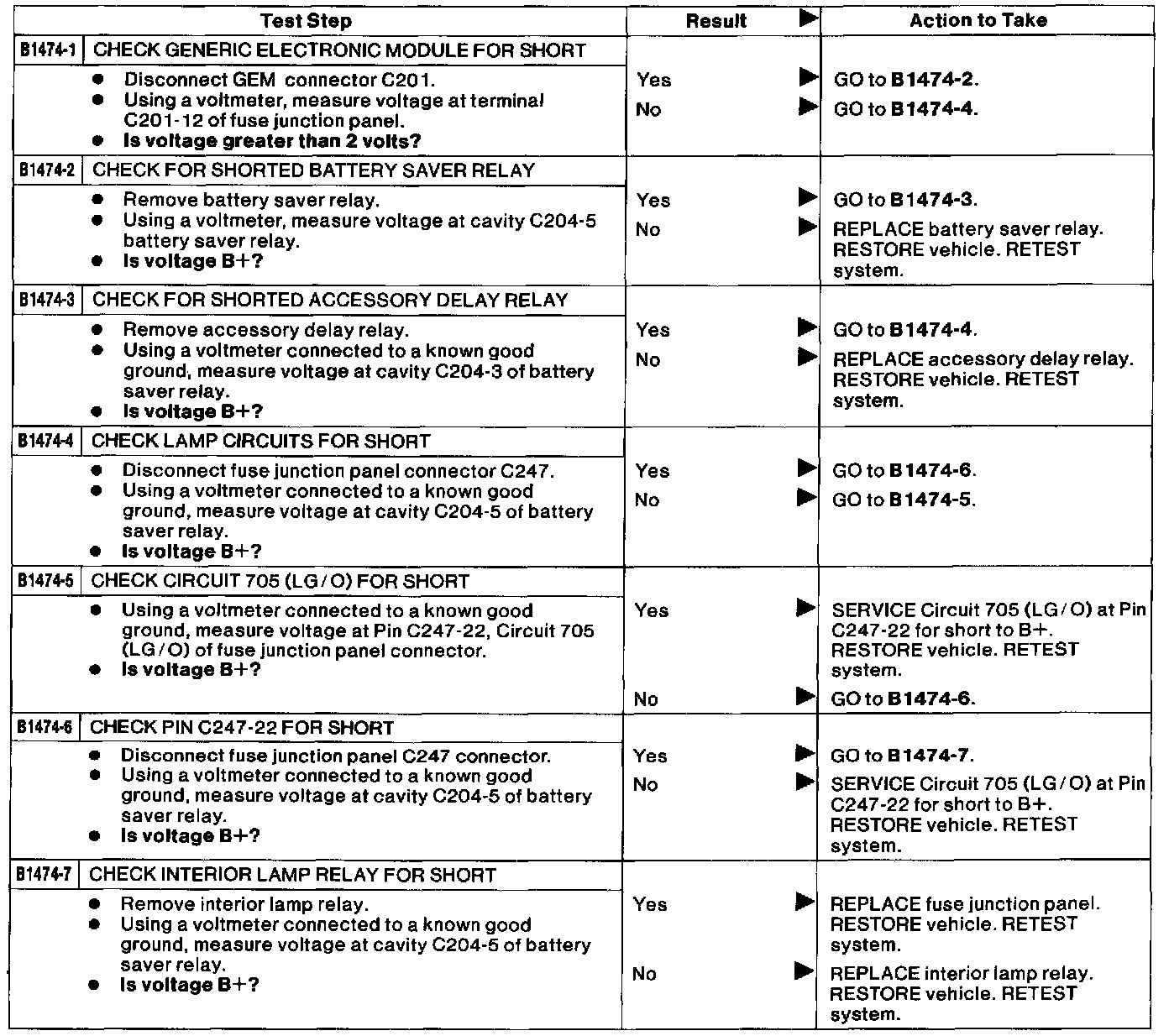

B1474 Battery Saver Relay Power Output Circuit Short to B+
B1474 Battery Saver Relay Power Output Circuit Short to B+
