Instrument Cluster and Panel Lights

INSPECTION AND VERIFICATION
1. Verify the customer's concern by operating the headlamp switch in the PARK position. Rotate the panel dimmer switch fully up without turning on dome lamps to duplicate the condition.

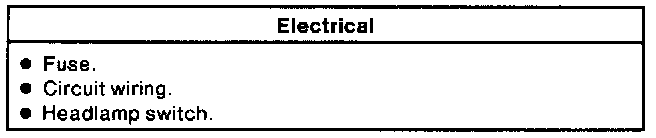

2. Inspect to determine if any of the electrical concerns apply.
3. If inspection reveals obvious concern(s) that can be readily identified, service as required.
4. If the concern(s) remain after the inspection, determine the symptoms and go to the Symptom Chart. Symptom Related Diagnostic Procedures
