Mercury
>>
1996
>>
Sable V6-183 3.0L DOHC VIN S MFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Schematic (Conventional)
>>

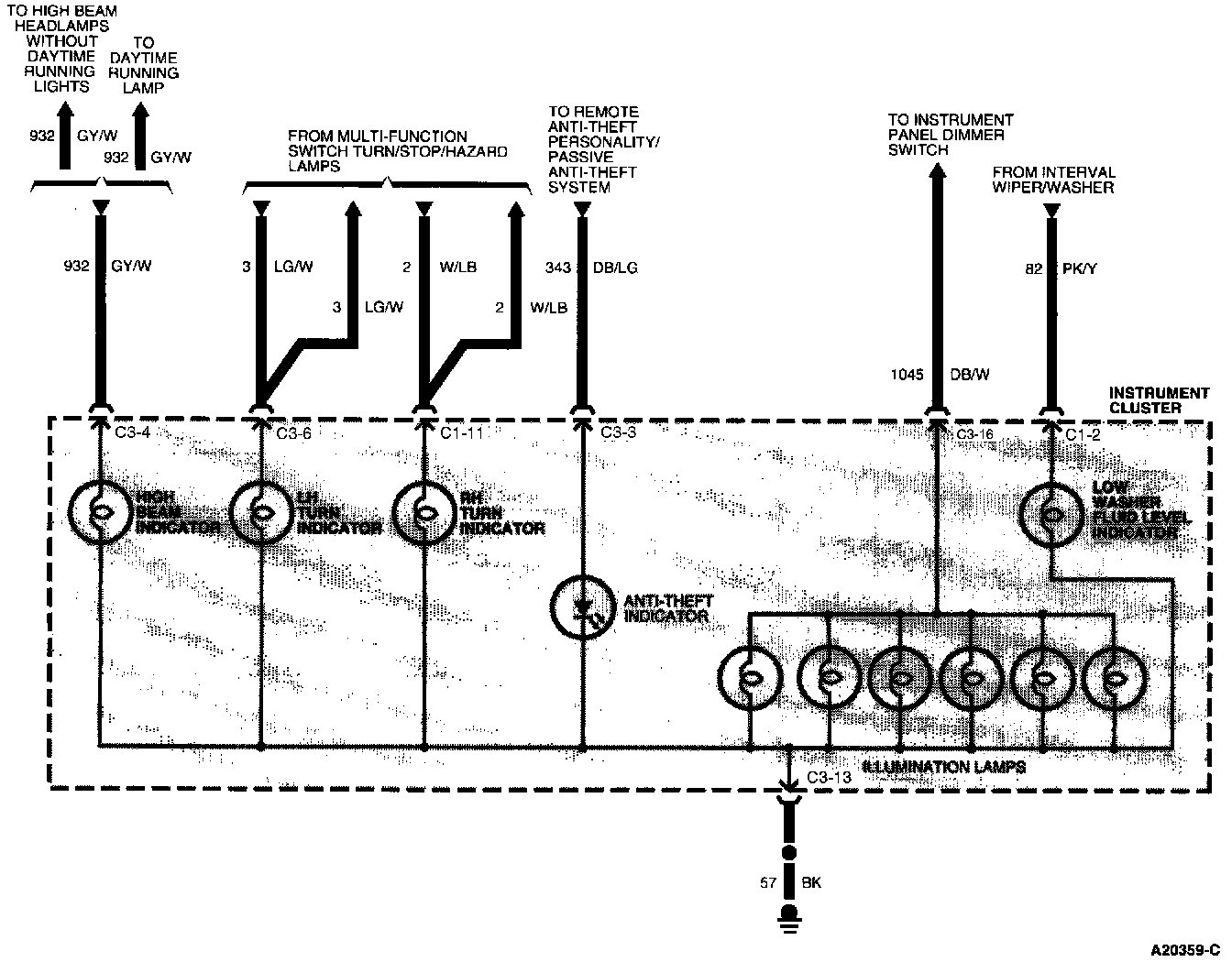

Instrument Cluster Lighting
Instrument Cluster Lighting
