Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Component Tests and General Diagnostics >> Conventional (Connector) >> Instrument Cluster Connector C2 (With Floor Shift)

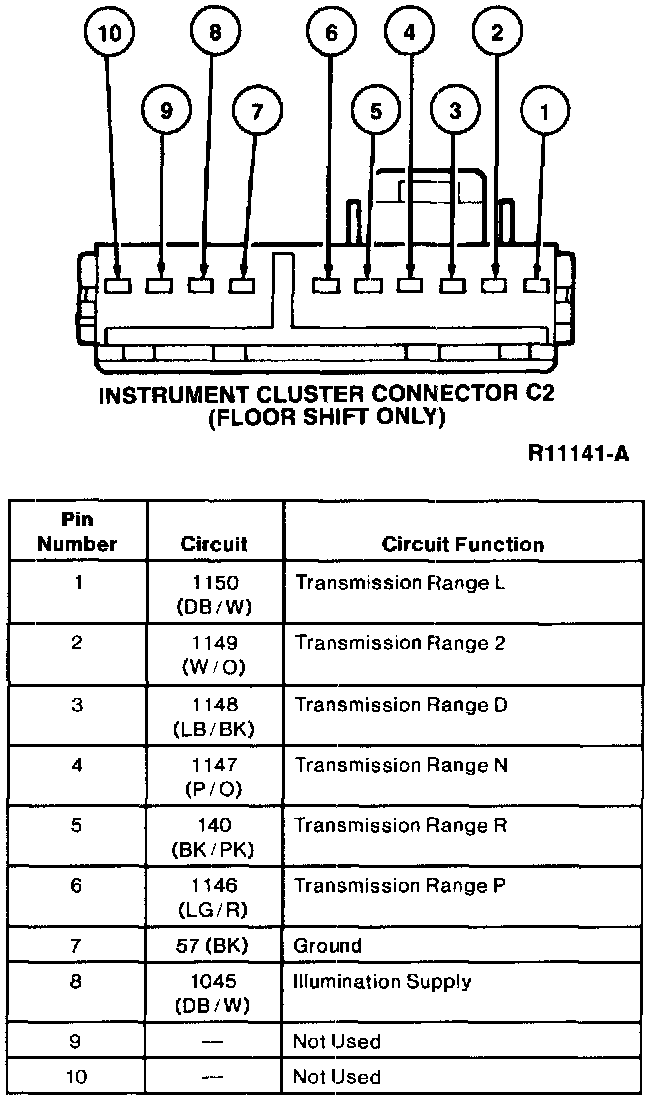

Instrument Cluster Connector C2 (With Floor Shift)
