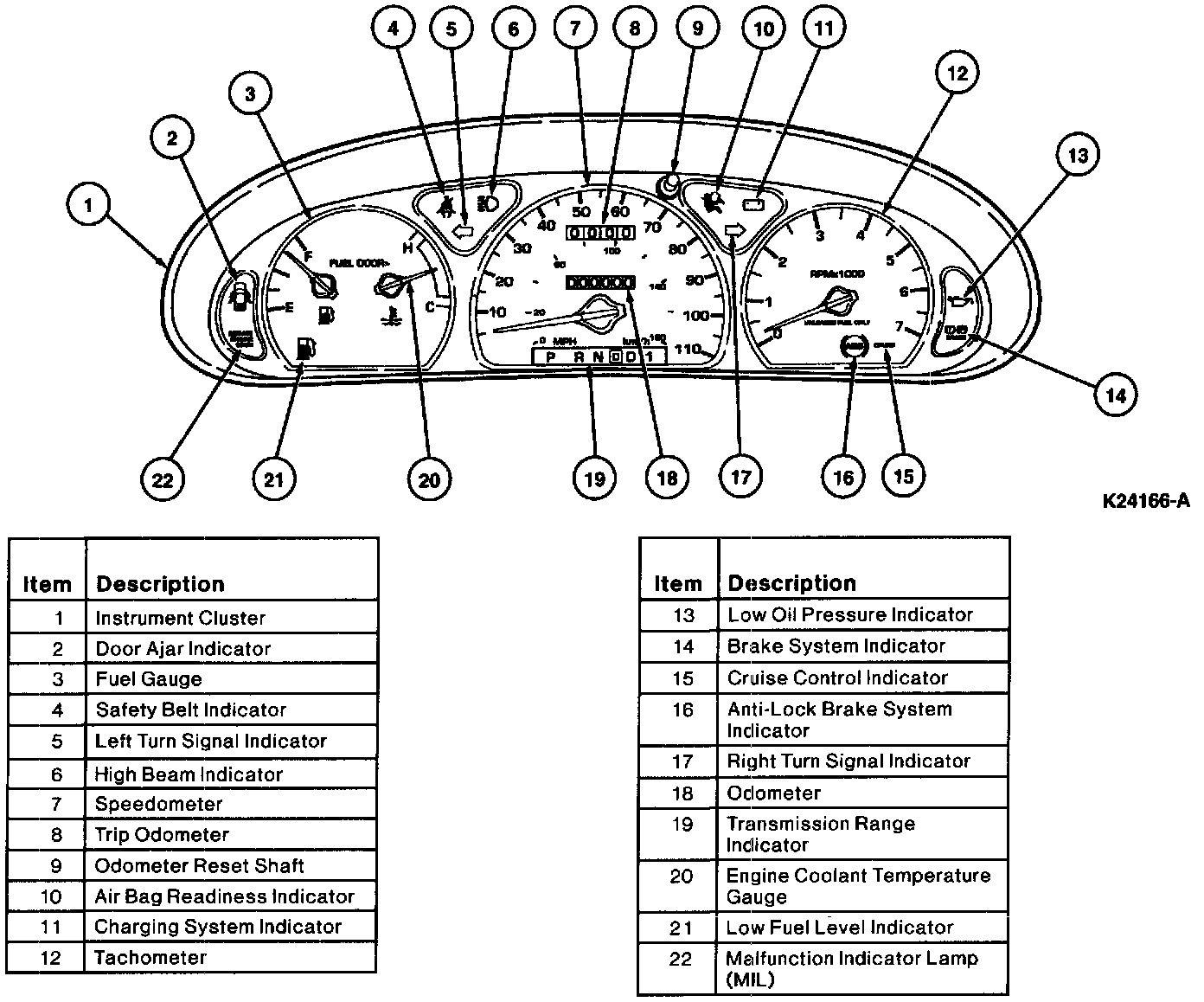

GL and GS Models

The instrument cluster system consists of the combination of electro-magnetic components as follows:
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Vehicle odometer
6. Trip odometer
7. a transmission range indicator
8. an odometer reset shaft
9. an anti-slosh module with low fuel warning
The instrument cluster contains the following indicators and warning indicators:
1. charging system
2. safety belt
3. BRAKES
4. high beams
5. oil pressure indicators
6. left turn/right turn signal
7. LOW COOLANT
8. low fuel
9. REAR LAMP OUT
10. SERVICE ENGINE SOON (Malfunction Indicator Lamp - MIL)
11. ANTI-LOCK (ABS)
12. air bag
13. door ajar
14. low washer fluid
15. CRUISE
16. overdrive off (O/D OFF)
17. THEFT (alarm status)
