With GL or GS Models

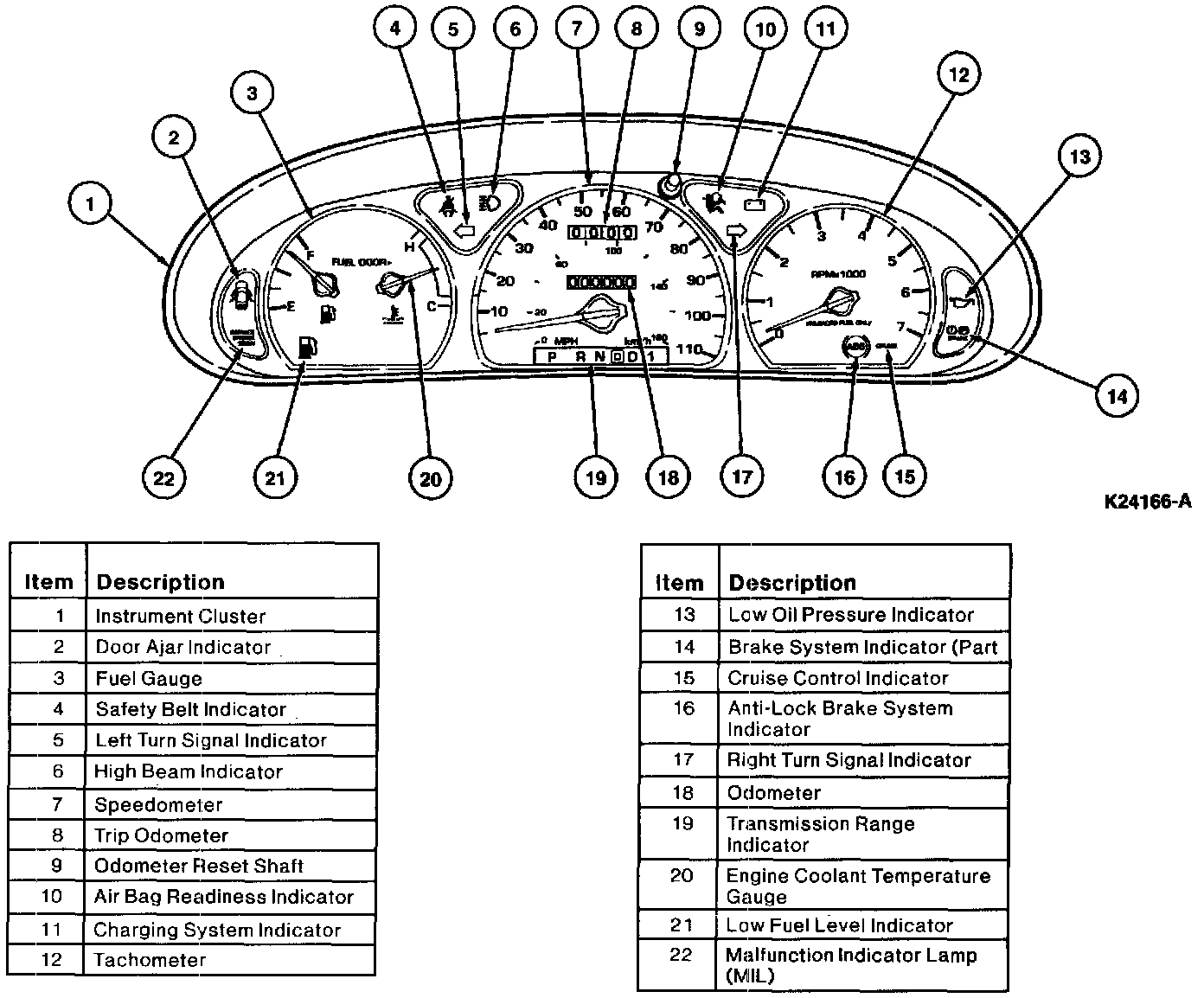

DESCRIPTION AND OPERATION






1. The instrument cluster is operational only when the ignition switch is in RUN.
2. The instrument cluster illumination is powered through the instrument panel dimmer switch, located on the LH side of the instrument panel .
3. The instrument cluster will not illuminate when the headlamp switch is in the OFF position.
4. The system is provided power by Circuit 1045 (DB/W).
5. Circuit protection is provided by Fuse 58 (5A).
6. Ground is provided by Circuit 57 (BK).
