Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Manual A/C-Heater >> E: No Operation In All Temperature Settings >> E4-E5

E4-E5

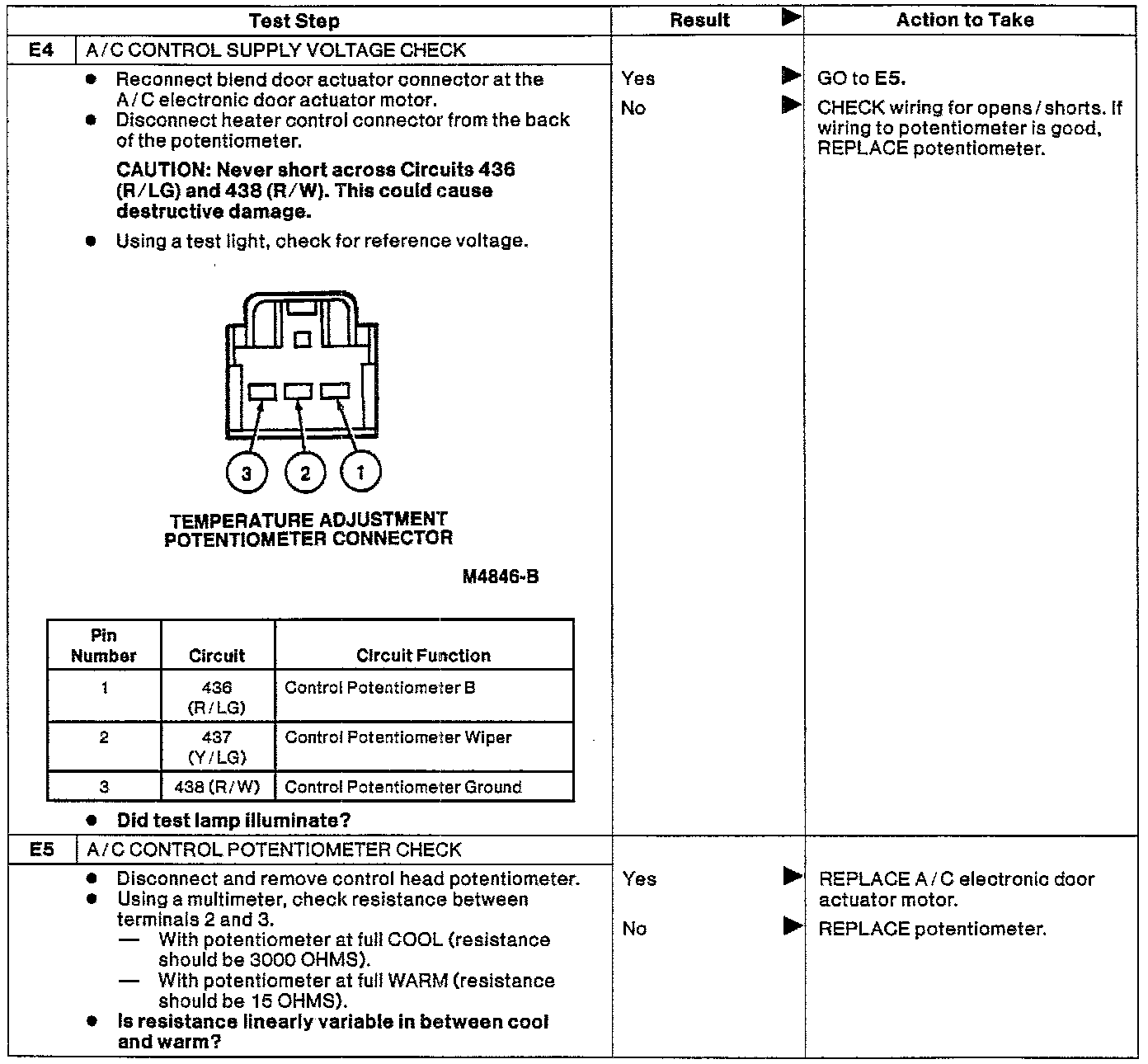

Pinpoint Test E4-E5 - No Operation In All Temperature Settings:
