Airflow Schematic and Vacuum Control Charts

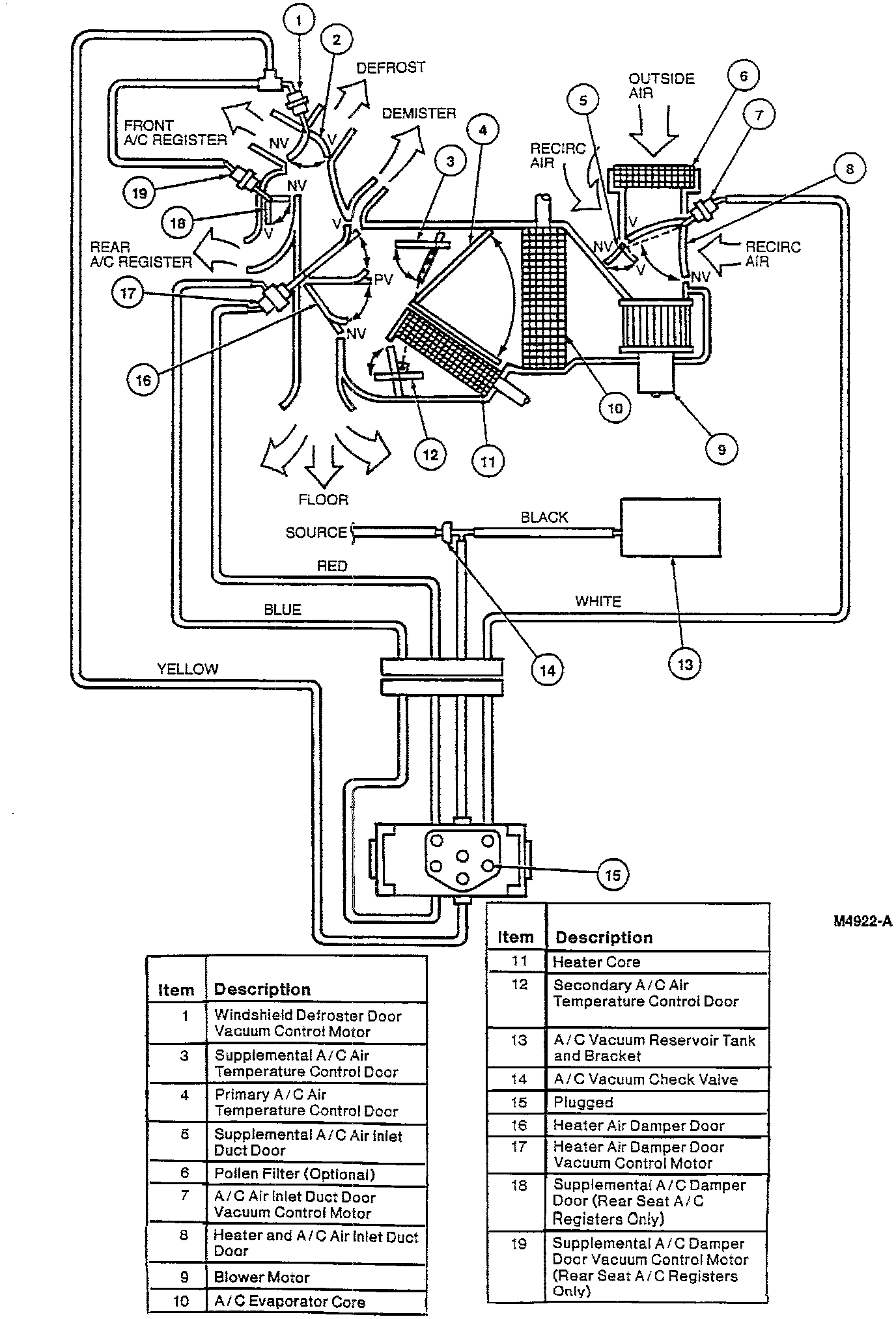

A/C Vacuum Control Diagram

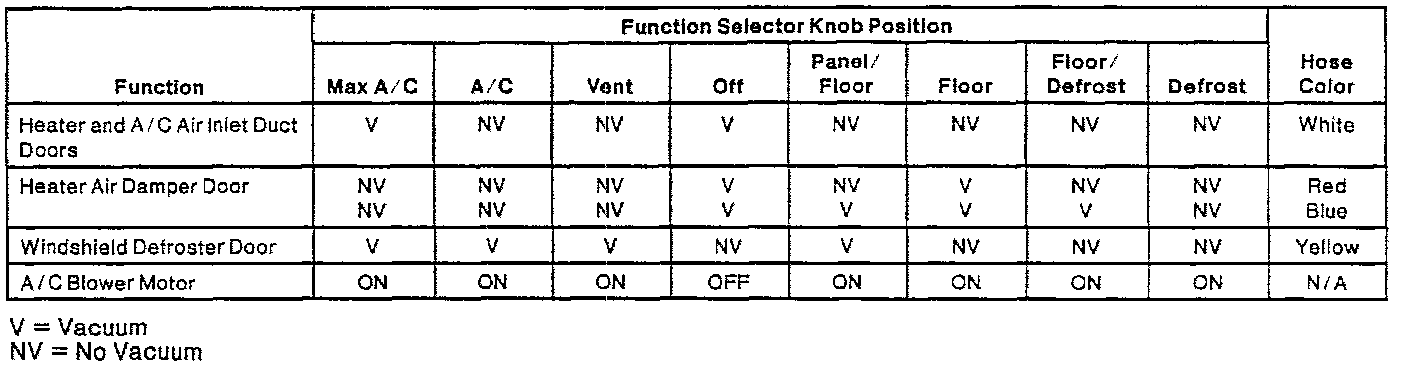

A/C Vacuum Control Chart

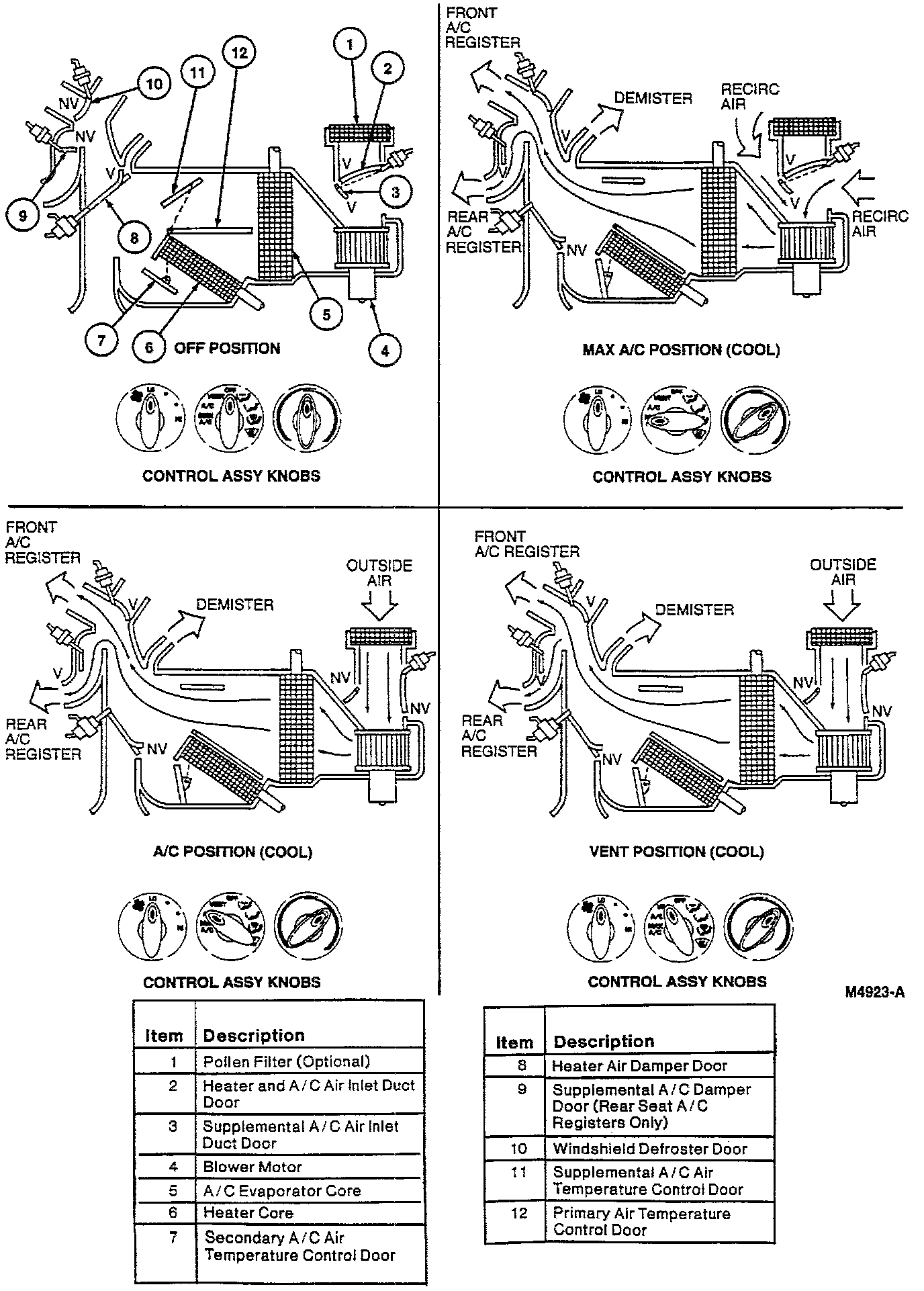

Airflow Chart 1 - OFF, MAX A/C, A/C, PANEL

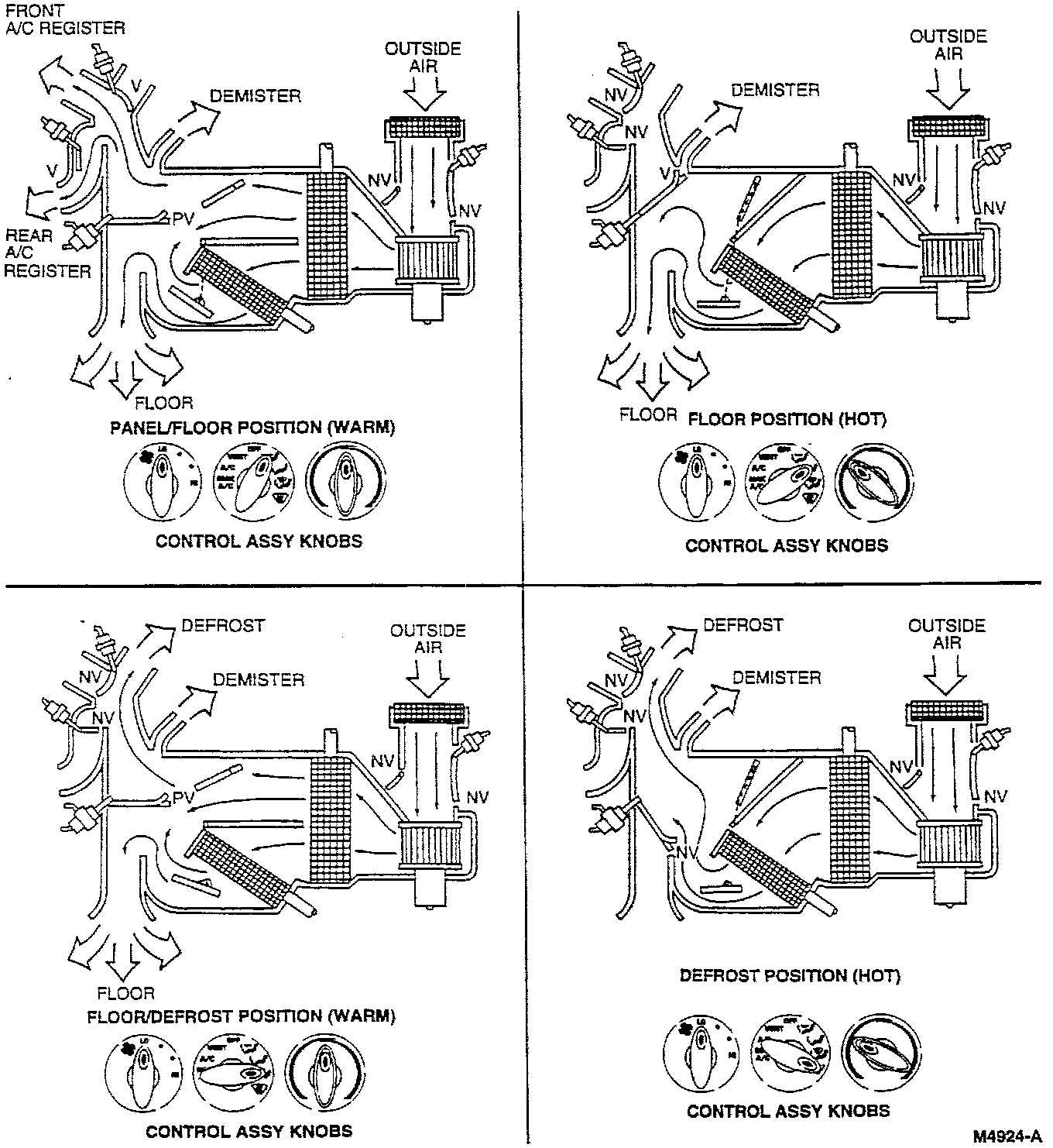

Airflow Chart 2 - PANEL/FLOOR, FLOOR, FLOOR/DEFROST, DEFROST
