Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Electronic Climate Control >> K: Cold Engine Blower Control-No Codes >> K1-K3

K1-K3

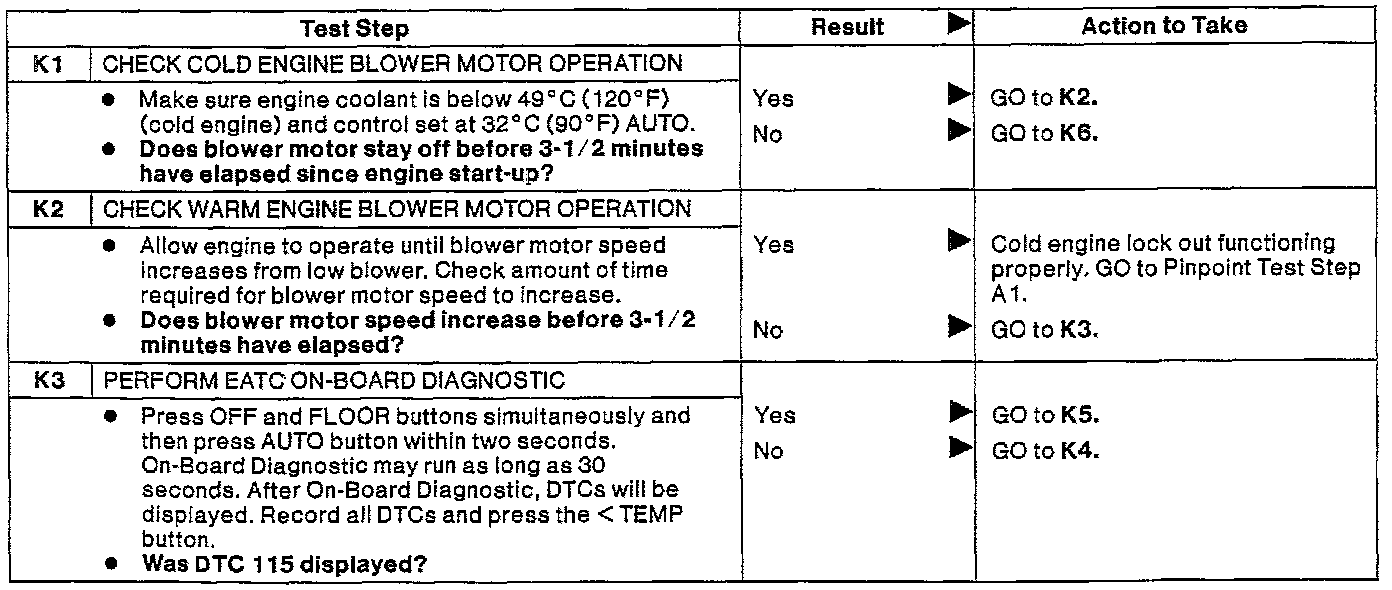

Cold Engine Blower Control - No Codes (Test Steps K1-K3):
