Sable V6-183 3.0L DOHC VIN S MFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests Electronic Climate Control
>>
F: Heater Blower Motor Does Not Run
>>
F1-F2
F1-F2

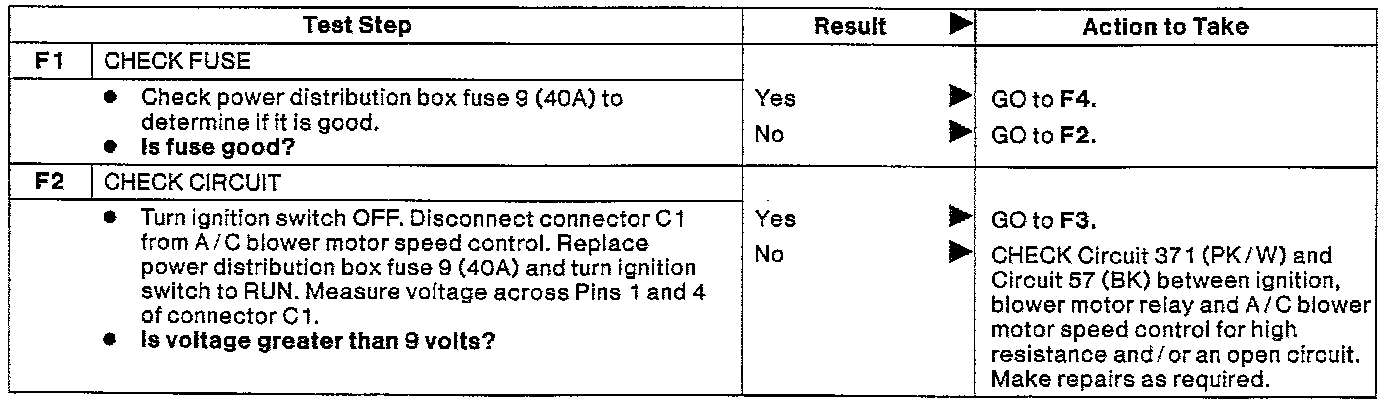

Heater Blower Motor Does Not Run (Test Steps F1-F2):
