Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Electronic Climate Control >> D: Inoperative, Intermitant, or Improper Operation >> D6-D10

D6-D10

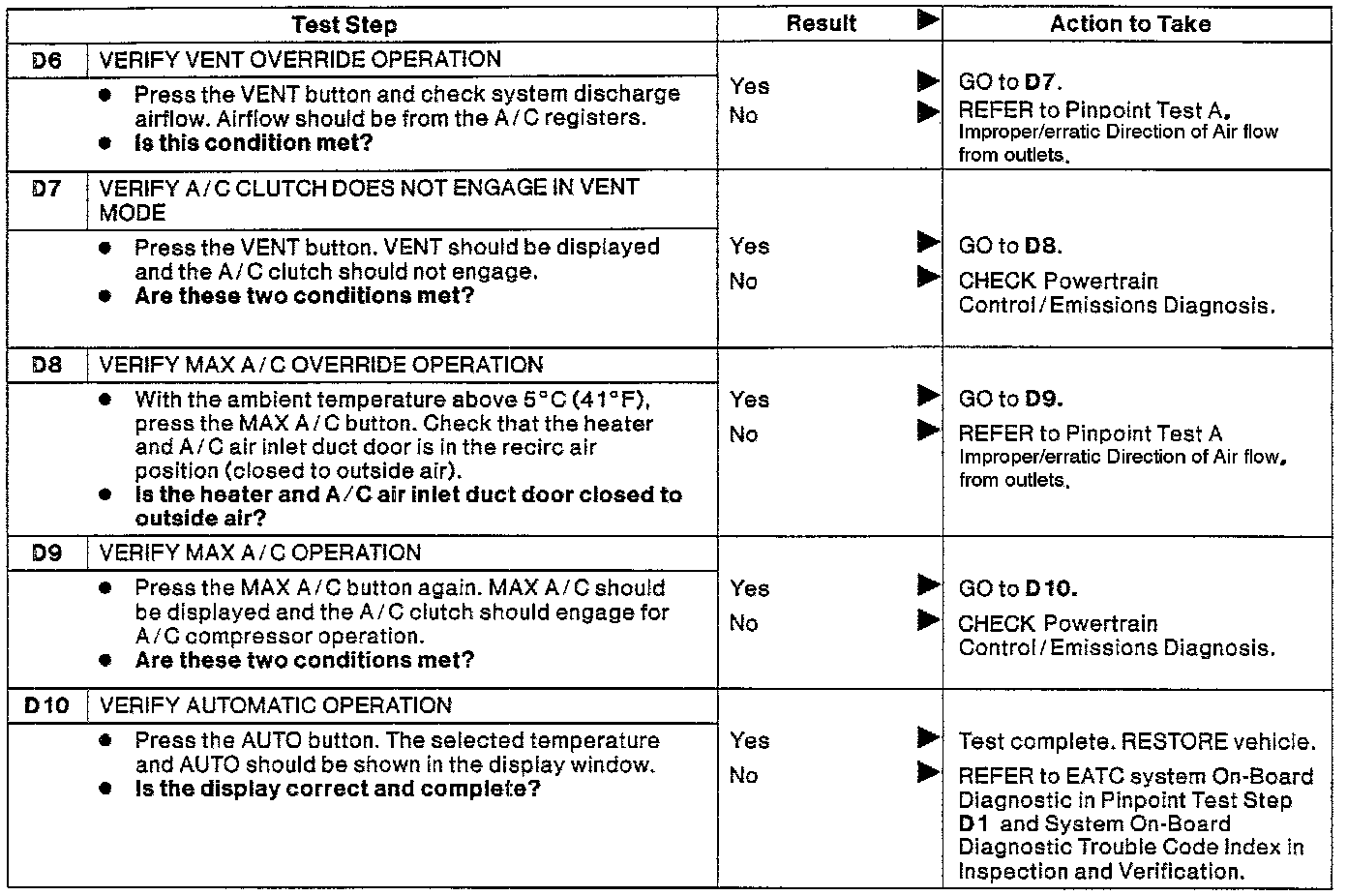

Inoperative, Intermitant, or Improper Operation (Test Steps D6-D10):
