Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Electronic Climate Control >> A: EATC Inside Temperature Sensor Open/Shorted >> A2-A8

A2-A8

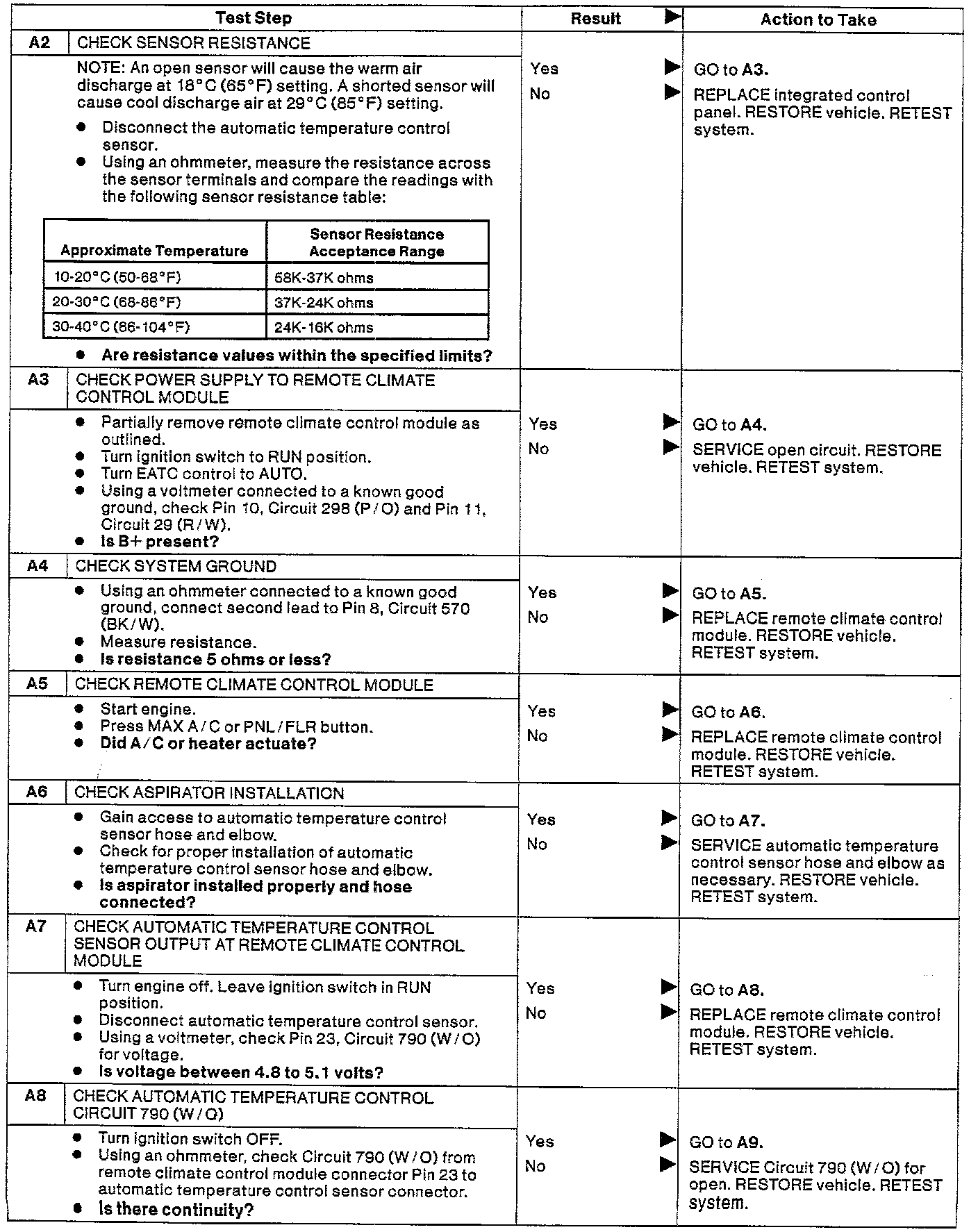

EATC Inside Temperature Sensor Open/Shorted (Test Steps A2-A8):
