Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1261: Sunload Sensor Shorted >> Test Steps B1261-1-5

Test Steps B1261-1-5

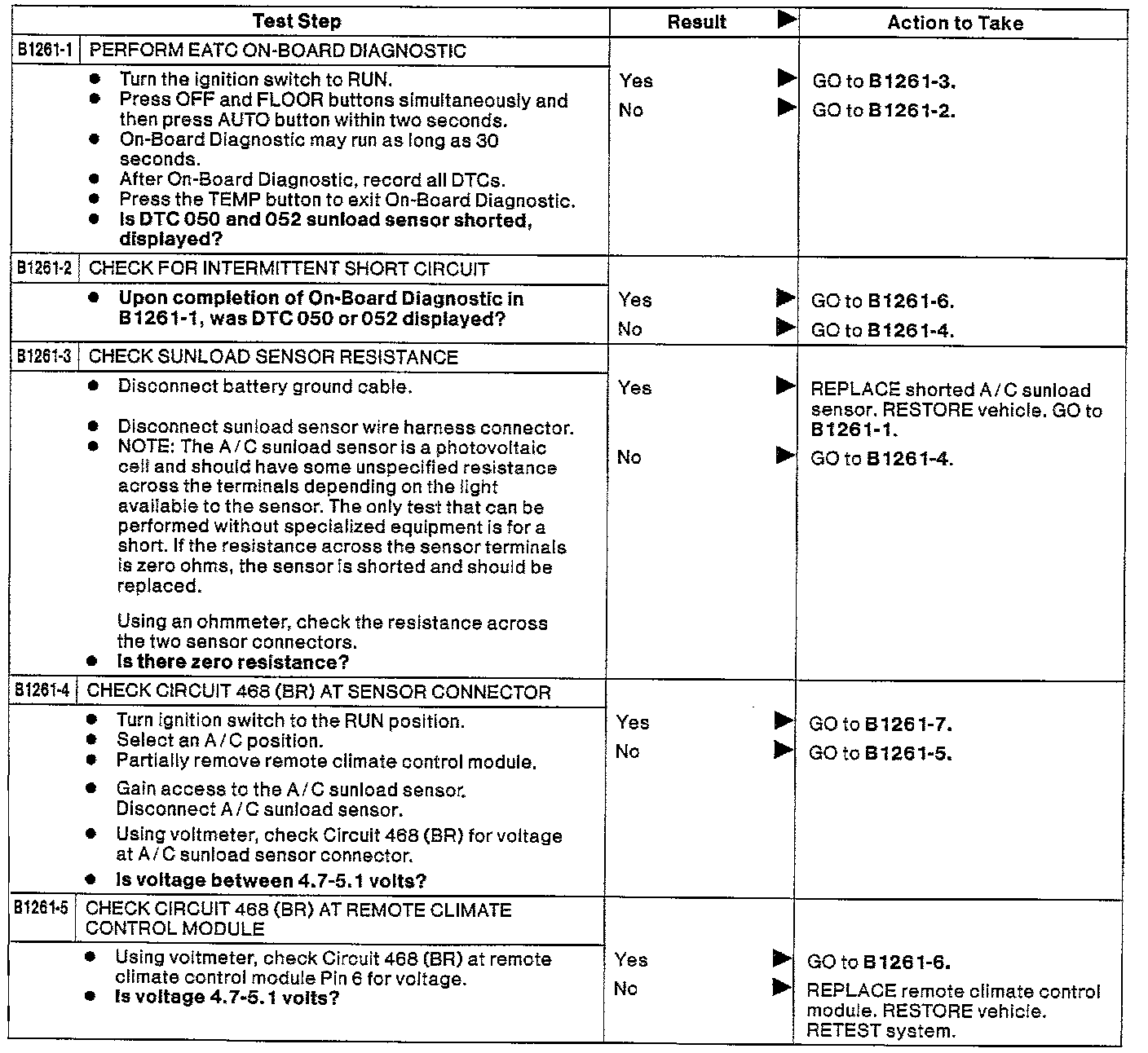

Sunload Sensor Shorted (Test Steps B1261-1 - B1261-5):
