Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1249: A/C Door Actuator Motor or Wiring >> Test Steps B1249-4-9

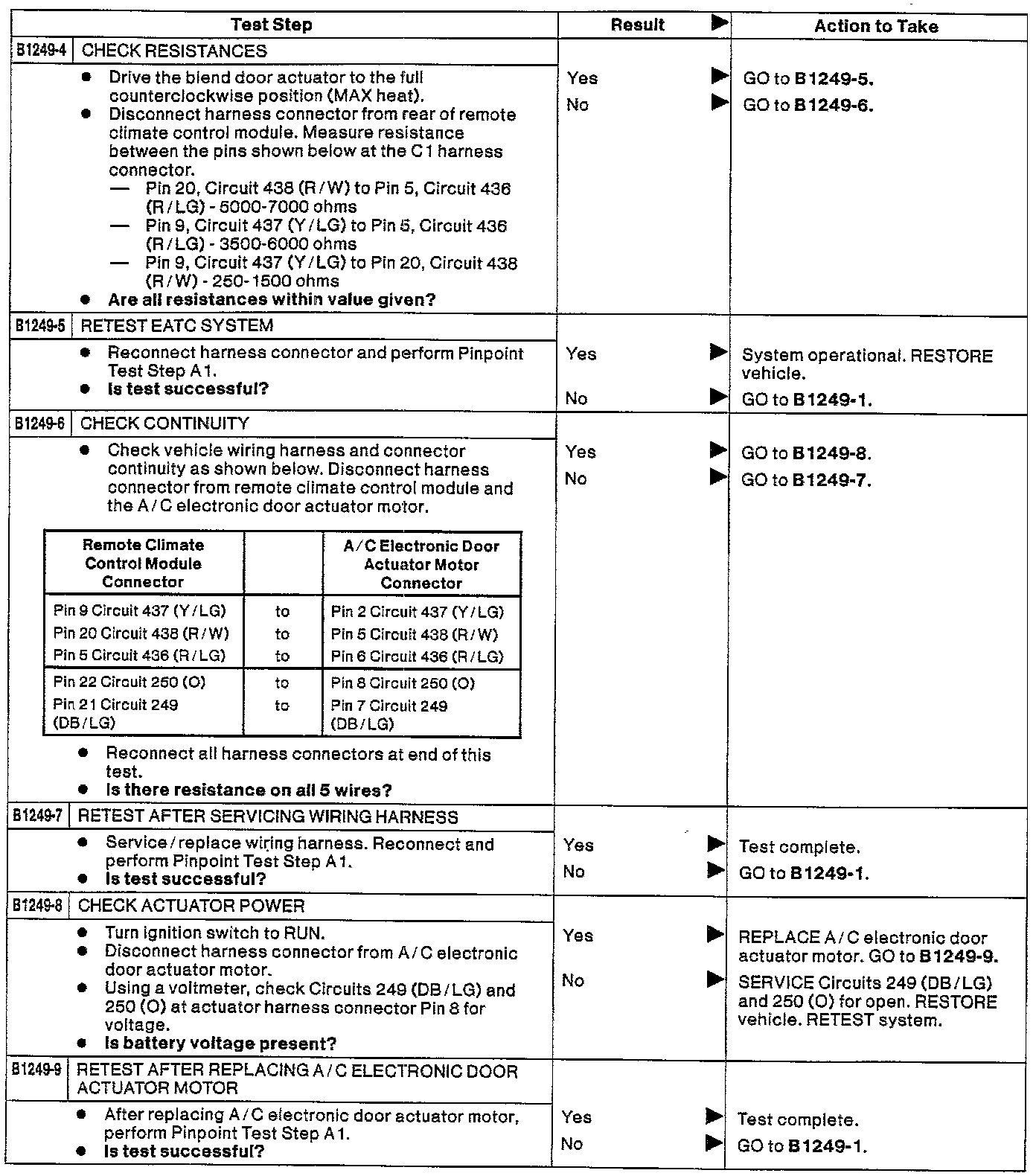

Test Steps B1249-4-9

A/C Door Actuator Motor or Wiring (Test Steps B1249-4 - B1249-9):
