Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1249: A/C Door Actuator Motor or Wiring >> Test Steps B1249-1-3

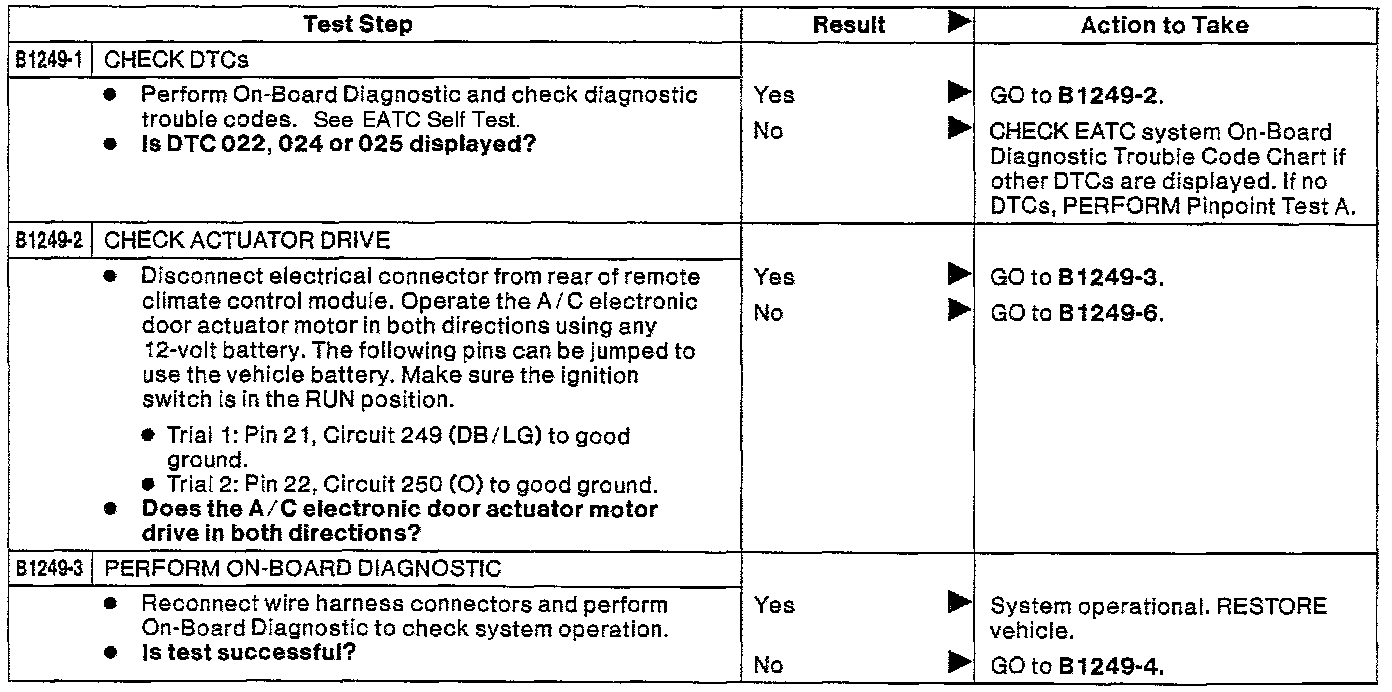

Test Steps B1249-1-3

A/C Door Actuator Motor or Wiring (Test Steps B1249-1 - B1249-3):
