Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> B Code Charts >> B1239: A/C Door Actuator Motor Shorted

B1239: A/C Door Actuator Motor Shorted

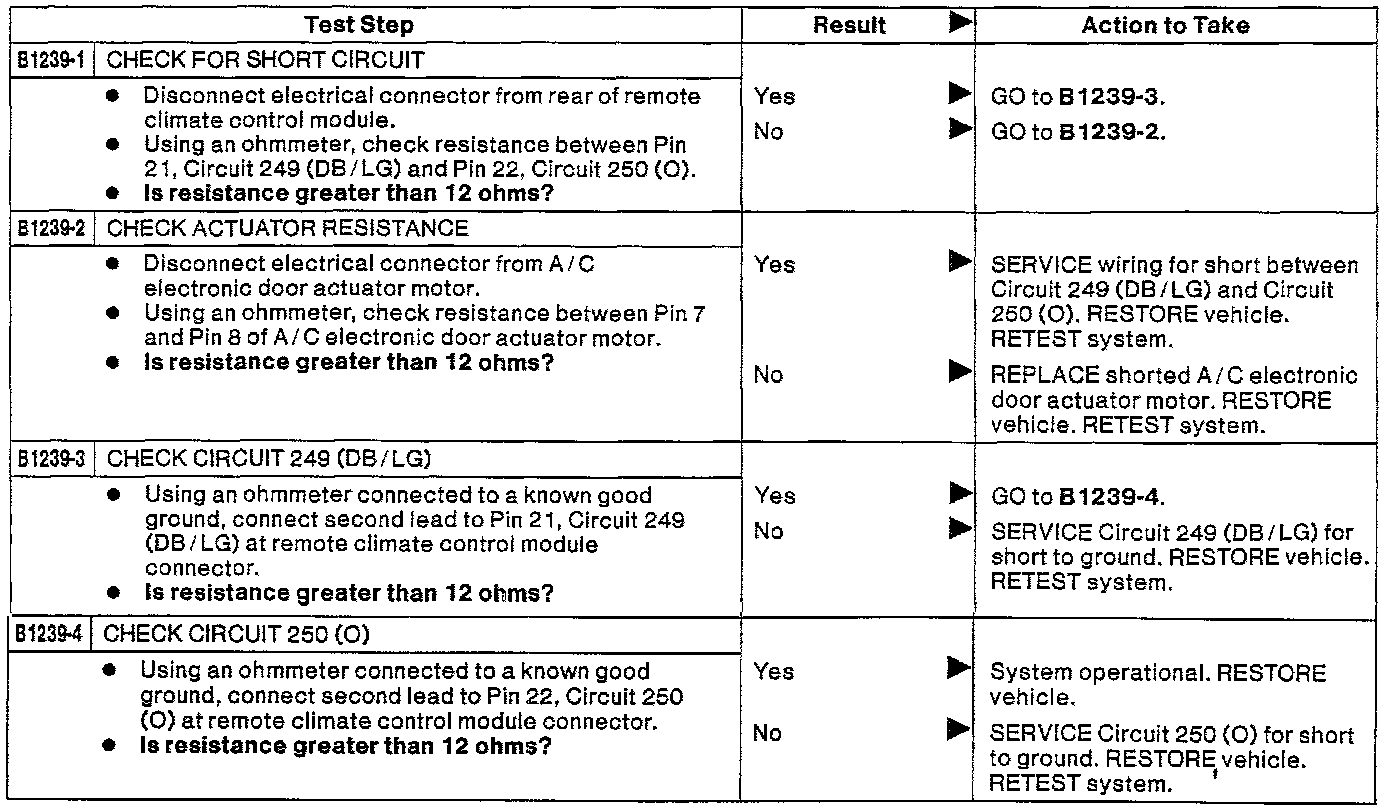

A/C Door Actuator Motor Shorted (Test Steps B1239-1 - B1239-4):
