Mercury
>>
1996
>>
Sable V6-183 3.0L DOHC VIN S MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
System Diagram
>>
Power Distribution
>>

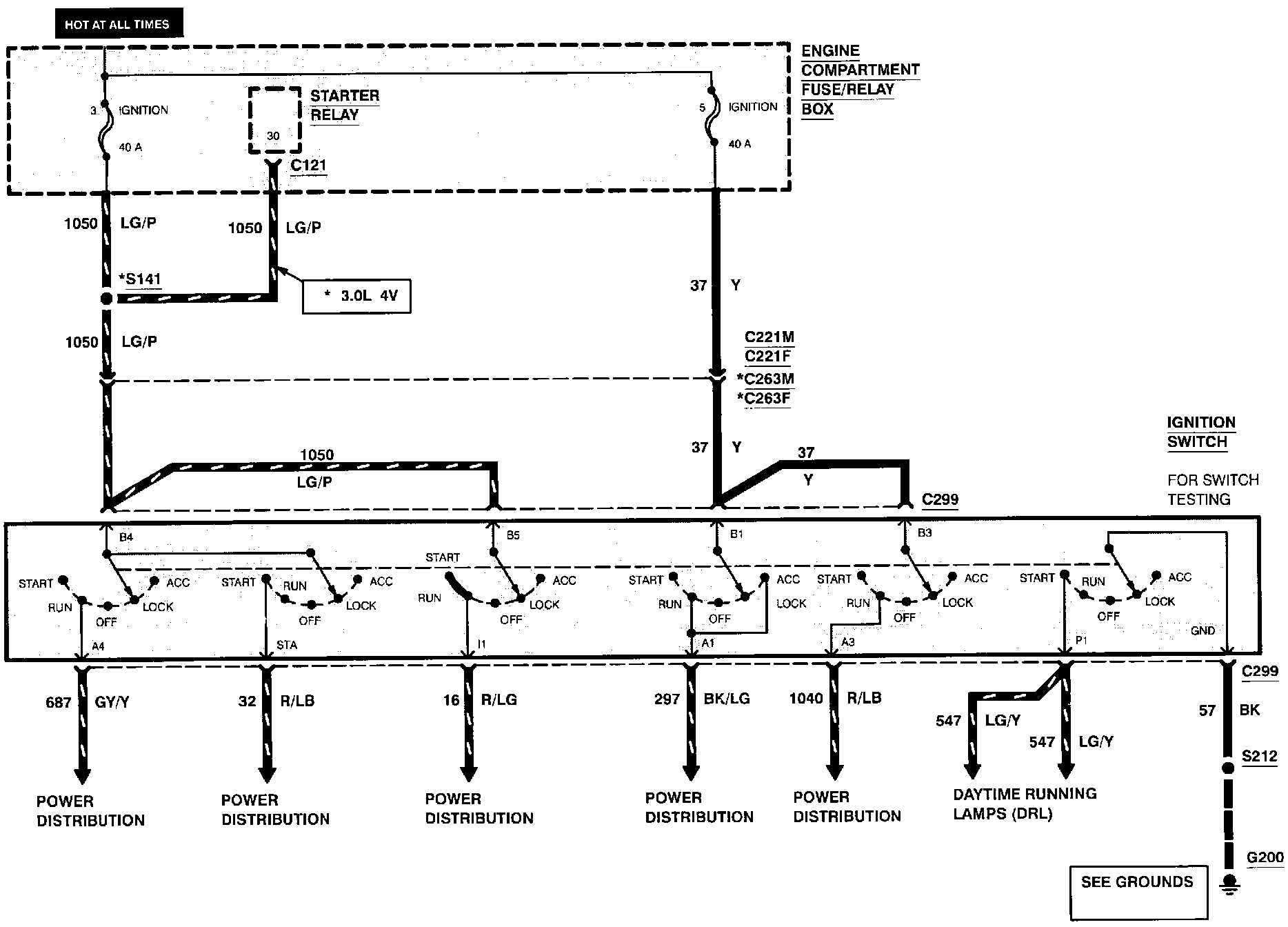

Engine Compartment Fuse/Relay Box
>>
Fuse IGNITION
Fuse IGNITION
Fuse IGNITION
- protects the following circuits:
^
Ignition Switch
^
Starter Relay

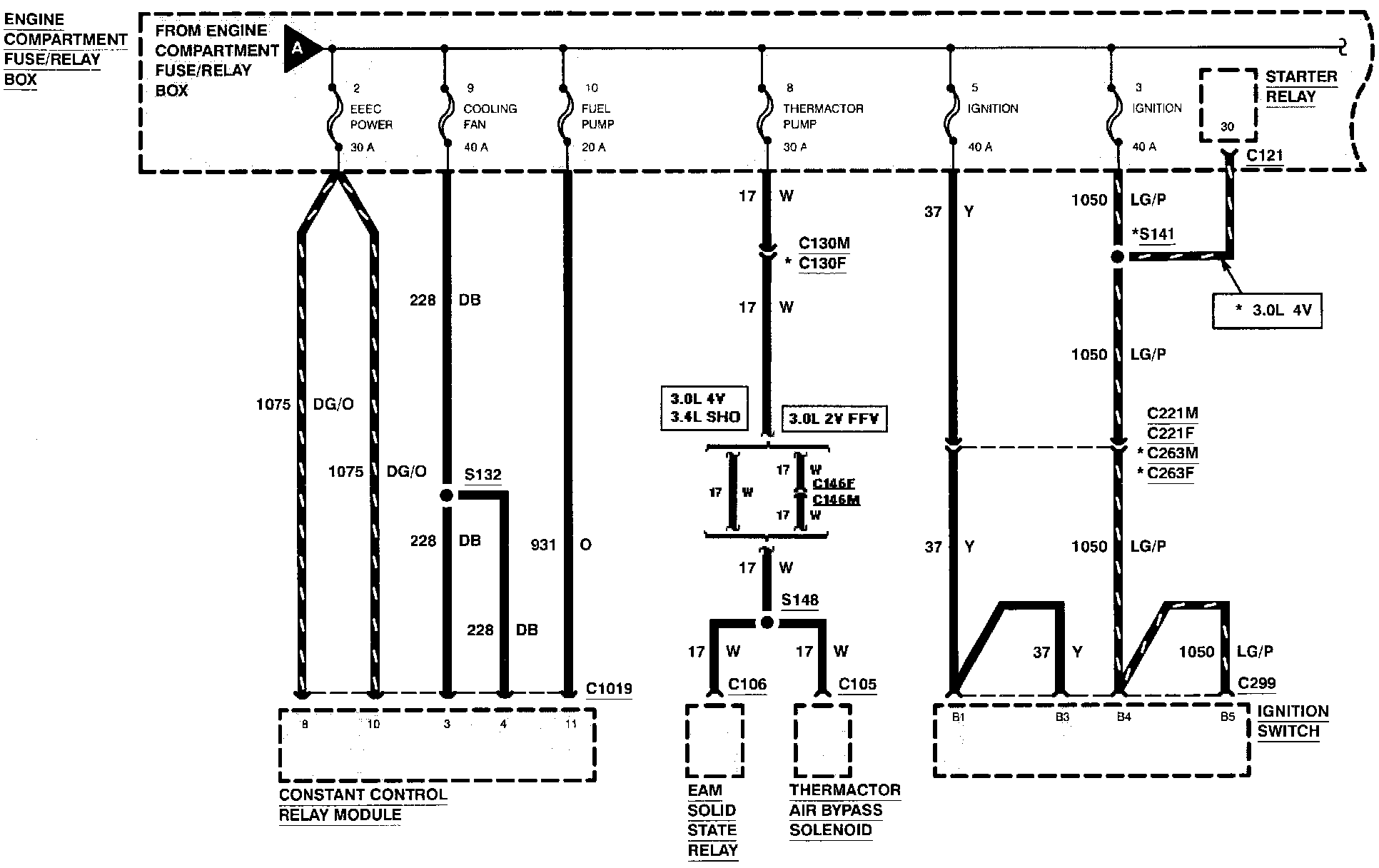

Power Distribution:
Power Distribution:
Power Distribution:
Power Distribution:
