System Diagram
>>
Sedan
>>

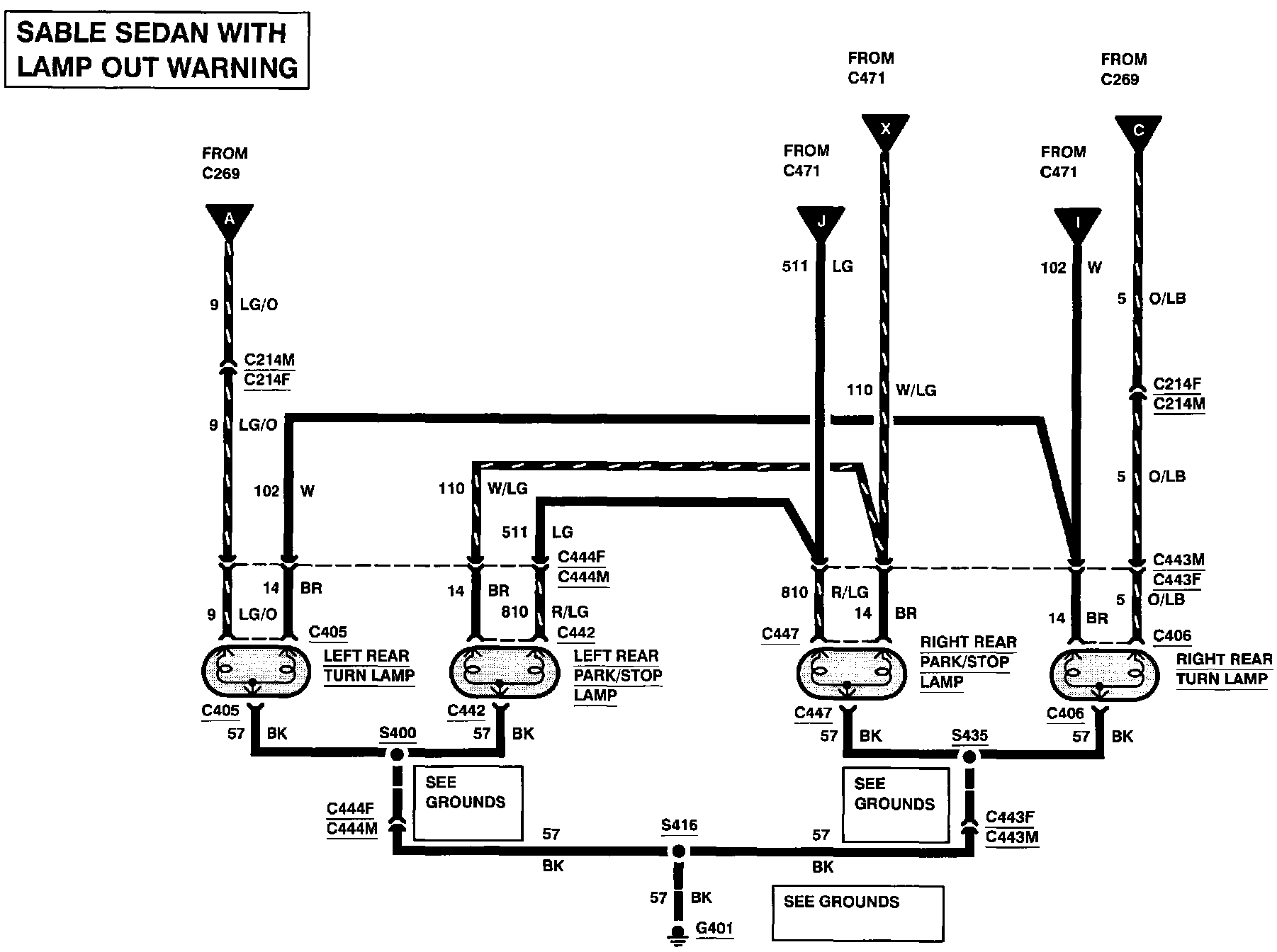

With Lamp Out Warning

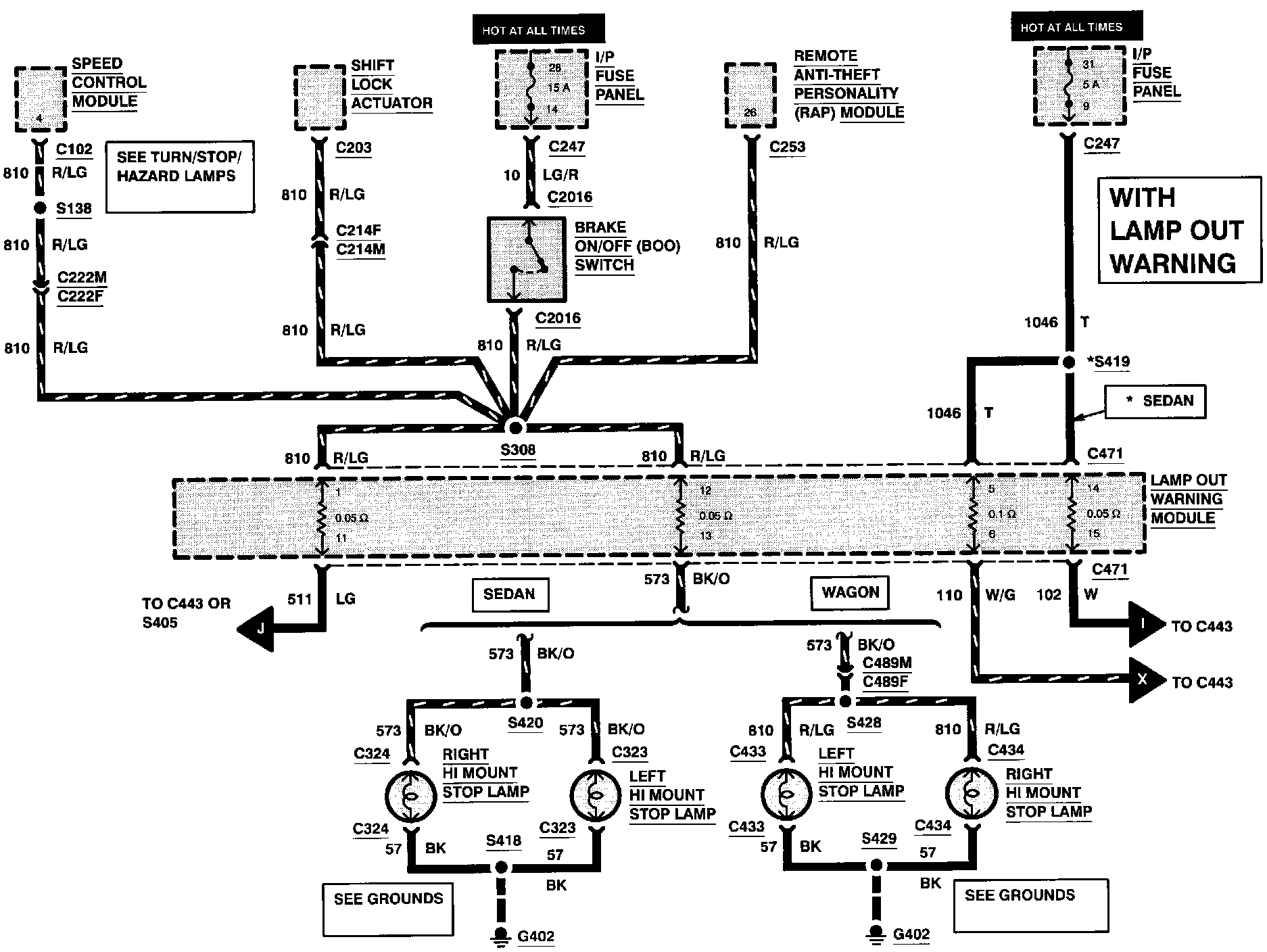

With Lamp Out Warning

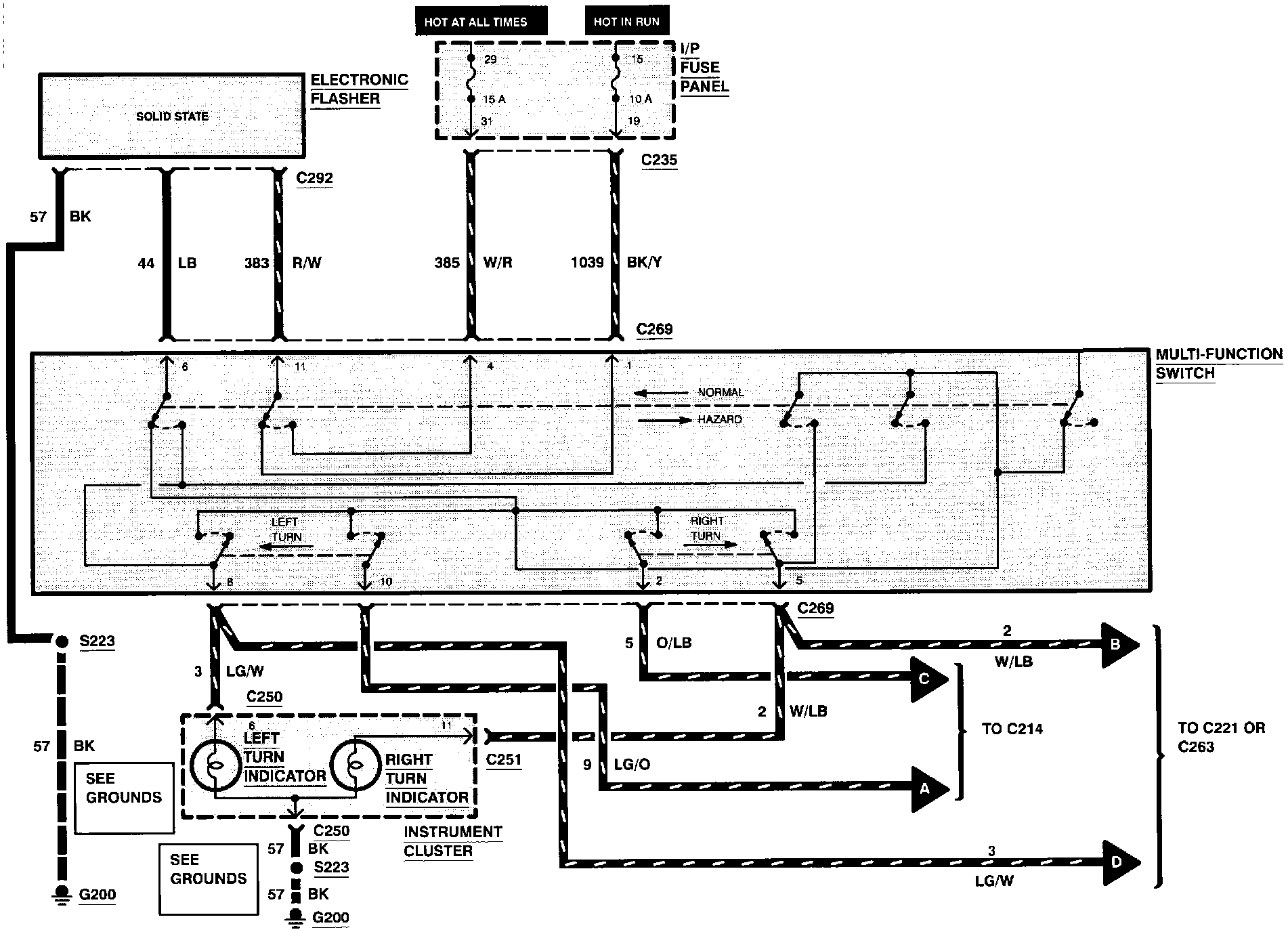

Turn/Stop/Hazard Lamps:
Turn/Stop/Hazard Lamps:
Turn/Stop/Hazard Lamps:
Turn/Stop/Hazard Lamps:
