Constant Control Relay Module
Constant Control Relay Module

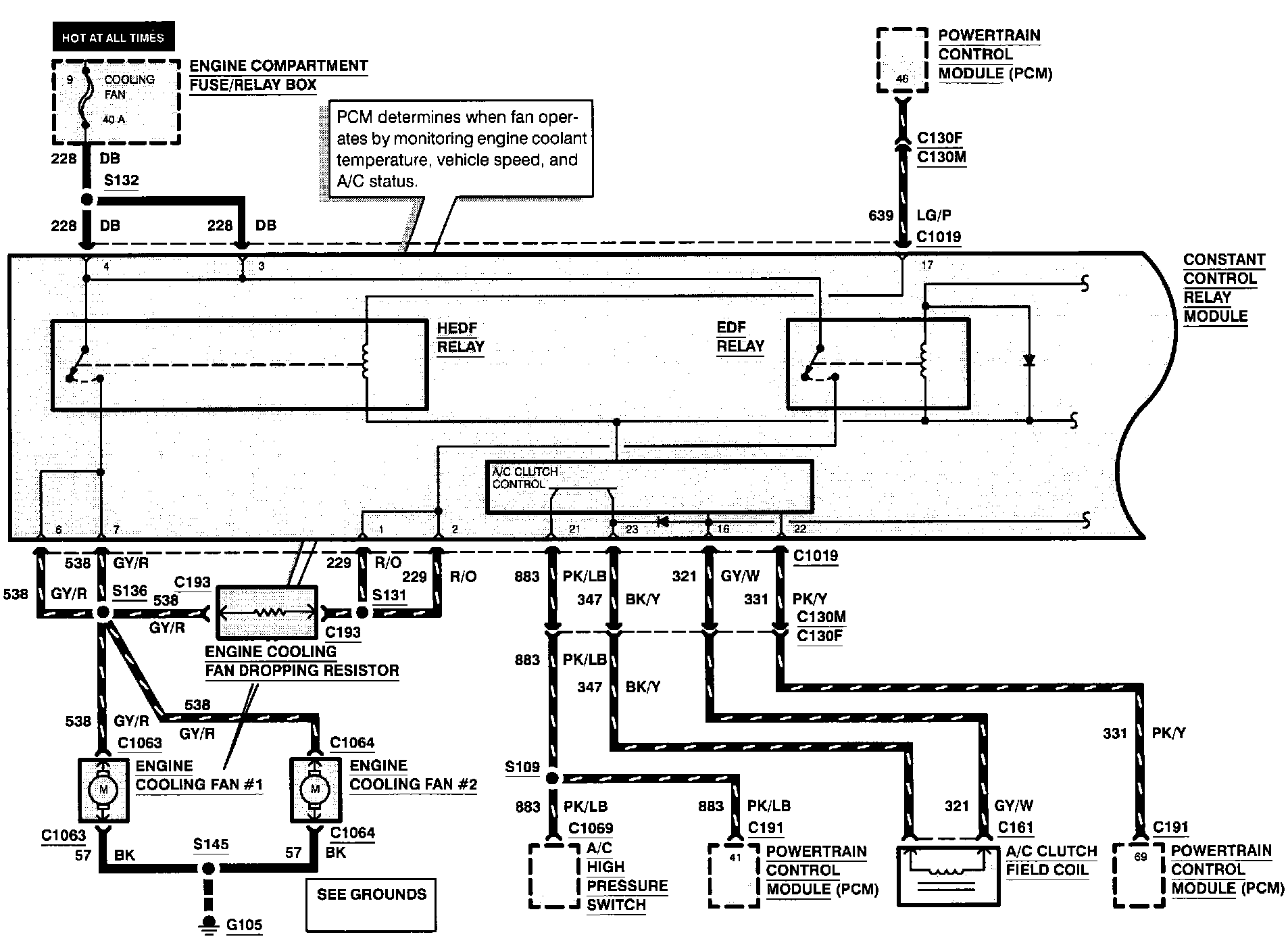

Cooling Fans - Constant Control Relay Module (Part 1 Of 2):

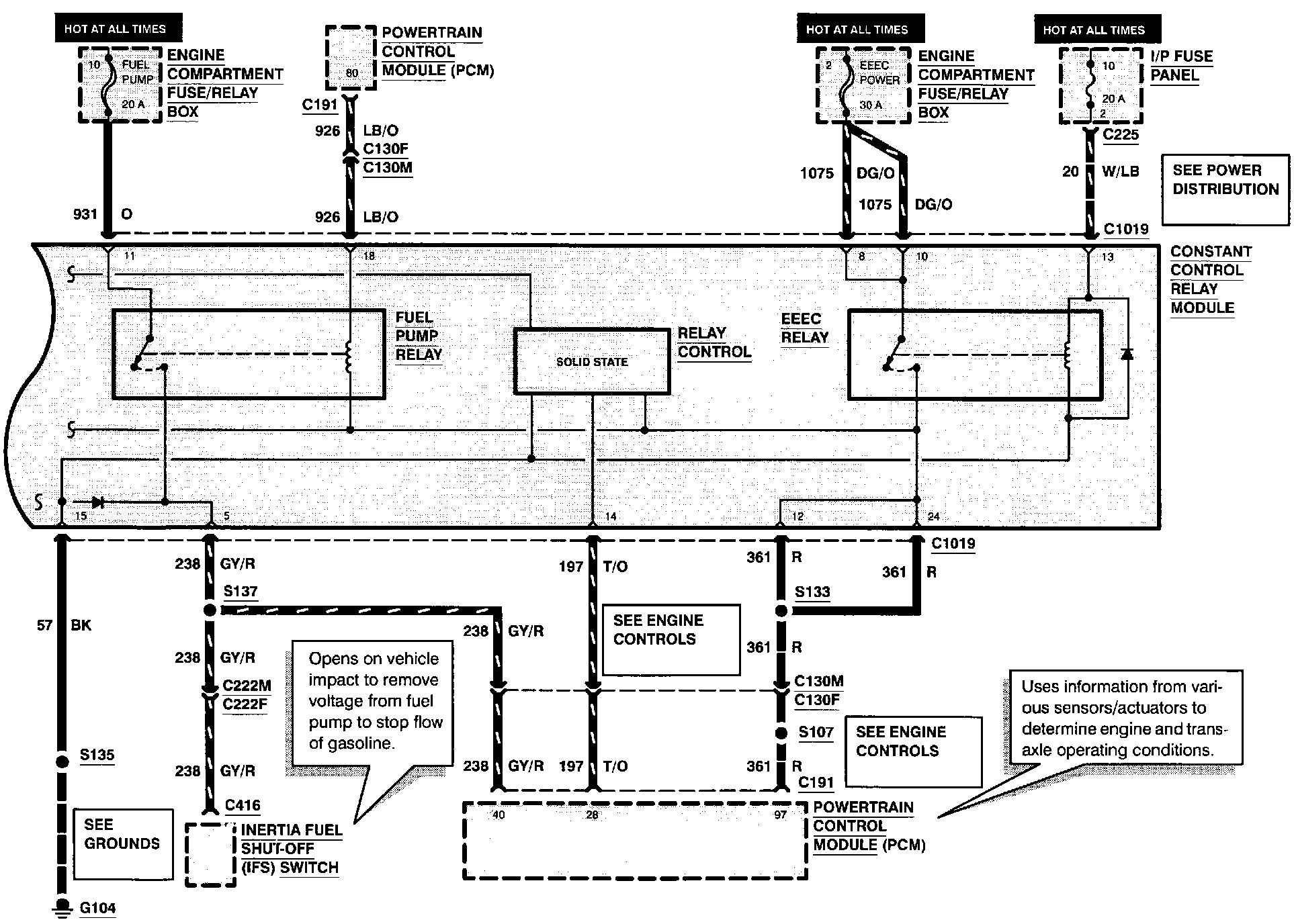

Cooling Fans - Constant Control Relay Module (Part 2 Of 2):
