Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> Electronic Climate Control Module

Electronic Climate Control Module

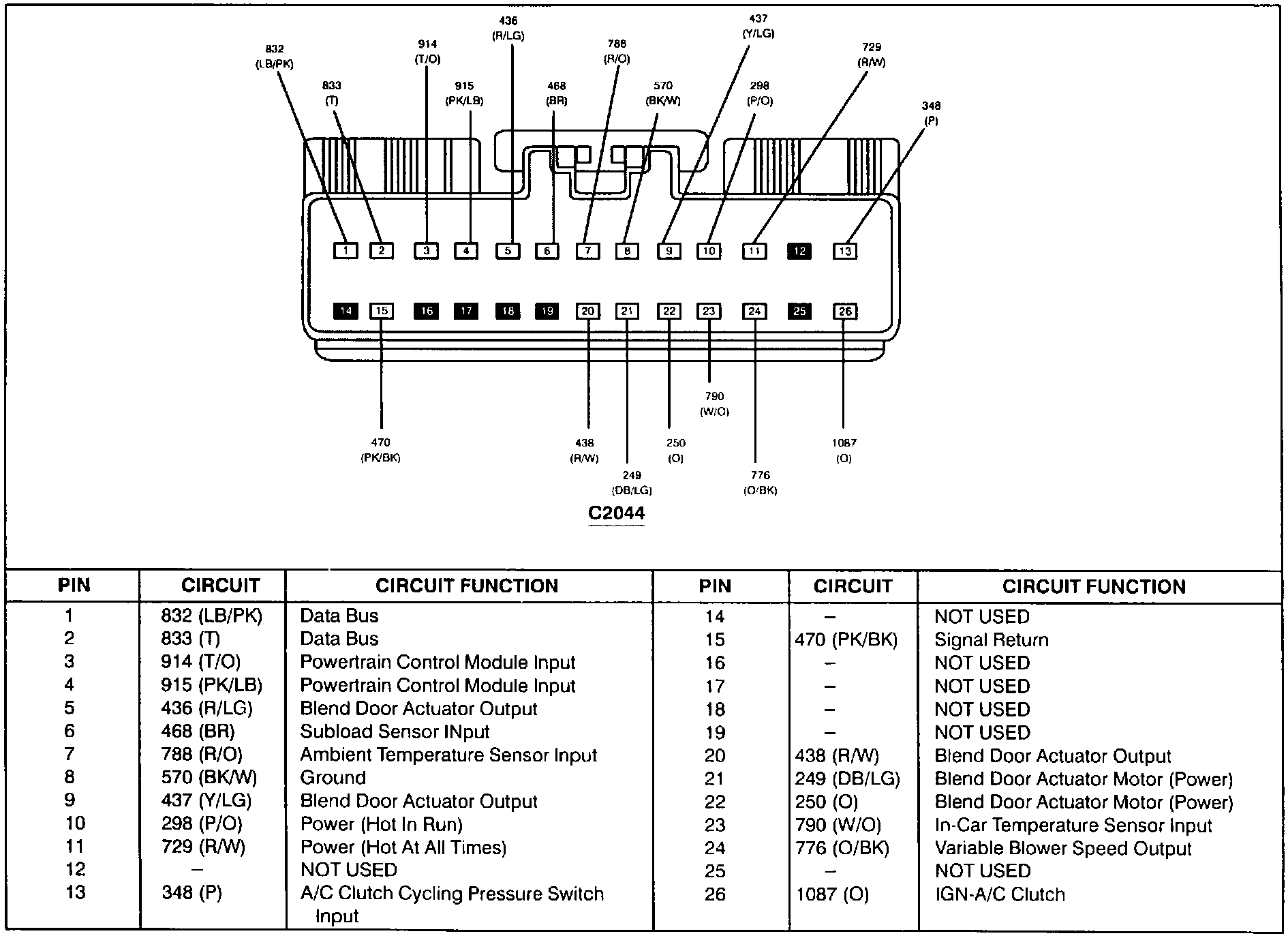

Remote Climate Control (RCC) Module Connector:
