Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> System Diagram >> Transmission Range (TR) Sensor Vehicle Harness Conn... 3.0 (2V)

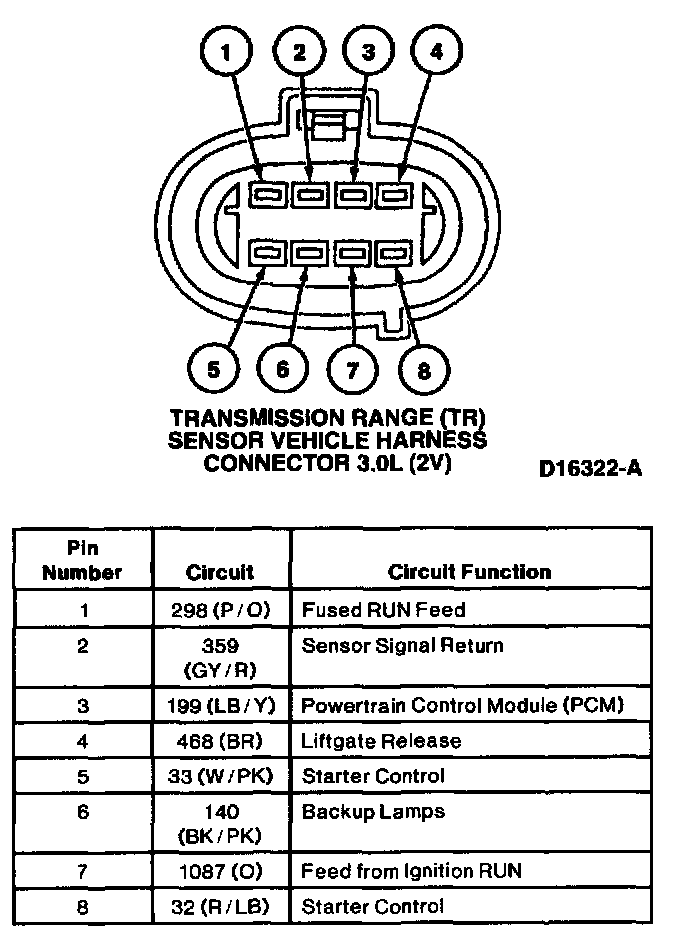

Transmission Range (TR) Sensor Vehicle Harness Conn... 3.0 (2V)
