Home >> Mercury >> 1996 >> Sable V6-183 3.0L DOHC VIN S MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> System Diagram >> Remote Anti-Theft Personality Module Connector C1

Remote Anti-Theft Personality Module Connector C1

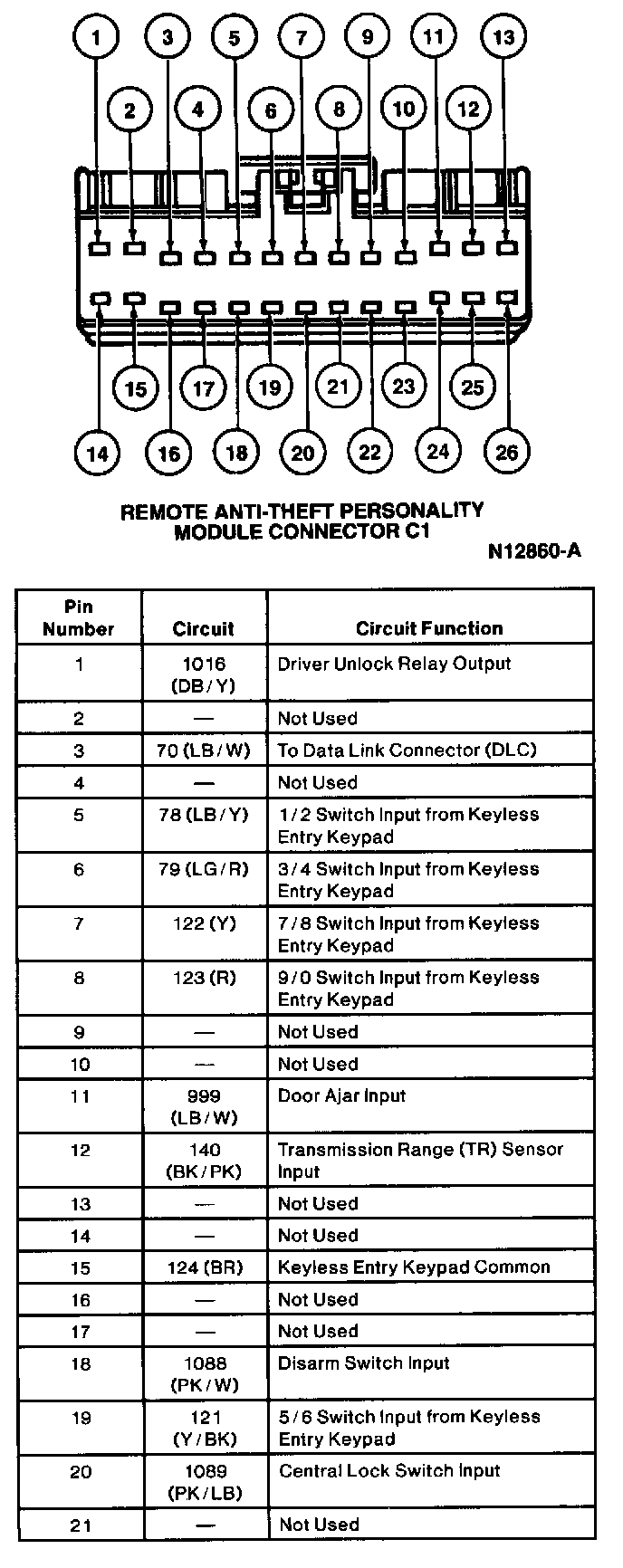

1 of 2:

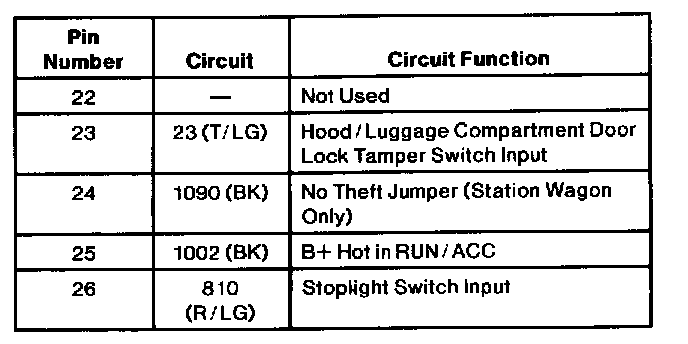

2 of 2:
